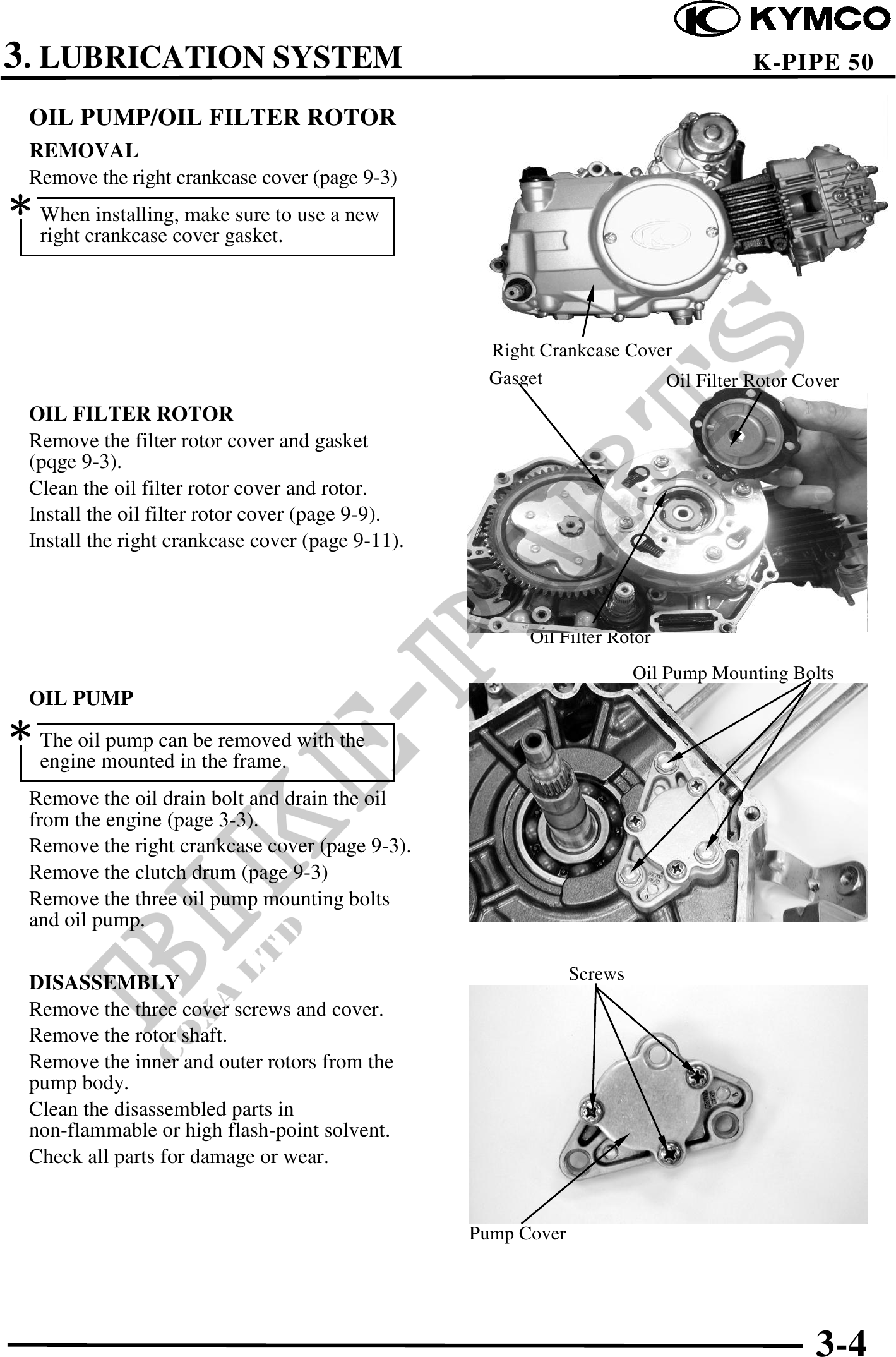

          3. LUBRICATION SYSTEM                                                                 K-PIPE 50

  OIL PUMP/OIL FILTER ROTOR
  REMOVAL
  Remove the right crankcase cover (page 9-3)
 When installing, make sure to use a new
   right crankcase cover gasket.




                                                     Right Crankcase Cover
                                                     Gasget              Oil Filter Rotor Cover
  OIL FILTER ROTOR
  Remove the filter rotor cover and gasket
  (pqge 9-3).
  Clean the oil filter rotor cover and rotor.
  Install the oil filter rotor cover (page 9-9).
  Install the right crankcase cover (page 9-11).



                                                         Oil Filter Rotor
                                                                         Oil Pump Mounting Bolts
  OIL PUMP
 The oil pump can be removed with the
   engine mounted in the frame.
  Remove the oil drain bolt and drain the oil
  from the engine (page 3-3).
  Remove the right crankcase cover (page 9-3).
  Remove the clutch drum (page 9-3)
  Remove the three oil pump mounting bolts
  and oil pump.

  DISASSEMBLY                                                   Screws
  Remove the three cover screws and cover.
  Remove the rotor shaft.
  Remove the inner and outer rotors from the
  pump body.
  Clean the disassembled parts in
  non-flammable or high flash-point solvent.
  Check all parts for damage or wear.


                                                   Pump Cover
