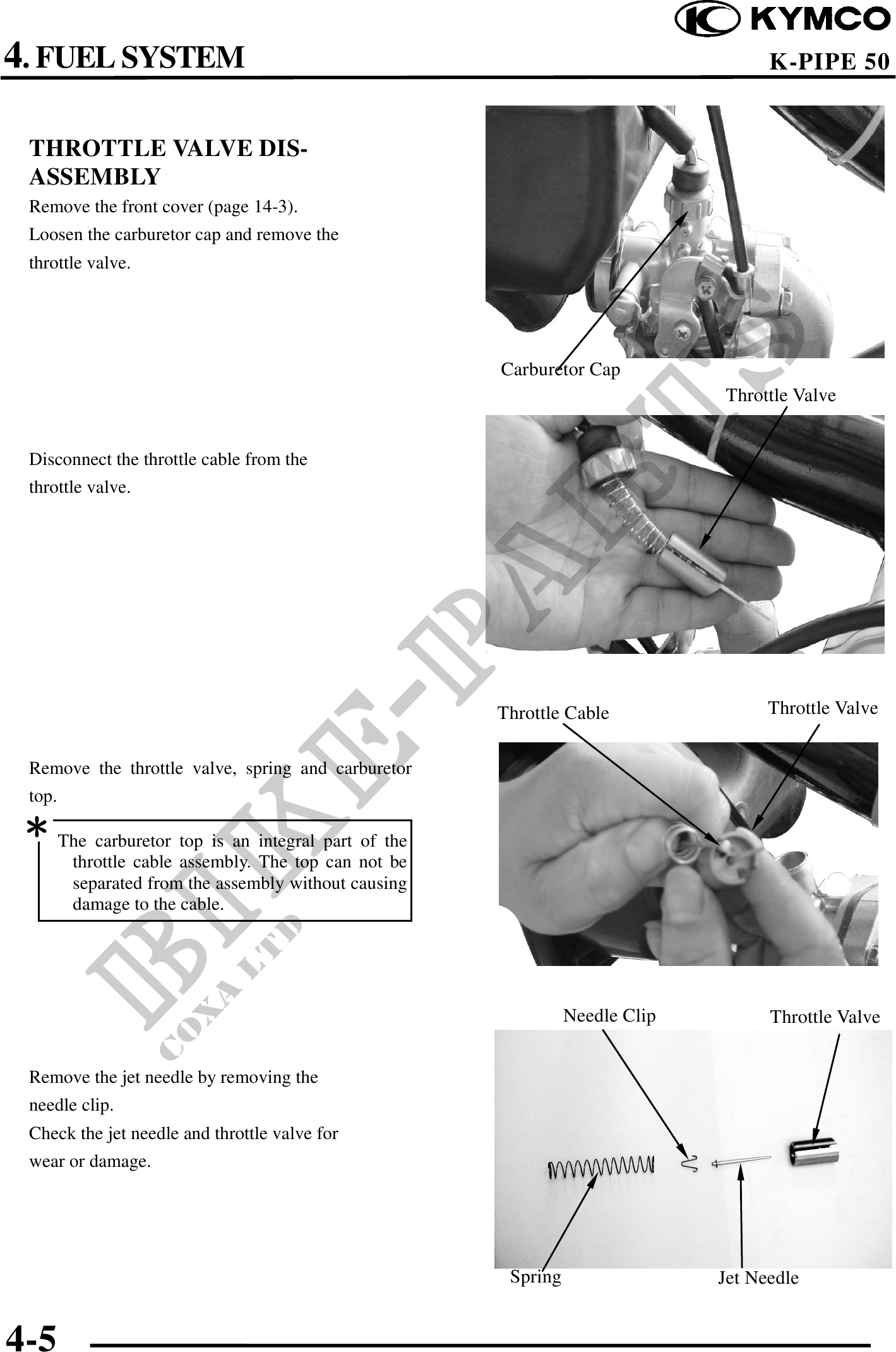

4. FUEL SYSTEM K-PIPE 50
THROTTLE VALVE DIS-
ASSEMBLY
Remove the front cover (page 14-3).
Loosen the carburetor cap and remove the
throttle valve.
Carburetor Cap
Throttle Valve
Disconnect the throttle cable from the
throttle valve.
Throttle Cable Throttle Valve
Remove the throttle valve, spring and carburetor
top.
The carburetor top is an integral part of the
throttle cable assembly. The top can not be
separated from the assembly without causing
damage to the cable.
Needle Clip Throttle Valve
Remove the jet needle by removing the
needle clip.
Check the jet needle and throttle valve for
wear or damage.
Spring Jet Needle
4-5
