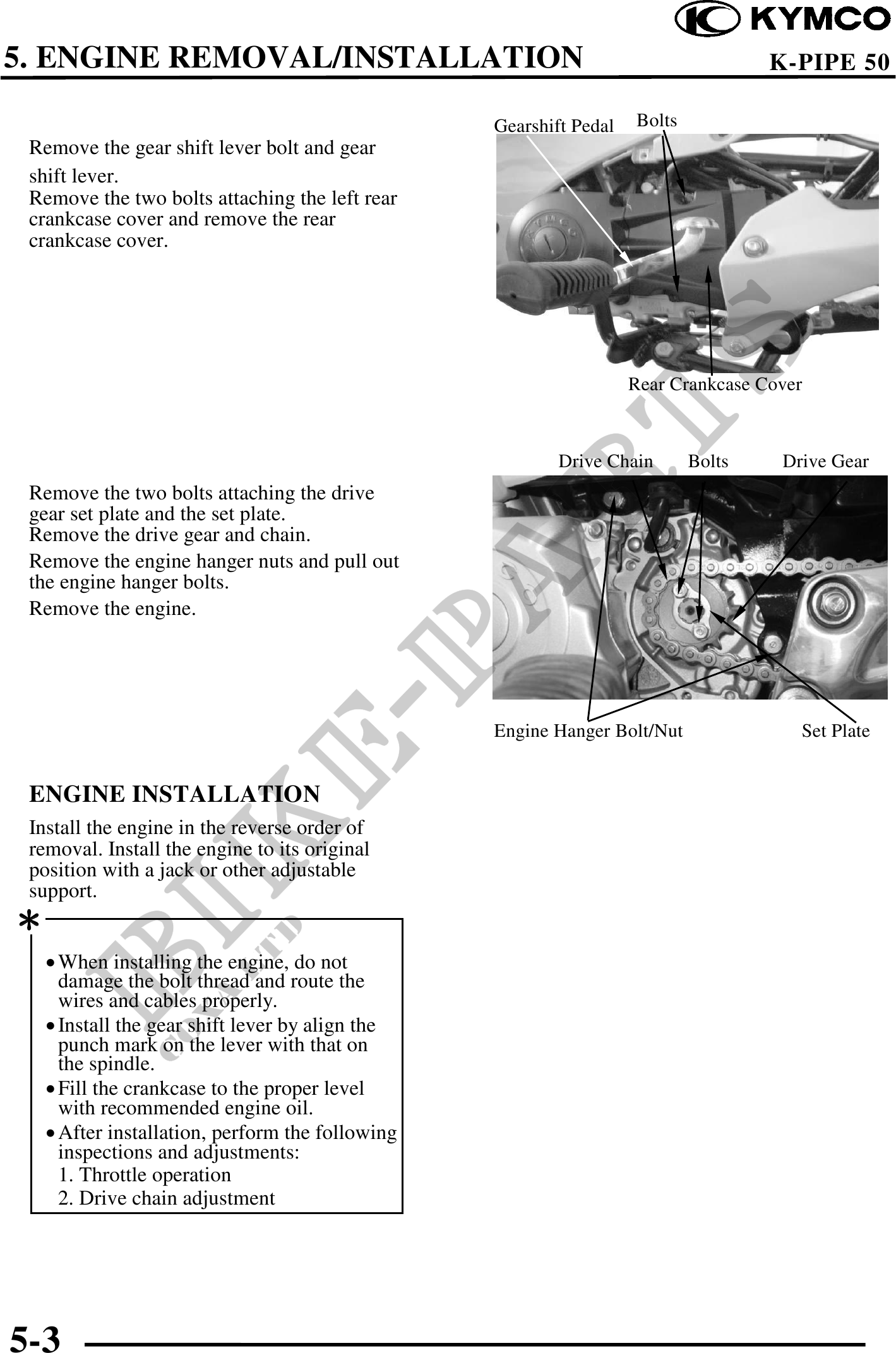

          5. ENGINE REMOVAL/INSTALLATION                                                    K-PIPE 50

                                                Gearshift Pedal   Bolts
 Remove the gear shift lever bolt and gear
 shift lever.
 Remove the two bolts attaching the left rear
 crankcase cover and remove the rear
 crankcase cover.




                                                                  Rear Crankcase Cover


                                                        Drive Chain       Bolts    Drive Gear
 Remove the two bolts attaching the drive
 gear set plate and the set plate.
 Remove the drive gear and chain.
 Remove the engine hanger nuts and pull out
 the engine hanger bolts.
 Remove the engine.




                                                Engine Hanger Bolt/Nut               Set Plate


 ENGINE INSTALLATION
 Install the engine in the reverse order of
 removal. Install the engine to its original
 position with a jack or other adjustable
 support.

    When installing the engine, do not
    damage the bolt thread and route the
    wires and cables properly.
    Install the gear shift lever by align the
    punch mark on the lever with that on
    the spindle.
    Fill the crankcase to the proper level
    with recommended engine oil.
    After installation, perform the following
    inspections and adjustments:
    1. Throttle operation
    2. Drive chain adjustment




5-3
