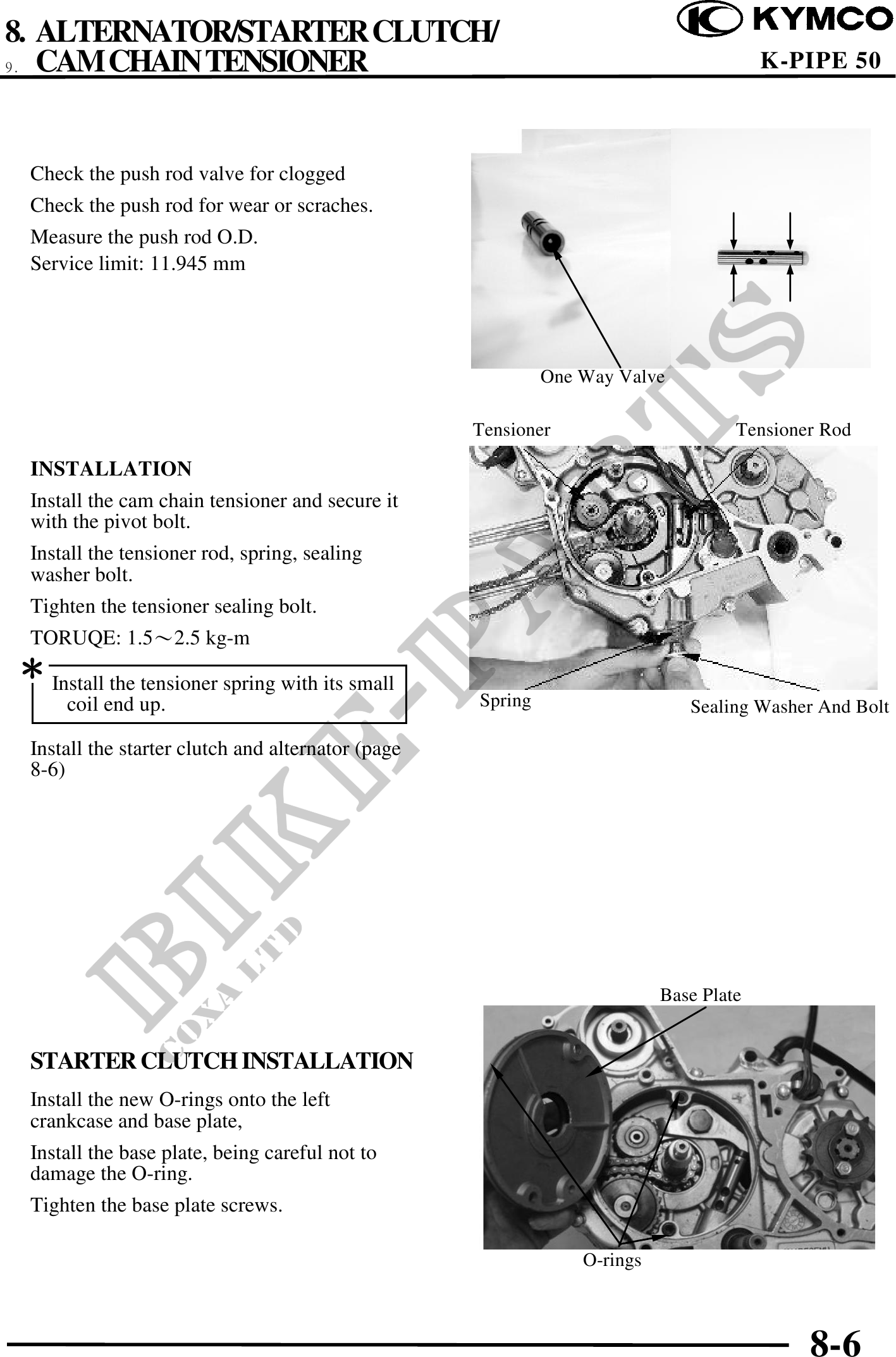

          8. ALTERNATOR/STARTER CLUTCH/
9. CAM CHAIN TENSIONER                                                                 K-PIPE 50



 Check the push rod valve for clogged
 Check the push rod for wear or scraches.
 Measure the push rod O.D.
 Service limit: 11.945 mm




                                                            One Way Valve

                                                   Tensioner                       Tensioner Rod

 INSTALLATION
 Install the cam chain tensioner and secure it
 with the pivot bolt.
 Install the tensioner rod, spring, sealing
 washer bolt.
 Tighten the tensioner sealing bolt.
 TORUQE: 1.52.5 kg-m
 Install the tensioner spring with its small
     coil end up.                                  Spring                    Sealing Washer And Bolt

 Install the starter clutch and alternator (page
 8-6)




                                                                          Base Plate


 STARTER CLUTCH INSTALLATION
 Install the new O-rings onto the left
 crankcase and base plate,
 Install the base plate, being careful not to
 damage the O-ring.
 Tighten the base plate screws.

                                                                O-rings



                                                                                           8-6
