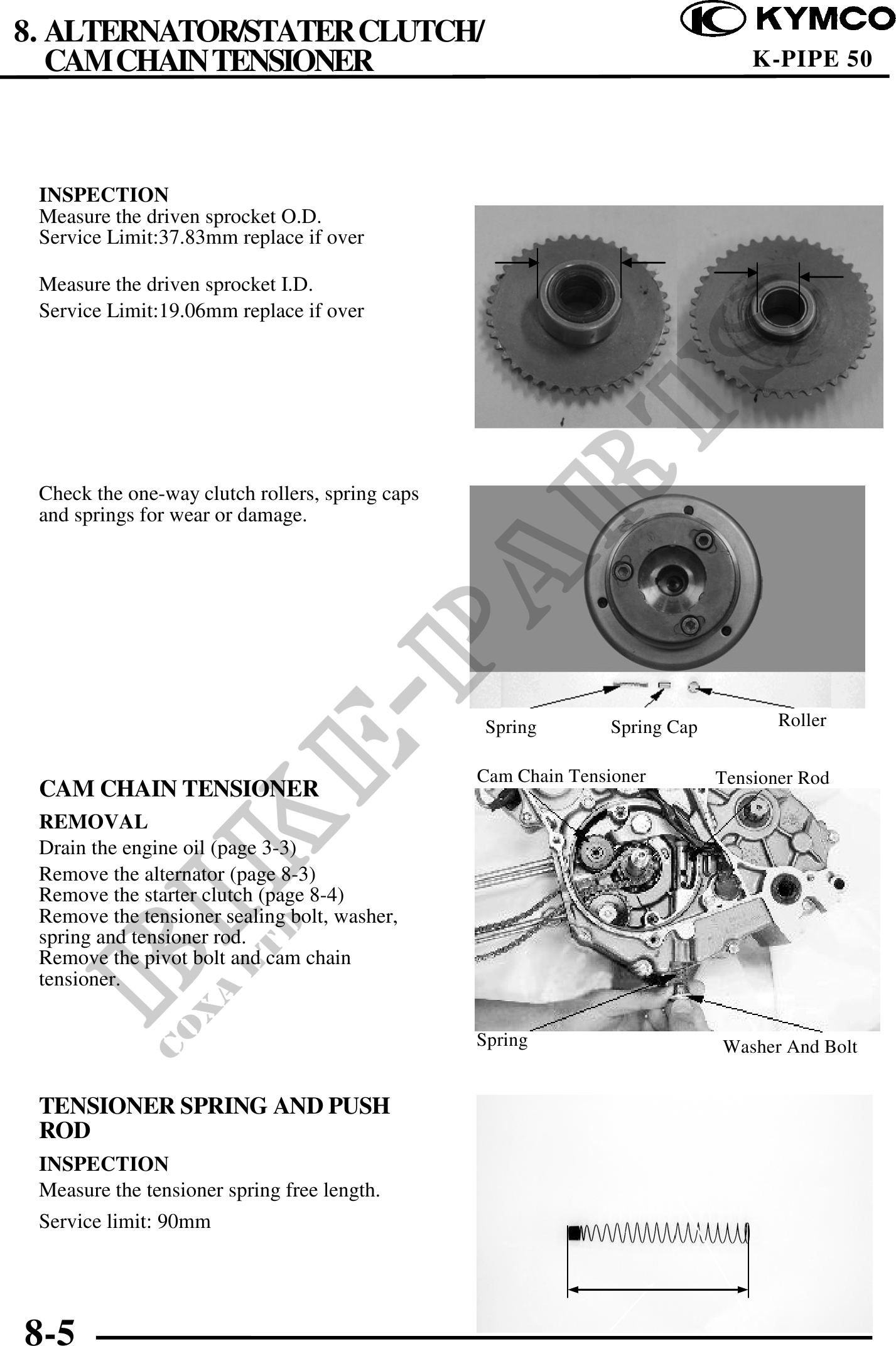

8. ALTERNATOR/STATER CLUTCH/
CAM CHAIN TENSIONER K-PIPE 50
INSPECTION
Measure the driven sprocket O.D.
Service Limit:37.83mm replace if over
Measure the driven sprocket I.D.
Service Limit:19.06mm replace if over
Check the one-way clutch rollers, spring caps
and springs for wear or damage.
Spring Spring Cap Roller
Cam Chain Tensioner Tensioner Rod
CAM CHAIN TENSIONER
REMOVAL
Drain the engine oil (page 3-3)
Remove the alternator (page 8-3)
Remove the starter clutch (page 8-4)
Remove the tensioner sealing bolt, washer,
spring and tensioner rod.
Remove the pivot bolt and cam chain
tensioner.
Spring Washer And Bolt
TENSIONER SPRING AND PUSH
ROD
INSPECTION
Measure the tensioner spring free length.
Service limit: 90mm
