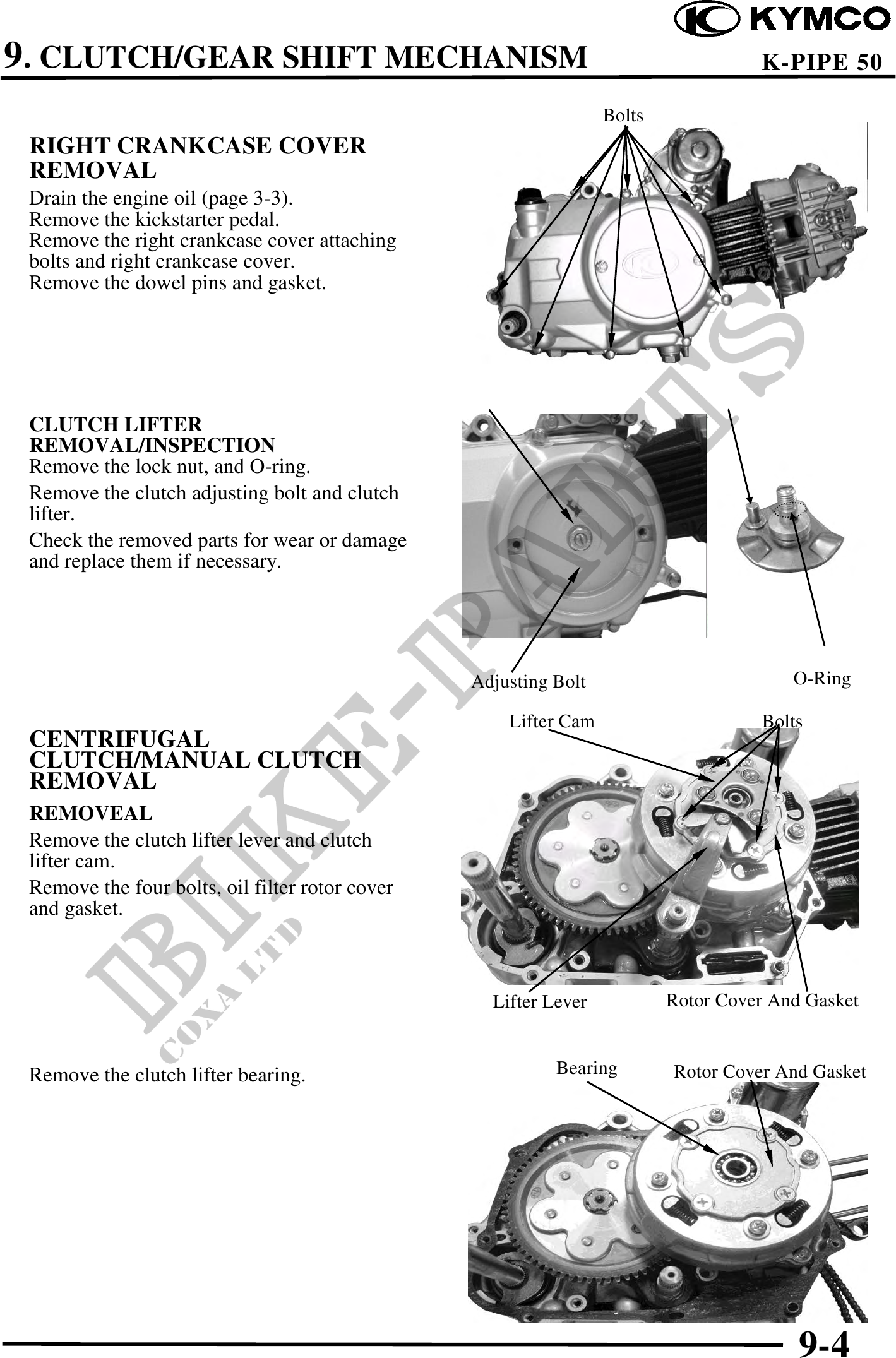

          9. CLUTCH/GEAR SHIFT MECHANISM                                                          K-PIPE 50

                                                                    Bolts
 RIGHT CRANKCASE COVER
 REMOVAL
 Drain the engine oil (page 3-3).
 Remove the kickstarter pedal.
 Remove the right crankcase cover attaching
 bolts and right crankcase cover.
 Remove the dowel pins and gasket.




 CLUTCH LIFTER                                   Nut                        Clutch Lifter
 REMOVAL/INSPECTION
 Remove the lock nut, and O-ring.
 Remove the clutch adjusting bolt and clutch
 lifter.
 Check the removed parts for wear or damage
 and replace them if necessary.




                                                 Adjusting Bolt                             O-Ring

                                                       Lifter Cam                       Bolts
 CENTRIFUGAL
 CLUTCH/MANUAL CLUTCH
 REMOVAL
 REMOVEAL
 Remove the clutch lifter lever and clutch
 lifter cam.
 Remove the four bolts, oil filter rotor cover
 and gasket.



                                                   Lifter Lever             Rotor Cover And Gasket


 Remove the clutch lifter bearing.                          Bearing          Rotor Cover And Gasket




                                                                                            9-4
