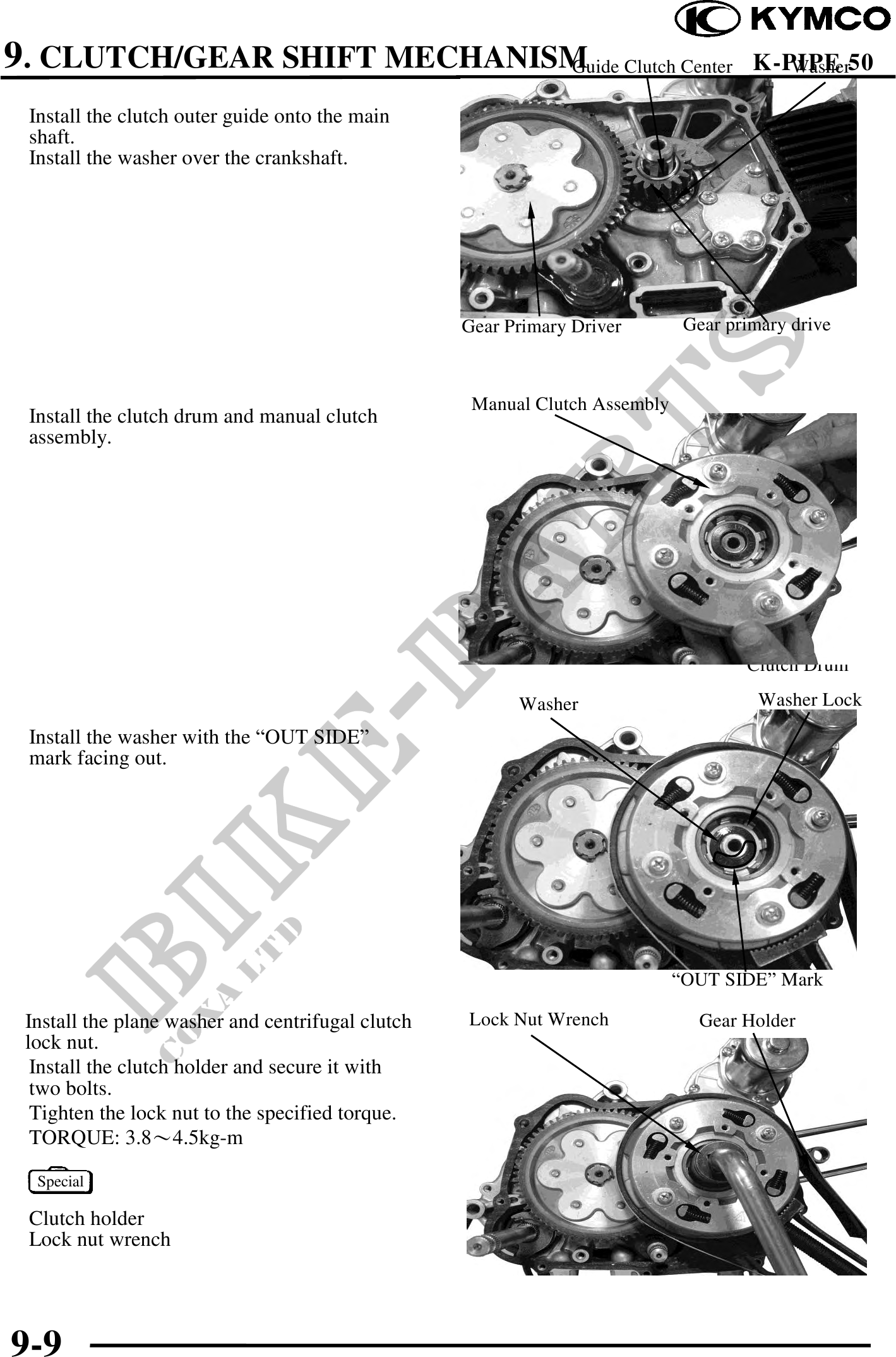

9. CLUTCH/GEAR SHIFT MECHANISM Clutch Center
Guide K-PIPE 50
Washer
Install the clutch outer guide onto the main
shaft.
Install the washer over the crankshaft.
Gear Primary Driver Gear primary drive
Manual Clutch Assembly
Install the clutch drum and manual clutch
assembly.
Clutch Drum
Washer Washer Lock
Install the washer with the "OUT SIDE"
mark facing out.
"OUT SIDE" Mark
Install the plane washer and centrifugal clutch Lock Nut Wrench Gear Holder
lock nut.
Install the clutch holder and secure it with
two bolts.
Tighten the lock nut to the specified torque.
TORQUE: 3.84.5kg-m
Special
Clutch holder
Lock nut wrench
9-9
