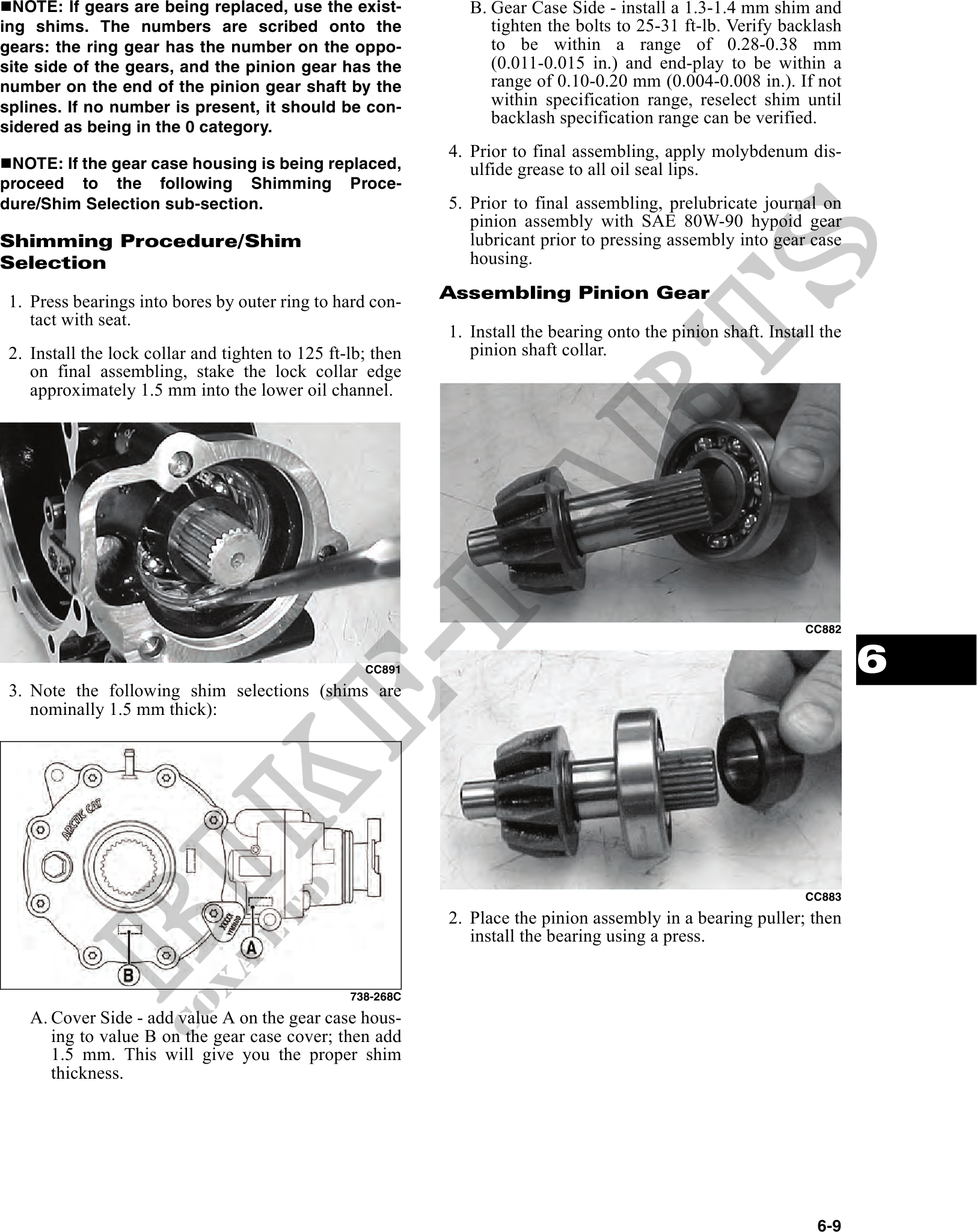

            NOTE: If gears are being replaced, use the exist-             B. Gear Case Side - install a 1.3-1.4 mm shim and
ing shims. The numbers are scribed onto the                        tighten the bolts to 25-31 ft-lb. Verify backlash
gears: the ring gear has the number on the oppo-                   to be within a range of 0.28-0.38 mm
site side of the gears, and the pinion gear has the                (0.011-0.015 in.) and end-play to be within a
number on the end of the pinion gear shaft by the                  range of 0.10-0.20 mm (0.004-0.008 in.). If not
splines. If no number is present, it should be con-                within specification range, reselect shim until
sidered as being in the 0 category.
                                                                   backlash specification range can be verified.
                                                             4. Prior to final assembling, apply molybdenum dis-
 NOTE: If the gear case housing is being replaced,              ulfide grease to all oil seal lips.
proceed to the following Shimming Proce-
dure/Shim Selection sub-section.                             5. Prior to final assembling, prelubricate journal on
                                                                pinion assembly with SAE 80W-90 hypoid gear
Shimming Procedure/Shim                                         lubricant prior to pressing assembly into gear case
Selection                                                       housing.

 1. Press bearings into bores by outer ring to hard con-     Assembling Pinion Gear
    tact with seat.
                                                             1. Install the bearing onto the pinion shaft. Install the
 2. Install the lock collar and tighten to 125 ft-lb; then      pinion shaft collar.
    on final assembling, stake the lock collar edge
    approximately 1.5 mm into the lower oil channel.




                                                                                                                CC882


                                                    CC891                                                                6
 3. Note the following shim selections (shims are
    nominally 1.5 mm thick):




                                                                                                                CC883
                                                             2. Place the pinion assembly in a bearing puller; then
                                                                install the bearing using a press.


                                                  738-268C
    A. Cover Side - add value A on the gear case hous-
       ing to value B on the gear case cover; then add
       1.5 mm. This will give you the proper shim
       thickness.




                                                                                                                  6-9
