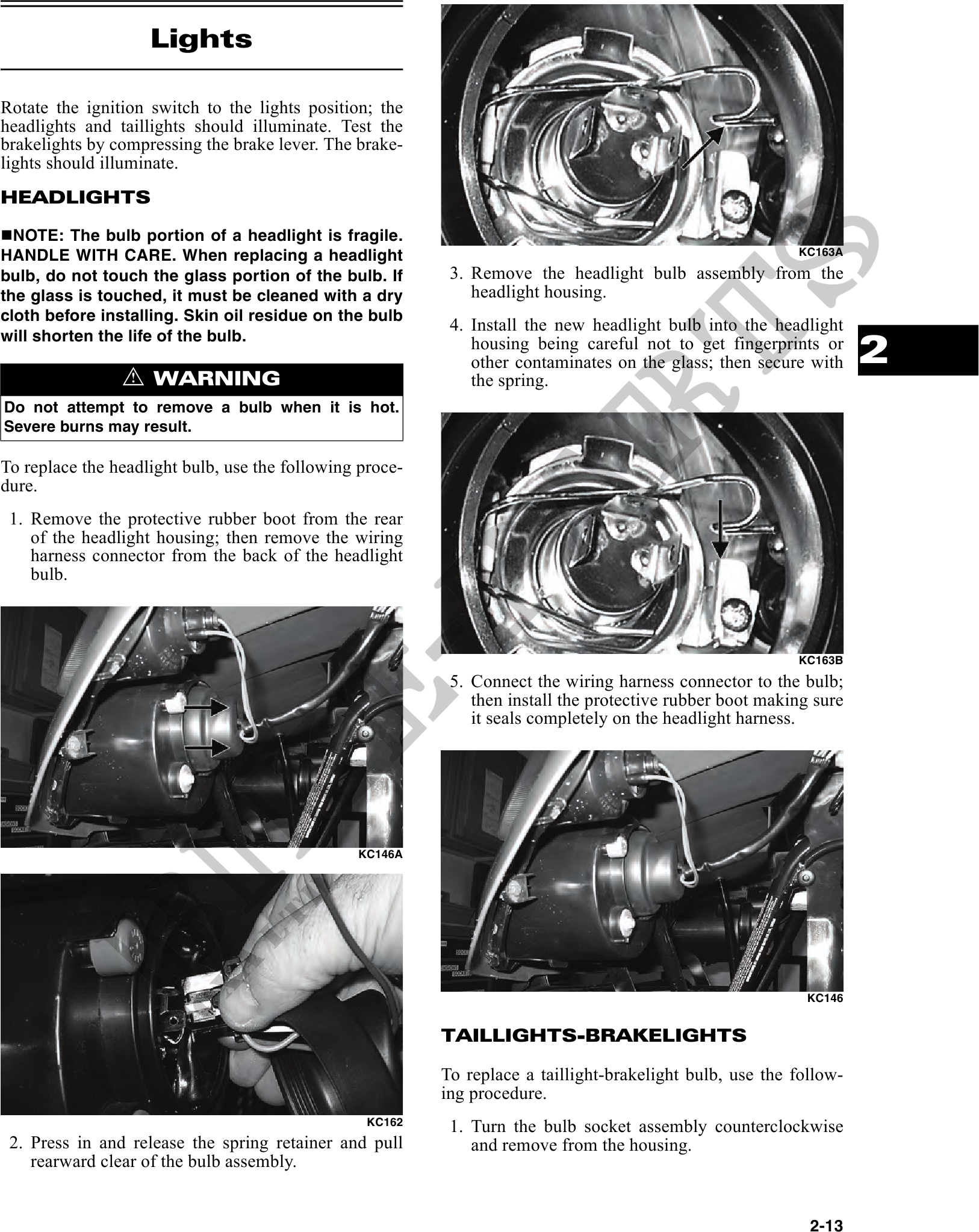

Lights
Rotate the ignition switch to the lights position; the
headlights and taillights should illuminate. Test the
brakelights by compressing the brake lever. The brake-
lights should illuminate.
HEADLIGHTS
NOTE: The bulb portion of a headlight is fragile.
HANDLE WITH CARE. When replacing a headlight KC163A
bulb, do not touch the glass portion of the bulb. If 3. Remove the headlight bulb assembly from the
the glass is touched, it must be cleaned with a dry headlight housing.
cloth before installing. Skin oil residue on the bulb
4. Install the new headlight bulb into the headlight
2
will shorten the life of the bulb. housing being careful not to get fingerprints or
other contaminates on the glass; then secure with
! WARNING the spring.
Do not attempt to remove a bulb when it is hot.
Severe burns may result.
To replace the headlight bulb, use the following proce-
dure.
1. Remove the protective rubber boot from the rear
of the headlight housing; then remove the wiring
harness connector from the back of the headlight
bulb.
KC163B
5. Connect the wiring harness connector to the bulb;
then install the protective rubber boot making sure
it seals completely on the headlight harness.
KC146A
KC146
TAILLIGHTS-BRAKELIGHTS
To replace a taillight-brakelight bulb, use the follow-
ing procedure.
KC162
1. Turn the bulb socket assembly counterclockwise
2. Press in and release the spring retainer and pull and remove from the housing.
rearward clear of the bulb assembly.
2-13
