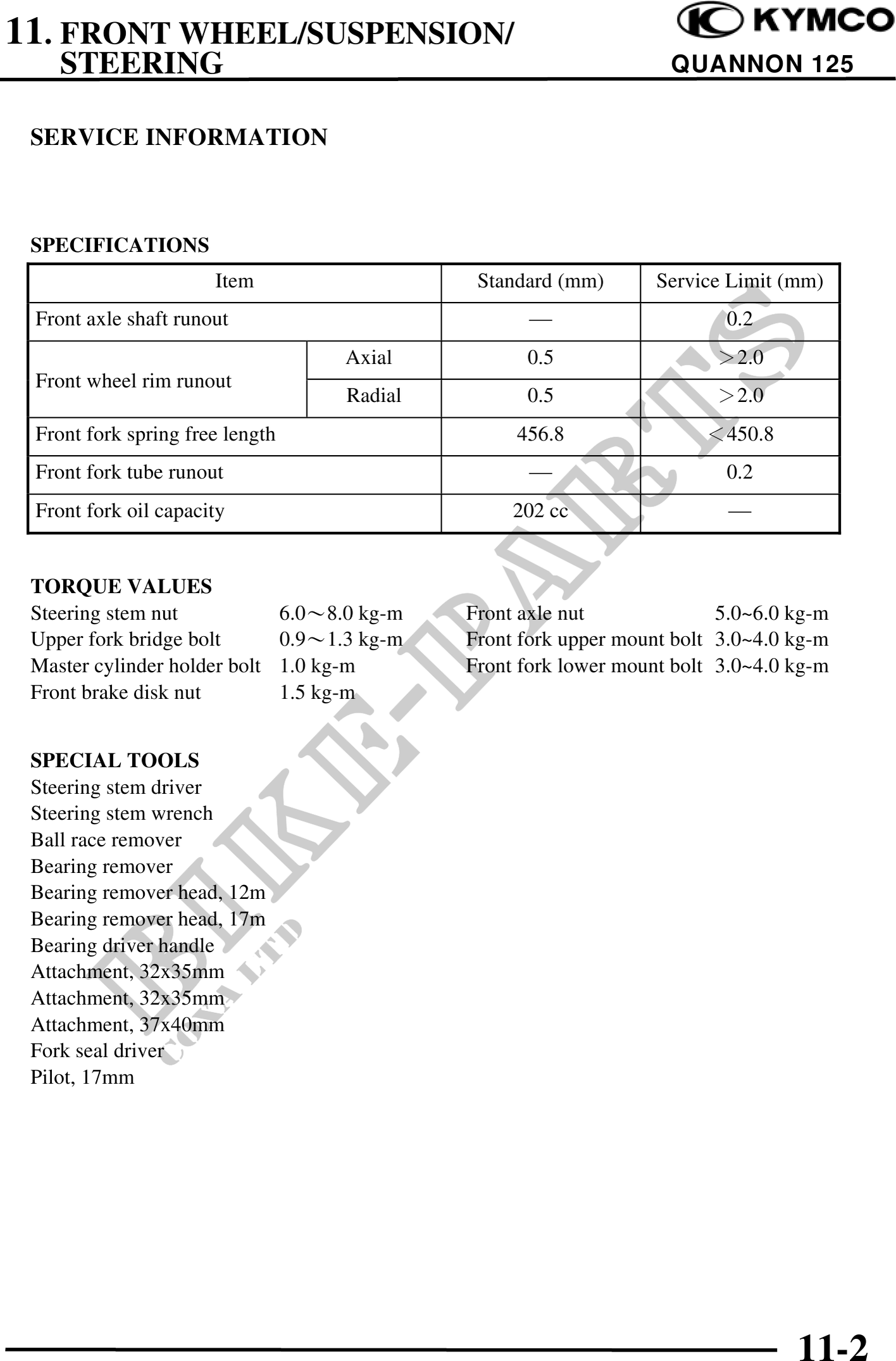

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                         QUANNON 125

 SERVICE INFORMATION



 SPECIFICATIONS
                      Item                      Standard (mm)      Service Limit (mm)
 Front axle shaft runout                                                   0.2
                                      Axial          0.5                  2.0
 Front wheel rim runout
                                      Radial         0.5                  2.0
 Front fork spring free length                      456.8                450.8
 Front fork tube runout                                                    0.2
 Front fork oil capacity                            202 cc


 TORQUE VALUES
 Steering stem nut               6.08.0 kg-m   Front axle nut              5.0~6.0 kg-m
 Upper fork bridge bolt          0.91.3 kg-m   Front fork upper mount bolt 3.0~4.0 kg-m
 Master cylinder holder bolt     1.0 kg-m      Front fork lower mount bolt 3.0~4.0 kg-m
 Front brake disk nut            1.5 kg-m


 SPECIAL TOOLS
 Steering stem driver
 Steering stem wrench
 Ball race remover
 Bearing remover
 Bearing remover head, 12m
 Bearing remover head, 17m
 Bearing driver handle
 Attachment, 32x35mm
 Attachment, 32x35mm
 Attachment, 37x40mm
 Fork seal driver
 Pilot, 17mm




                                                                                   11-2
