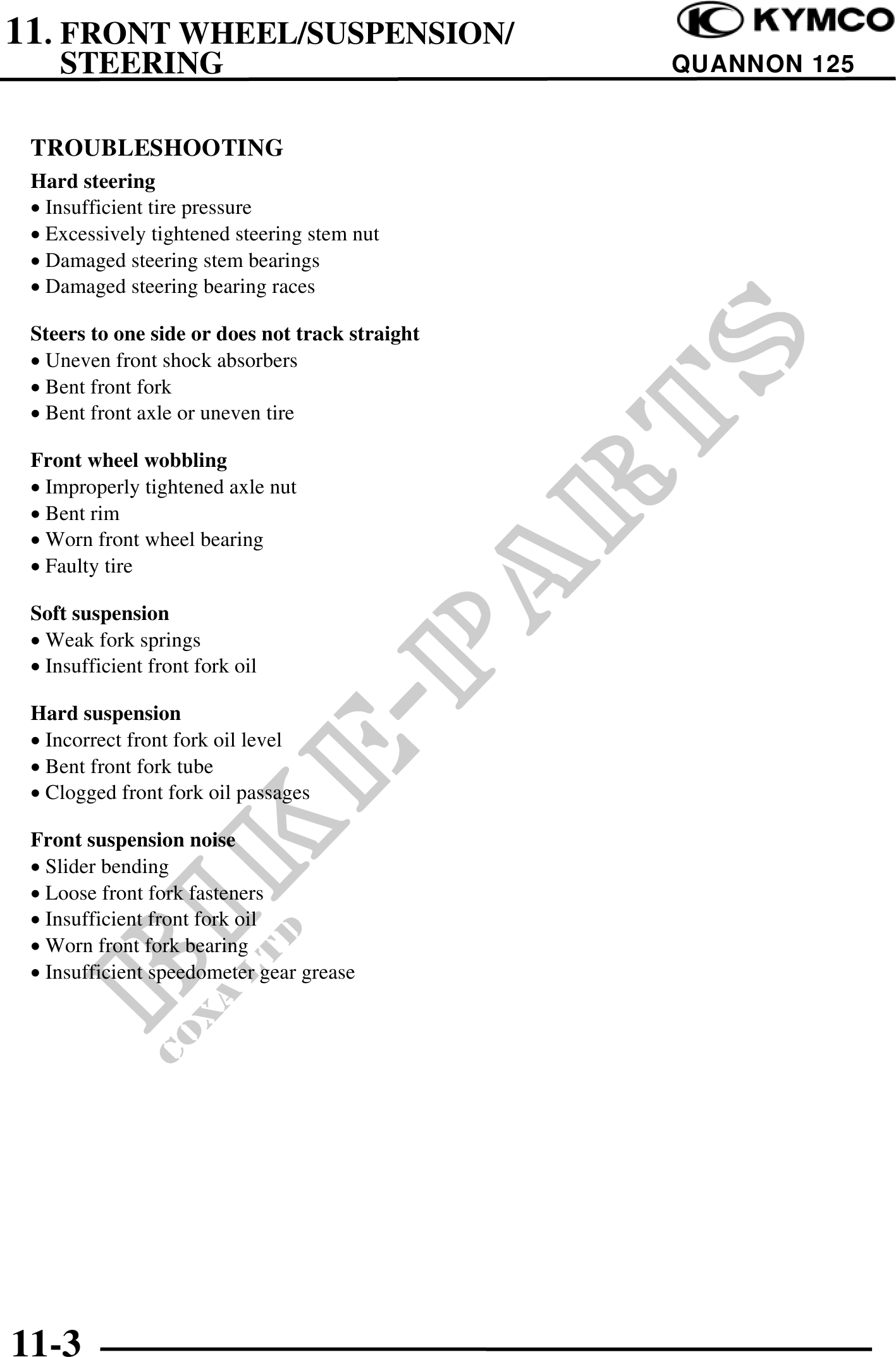

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                     QUANNON 125


 TROUBLESHOOTING
 Hard steering
 · Insufficient tire pressure
 · Excessively tightened steering stem nut
 · Damaged steering stem bearings
 · Damaged steering bearing races

 Steers to one side or does not track straight
 · Uneven front shock absorbers
 · Bent front fork
 · Bent front axle or uneven tire

 Front wheel wobbling
 · Improperly tightened axle nut
 · Bent rim
 · Worn front wheel bearing
 · Faulty tire

 Soft suspension
 · Weak fork springs
 · Insufficient front fork oil

 Hard suspension
 · Incorrect front fork oil level
 · Bent front fork tube
 · Clogged front fork oil passages

 Front suspension noise
 · Slider bending
 · Loose front fork fasteners
 · Insufficient front fork oil
 · Worn front fork bearing
 · Insufficient speedometer gear grease




11-3
