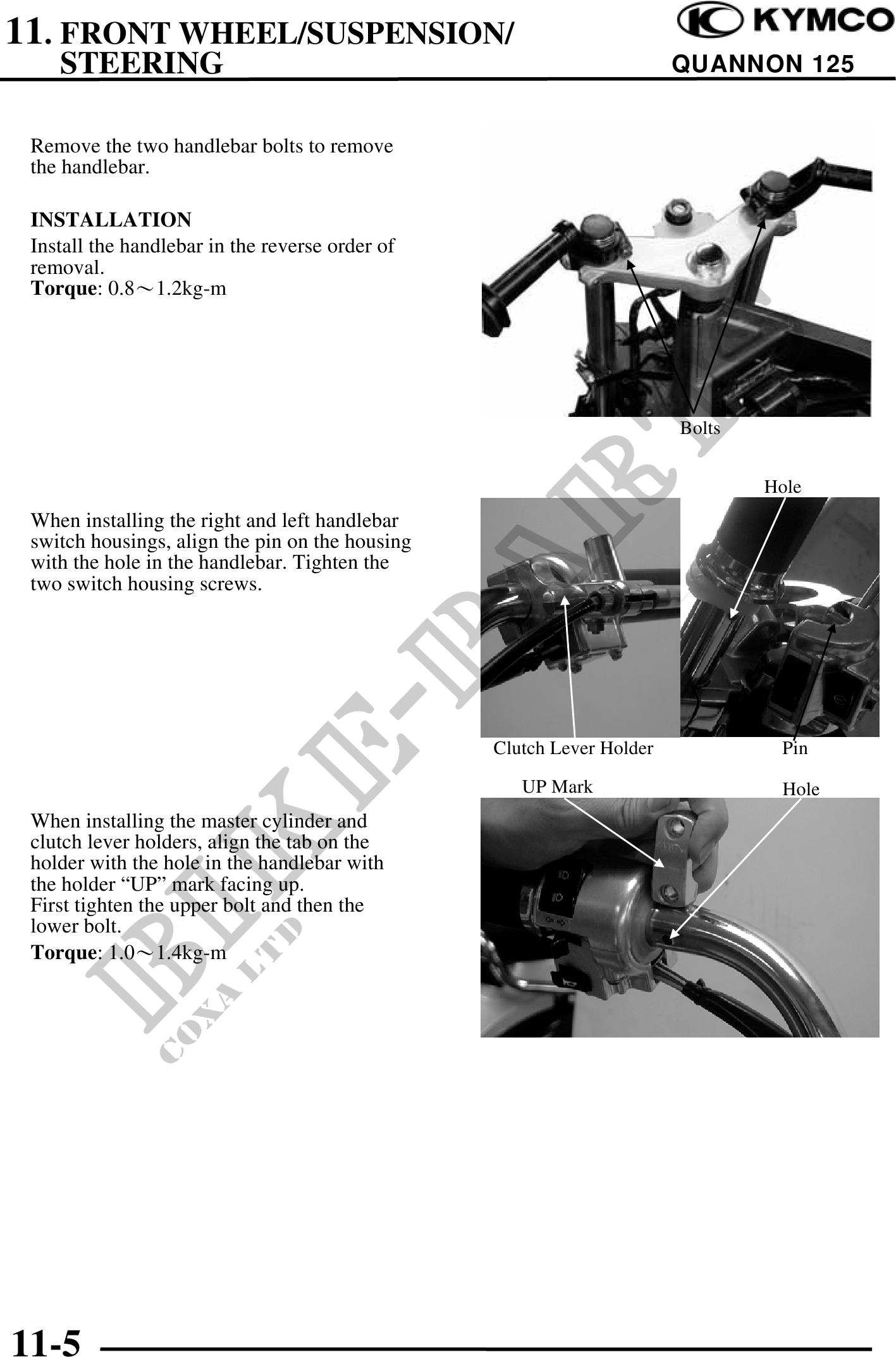

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                           QUANNON 125


 Remove the two handlebar bolts to remove
 the handlebar.

 INSTALLATION
 Install the handlebar in the reverse order of
 removal.
 Torque: 0.81.2kg-m




                                                                       Bolts


                                                                               Hole
 When installing the right and left handlebar
 switch housings, align the pin on the housing
 with the hole in the handlebar. Tighten the
 two switch housing screws.




                                                 Clutch Lever Holder            Pin

                                                    UP Mark                     Hole
 When installing the master cylinder and
 clutch lever holders, align the tab on the
 holder with the hole in the handlebar with
 the holder "UP" mark facing up.
 First tighten the upper bolt and then the
 lower bolt.
 Torque: 1.01.4kg-m




11-5
