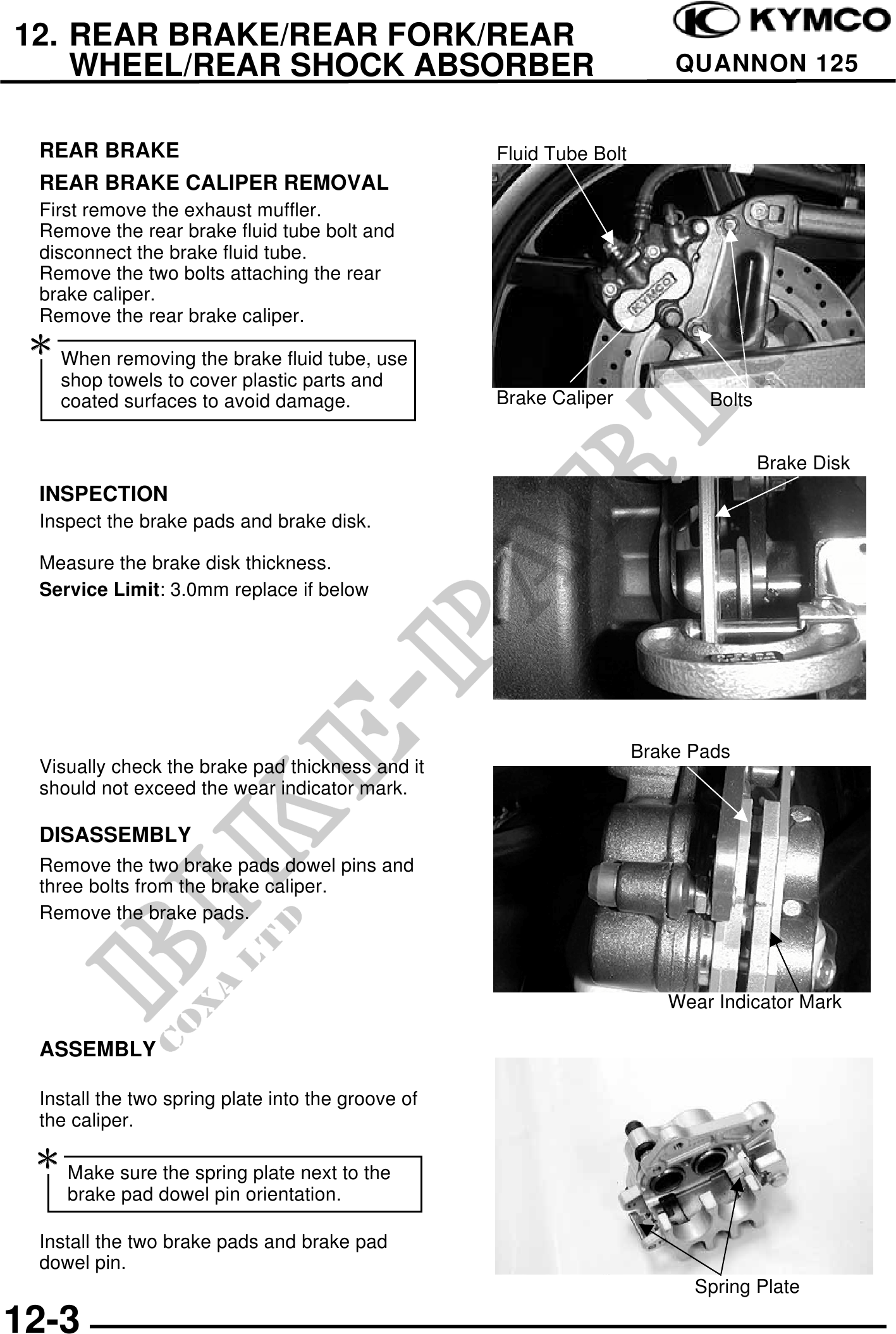

          12. REAR BRAKE/REAR FORK/REAR
    WHEEL/REAR SHOCK ABSORBER                                             QUANNON 125


  REAR BRAKE                                        Fluid Tube Bolt
  REAR BRAKE CALIPER REMOVAL
  First remove the exhaust muffler.
  Remove the rear brake fluid tube bolt and
  disconnect the brake fluid tube.
  Remove the two bolts attaching the rear
  brake caliper.
  Remove the rear brake caliper.
  When removing the brake fluid tube, use
    shop towels to cover plastic parts and
    coated surfaces to avoid damage.                Brake Caliper            Bolts


                                                                                     Brake Disk
  INSPECTION
  Inspect the brake pads and brake disk.

  Measure the brake disk thickness.
  Service Limit: 3.0mm replace if below




                                                                      Brake Pads
  Visually check the brake pad thickness and it
  should not exceed the wear indicator mark.

  DISASSEMBLY
  Remove the two brake pads dowel pins and
  three bolts from the brake caliper.
  Remove the brake pads.



                                                                         Wear Indicator Mark

  ASSEMBLY

  Install the two spring plate into the groove of
  the caliper.

  Make sure the spring plate next to the
     brake pad dowel pin orientation.

  Install the two brake pads and brake pad
  dowel pin.
                                                                            Spring Plate

12-3
