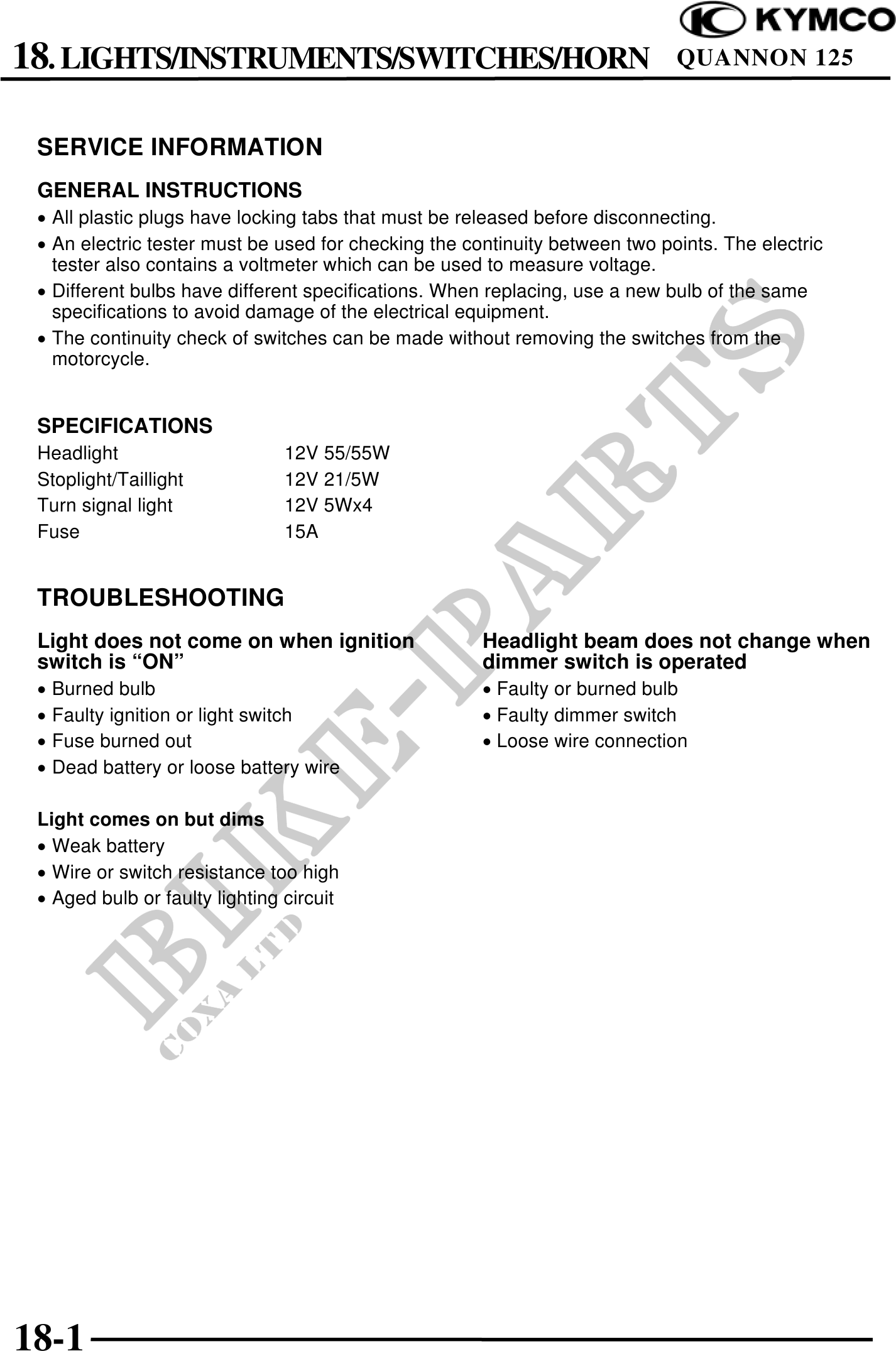

          18. LIGHTS/INSTRUMENTS/SWITCHES/HORN                                         QUANNON 125


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · All plastic plugs have locking tabs that must be released before disconnecting.
 · An electric tester must be used for checking the continuity between two points. The electric
   tester also contains a voltmeter which can be used to measure voltage.
 · Different bulbs have different specifications. When replacing, use a new bulb of the same
   specifications to avoid damage of the electrical equipment.
 · The continuity check of switches can be made without removing the switches from the
   motorcycle.


 SPECIFICATIONS
 Headlight                      12V 55/55W
 Stoplight/Taillight            12V 21/5W
 Turn signal light              12V 5Wx4
 Fuse                           15A


 TROUBLESHOOTING
 Light does not come on when ignition                 Headlight beam does not change when
 switch is "ON"                                       dimmer switch is operated
 ·   Burned bulb                                      · Faulty or burned bulb
 ·   Faulty ignition or light switch                  · Faulty dimmer switch
 ·   Fuse burned out                                  · Loose wire connection
 ·   Dead battery or loose battery wire

 Light comes on but dims
 · Weak battery
 · Wire or switch resistance too high
 · Aged bulb or faulty lighting circuit




18-1
