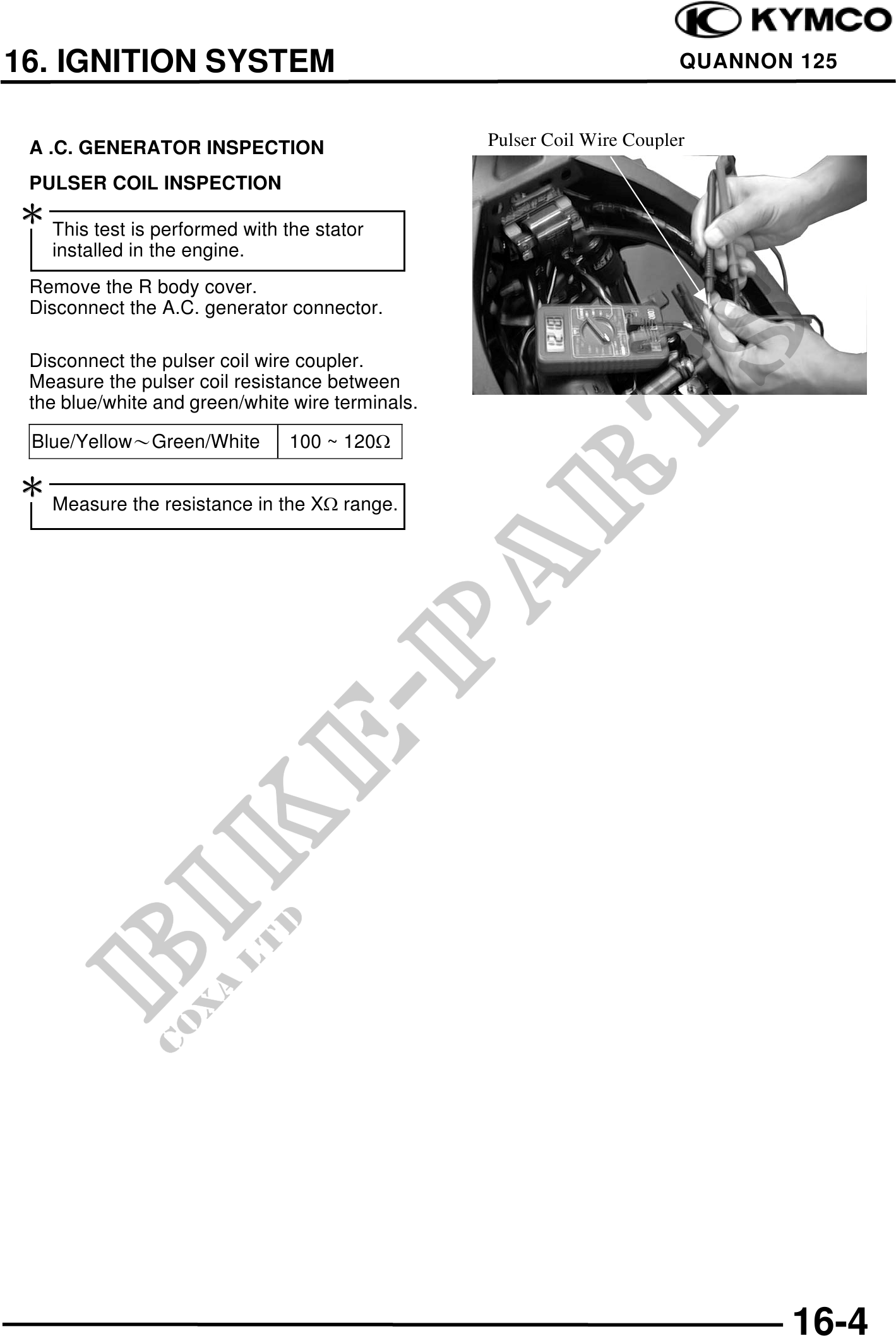

          16. IGNITION SYSTEM                                                      QUANNON 125



 A .C. GENERATOR INSPECTION                       Pulser Coil Wire Coupler

 PULSER COIL INSPECTION
 This test is performed with the stator
    installed in the engine.
 Remove the R body cover.
 Disconnect the A.C. generator connector.

 Disconnect the pulser coil wire coupler.
 Measure the pulser coil resistance between
 the blue/white and green/white wire terminals.

 Blue/YellowGreen/White        100 ~ 120

 Measure the resistance in the X range.




                                                                                16-4
