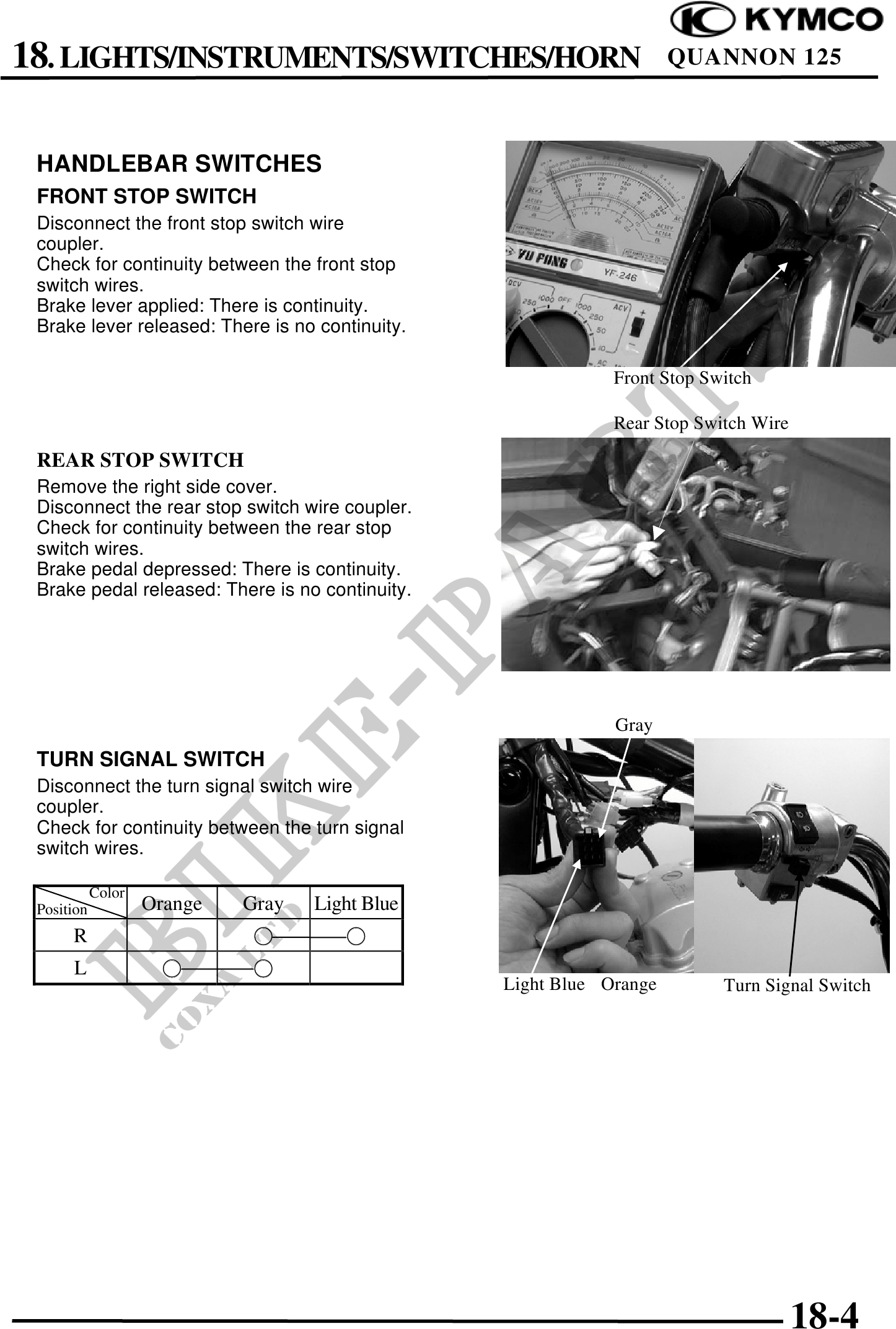

 HANDLEBAR SWITCHES
 FRONT STOP SWITCH
 Disconnect the front stop switch wire
 coupler.
 Check for continuity between the front stop
 switch wires.
 Brake lever applied: There is continuity.
 Brake lever released: There is no continuity.

                                                             Front Stop Switch

                                                             Rear Stop Switch Wire

 REAR STOP SWITCH
 Remove the right side cover.
 Disconnect the rear stop switch wire coupler.
 Check for continuity between the rear stop
 switch wires.
 Brake pedal depressed: There is continuity.
 Brake pedal released: There is no continuity.




                                                             Gray
 TURN SIGNAL SWITCH
 Disconnect the turn signal switch wire
 coupler.
 Check for continuity between the turn signal
 switch wires.

            Color
 Position           Orange   Gray   Light Blue
      R
      L
                                                 Light Blue Orange        Turn Signal Switch
