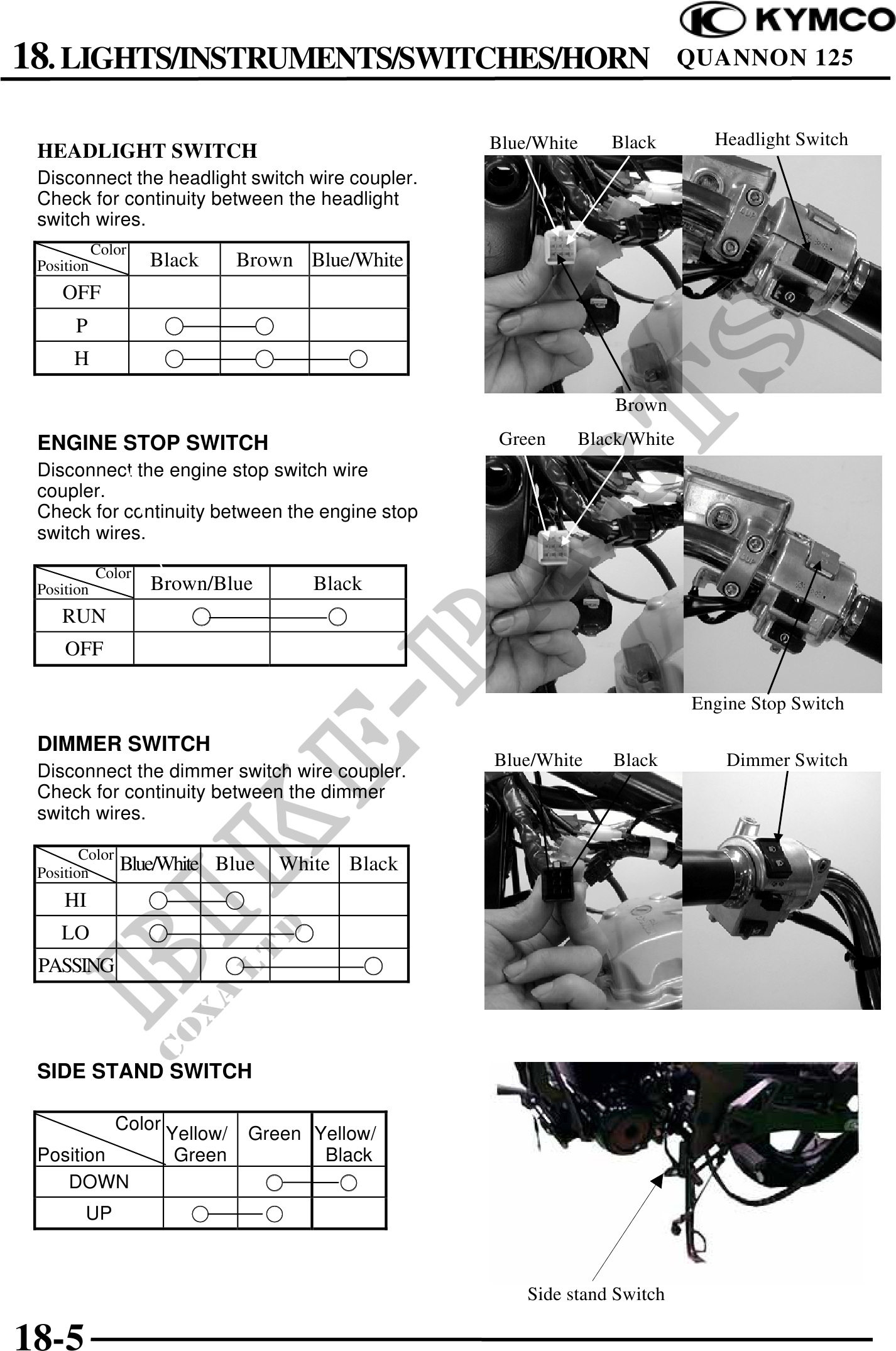

          18. LIGHTS/INSTRUMENTS/SWITCHES/HORN                                         QUANNON 125


                                                     Blue/White    Black       Headlight Switch
 HEADLIGHT SWITCH
 Disconnect the headlight switch wire coupler.
 Check for continuity between the headlight
 switch wires.
            Color
 Position           Black         Brown Blue/White
    OFF
       P
      H

                                                                   Brown

 ENGINE STOP SWITCH                                   Green    Black/White
 Disconnect the engine stop switch wire
 coupler.
 Check for continuity between the engine stop
 switch wires.

            Color
 Position           Brown/Blue           Black
    RUN
     OFF

                                                                             Engine Stop Switch

 DIMMER SWITCH
                                                     Blue/White    Black         Dimmer Switch
 Disconnect the dimmer switch wire coupler.
 Check for continuity between the dimmer
 switch wires.

        Color
 Position       Blue/White Blue       White Black
     HI
    LO
 PASSING




 SIDE STAND SWITCH

                Color
                        Yellow/    Green Yellow/
 Position                Green            Black
    DOWN
        UP



                                                         Side stand Switch

18-5
