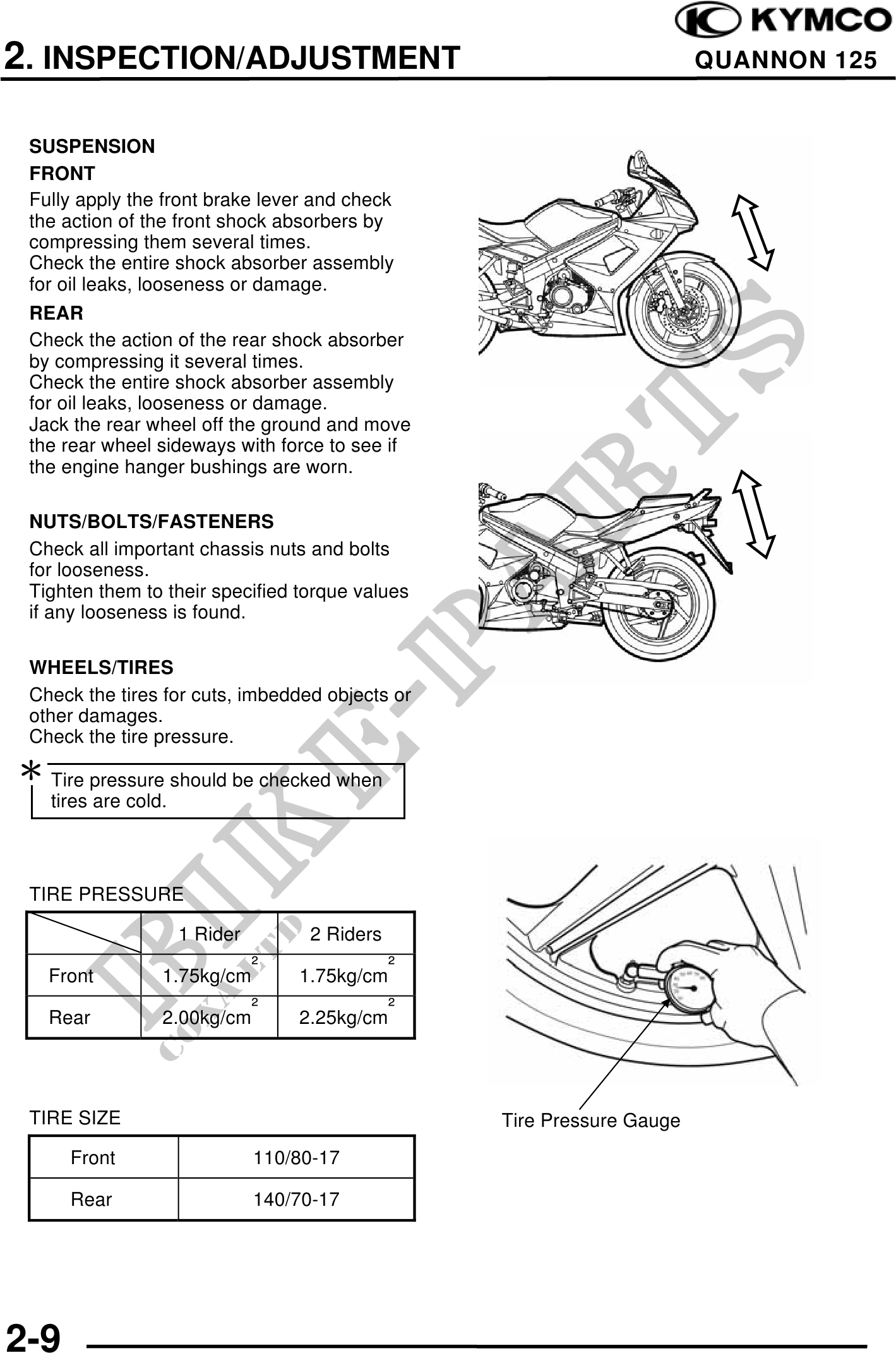

          2. INSPECTION/ADJUSTMENT                                               QUANNON 125


 SUSPENSION
 FRONT
 Fully apply the front brake lever and check
 the action of the front shock absorbers by
 compressing them several times.
 Check the entire shock absorber assembly
 for oil leaks, looseness or damage.
 REAR
 Check the action of the rear shock absorber
 by compressing it several times.
 Check the entire shock absorber assembly
 for oil leaks, looseness or damage.
 Jack the rear wheel off the ground and move
 the rear wheel sideways with force to see if
 the engine hanger bushings are worn.

 NUTS/BOLTS/FASTENERS
 Check all important chassis nuts and bolts
 for looseness.
 Tighten them to their specified torque values
 if any looseness is found.

 WHEELS/TIRES
 Check the tires for cuts, imbedded objects or
 other damages.
 Check the tire pressure.
 Tire pressure should be checked when
   tires are cold.



 TIRE PRESSURE

                     1 Rider        2 Riders

   Front         1.75kg/cm         1.75kg/cm

   Rear          2.00kg/cm         2.25kg/cm




 TIRE SIZE                                       Tire Pressure Gauge
      Front                    110/80-17

      Rear                     140/70-17




2-9
