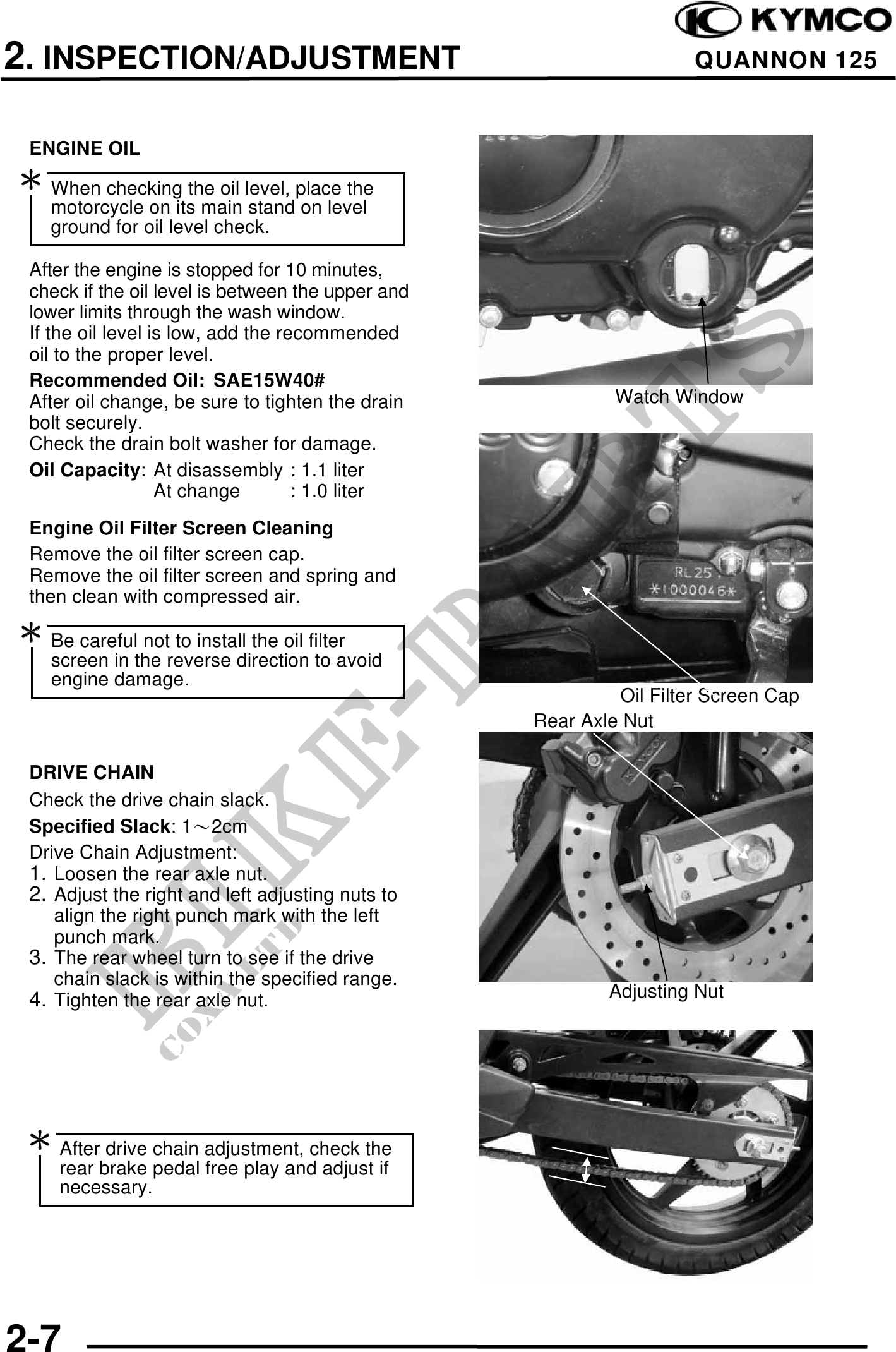

          2. INSPECTION/ADJUSTMENT                                             QUANNON 125


 ENGINE OIL
 When checking the oil level, place the
    motorcycle on its main stand on level
    ground for oil level check.

 After the engine is stopped for 10 minutes,
 check if the oil level is between the upper and
 lower limits through the wash window.
 If the oil level is low, add the recommended
 oil to the proper level.
 Recommended Oil: SAE15W40#
 After oil change, be sure to tighten the drain             Watch Window
 bolt securely.
 Check the drain bolt washer for damage.
 Oil Capacity: At disassembly : 1.1 liter
                   At change        : 1.0 liter
 Engine Oil Filter Screen Cleaning
 Remove the oil filter screen cap.
 Remove the oil filter screen and spring and
 then clean with compressed air.

 Be careful not to install the oil filter
    screen in the reverse direction to avoid
    engine damage.
                                                            Oil Filter Screen Cap
                                                   Rear Axle Nut

 DRIVE CHAIN
 Check the drive chain slack.
 Specified Slack: 12cm
 Drive Chain Adjustment:
 1. Loosen the rear axle nut.
 2. Adjust the right and left adjusting nuts to
    align the right punch mark with the left
    punch mark.
 3. The rear wheel turn to see if the drive
    chain slack is within the specified range.
 4. Tighten the rear axle nut.                             Adjusting Nut




  After drive chain adjustment, check the
     rear brake pedal free play and adjust if
     necessary.




2-7
