          1. GENERAL INFORMATION                                                                                                                     QUANNON 125

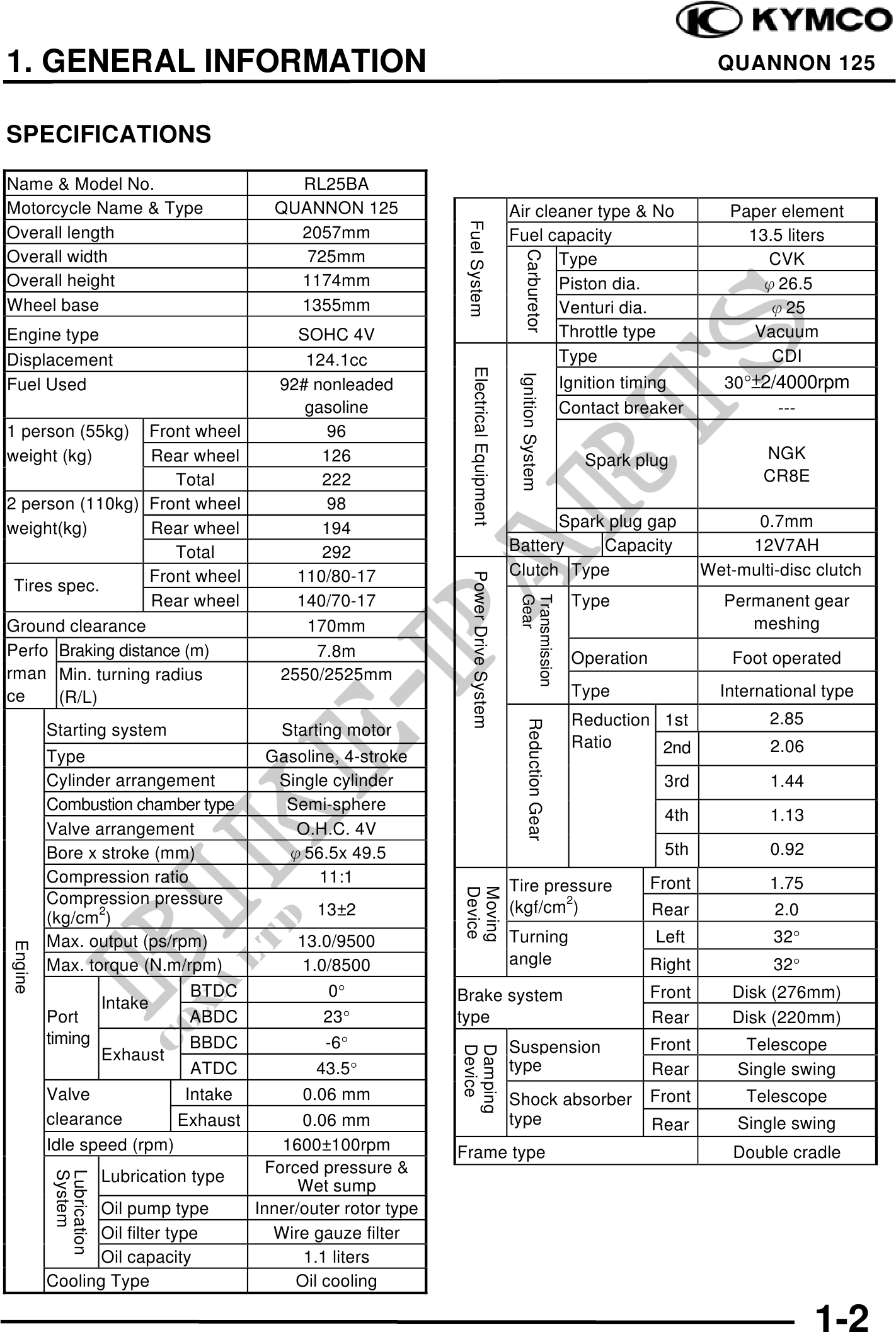

SPECIFICATIONS
Name & Model No.                              RL25BA
Motorcycle Name & Type                      QUANNON 125                                      Air cleaner type & No                          Paper element




                                                                    Fuel System
Overall length                                2057mm                                         Fuel capacity                                    13.5 liters




                                                                                                  Carburetor
Overall width                                  725mm                                                Type                                        CVK
Overall height                                1174mm                                                Piston dia.                                 26.5
Wheel base                                    1355mm                                                Venturi dia.                                25
Engine type                                    SOHC 4V                                              Throttle type                              Vacuum
Displacement                                    124.1cc                                             Type                                         CDI




                                                                      Electrical Equipment
                                                                                                                                            30°2/4000rpm




                                                                                              Ignition System
Fuel Used                                    92# nonleaded                                                          Ignition timing
                                                gasoline                                                            Contact breaker              ---
1 person (55kg)    Front wheel                     96
weight (kg)        Rear wheel                     126                                                                  Spark plug                NGK
                      Total                       222                                                                                            CR8E
2 person (110kg) Front wheel                       98
weight(kg)         Rear wheel                     194                                              Spark plug gap                              0.7mm
                      Total                       292                                        Battery    Capacity                              12V7AH
                   Front wheel                 110/80-17                                     Clutch Type                                 Wet-multi-disc clutch
                                                                      Power Drive System



 Tires spec.
                   Rear wheel                  140/70-17
                                                                                              Gear
                                                                                              Transmission

                                                                                                                     Type                   Permanent gear
Ground clearance                                170mm                                                                                          meshing
Perfo Braking distance (m)                       7.8m                                                                Operation               Foot operated
rman Min. turning radius                     2550/2525mm
ce     (R/L)                                                                                                         Type                  International type
                                                                                                                     Reduction 1st                2.85
                                                                                                   Reduction Gear




         Starting system                    Starting motor
                                                                                                                     Ratio     2nd                2.06
         Type                              Gasoline, 4-stroke
         Cylinder arrangement               Single cylinder                                                                       3rd             1.44
         Combustion chamber type             Semi-sphere
                                                                                                                                  4th             1.13
         Valve arrangement                    O.H.C. 4V
         Bore x stroke (mm)                  56.5x 49.5                                                                           5th             0.92
         Compression ratio                       11:1                                                                            Front            1.75
                                                                                             Tire pressure
                                                                   Device
                                                                   Moving




         Compression pressure
                                                  132                                        (kgf/cm2)                           Rear              2.0
         (kg/cm2)
         Max. output (ps/rpm)                   13.0/9500                                    Turning                             Left             32°
Engine




         Max. torque (N.m/rpm)                   1.0/8500                                    angle                               Right            32°
                            BTDC                     0°            Brake system                                                  Front       Disk (276mm)
                Intake
         Port               ABDC                    23°            type                                                          Rear        Disk (220mm)
         timing             BBDC                    -6°                                                                          Front        Telescope
                                                                                             Suspension
                                                                   Device
                                                                   Damping




                Exhaust
                            ATDC                   43.5°                                     type                                Rear        Single swing
         Valve             Intake                0.06 mm                                     Shock absorber                      Front         Telescope
         clearance        Exhaust                0.06 mm                                     type                                Rear        Single swing
         Idle speed (rpm)                    1600100rpm            Frame type                                                                Double cradle
                                           Forced pressure &
         System
         Lubrication




                       Lubrication type
                                               Wet sump
               Oil pump type              Inner/outer rotor type
               Oil filter type              Wire gauze filter
               Oil capacity                      1.1 liters
         Cooling Type                          Oil cooling

                                                                                                                                                         1-2
