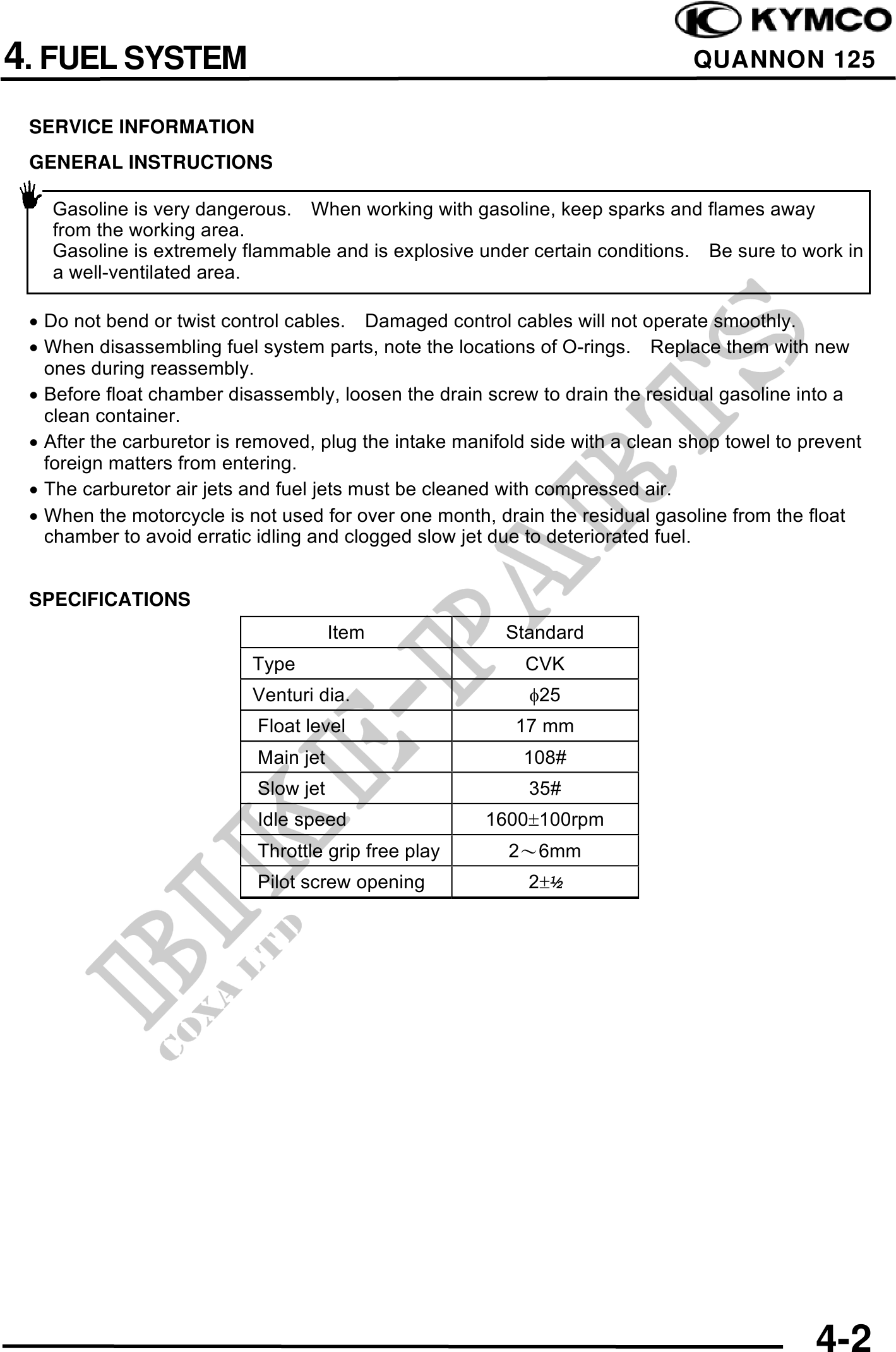

          4. FUEL SYSTEM                                                                 QUANNON 125

 SERVICE INFORMATION
 GENERAL INSTRUCTIONS

   Gasoline is very dangerous. When working with gasoline, keep sparks and flames away
   from the working area.
   Gasoline is extremely flammable and is explosive under certain conditions. Be sure to work in
   a well-ventilated area.

 · Do not bend or twist control cables. Damaged control cables will not operate smoothly.
 · When disassembling fuel system parts, note the locations of O-rings. Replace them with new
   ones during reassembly.
 · Before float chamber disassembly, loosen the drain screw to drain the residual gasoline into a
   clean container.
 · After the carburetor is removed, plug the intake manifold side with a clean shop towel to prevent
   foreign matters from entering.
 · The carburetor air jets and fuel jets must be cleaned with compressed air.
 · When the motorcycle is not used for over one month, drain the residual gasoline from the float
   chamber to avoid erratic idling and clogged slow jet due to deteriorated fuel.


 SPECIFICATIONS
                                       Item              Standard
                           Type                             CVK
                           Venturi dia.                     25
                            Float level                   17 mm
                            Main jet                       108#
                            Slow jet                        35#
                            Idle speed                 1600100rpm
                            Throttle grip free play       26mm
                            Pilot screw opening             2




                                                                                              4-2
