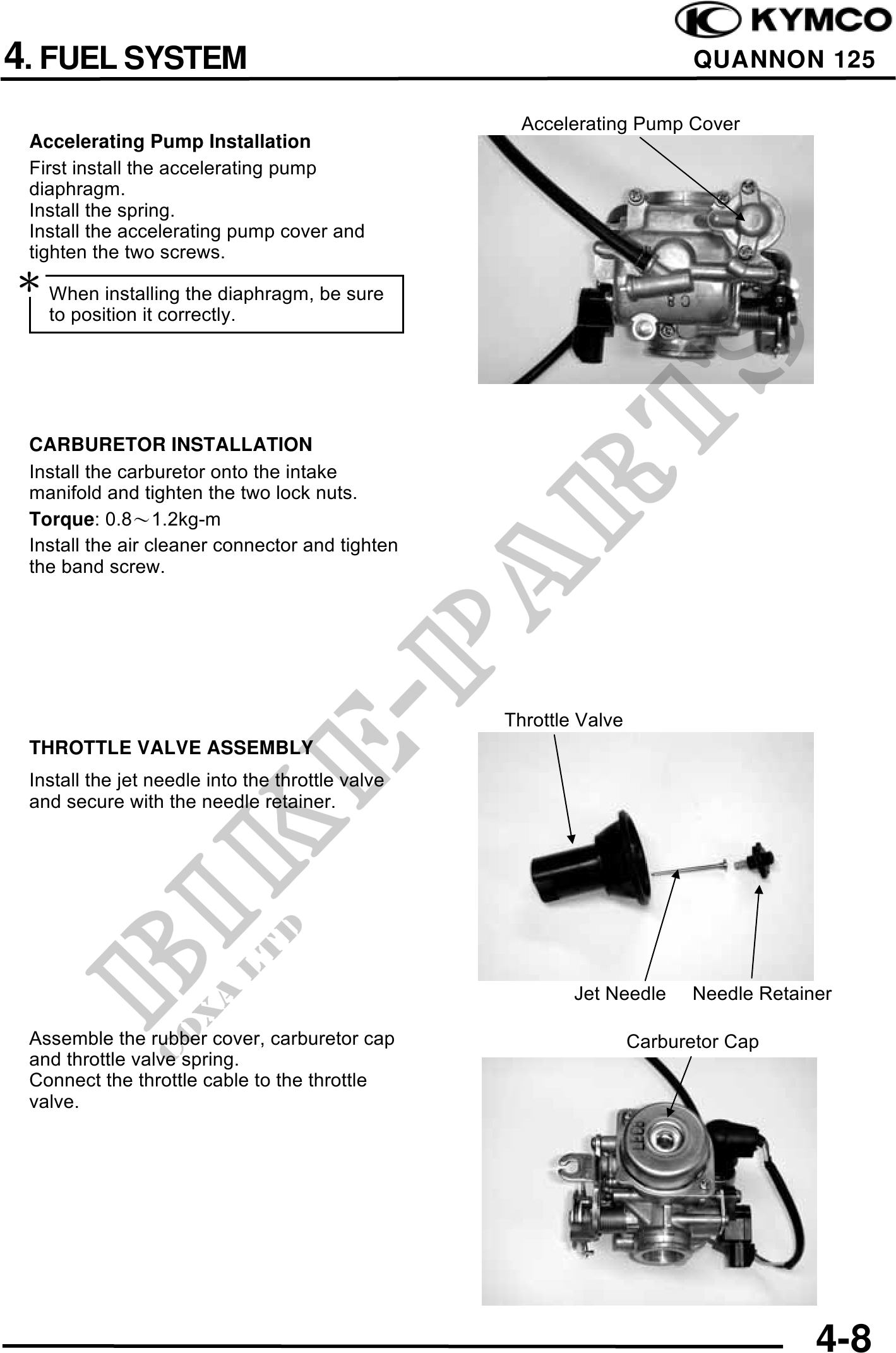

          4. FUEL SYSTEM                                                            QUANNON 125

                                                    Accelerating Pump Cover
 Accelerating Pump Installation
 First install the accelerating pump
 diaphragm.
 Install the spring.
 Install the accelerating pump cover and
 tighten the two screws.
 When installing the diaphragm, be sure
   to position it correctly.




 CARBURETOR INSTALLATION
 Install the carburetor onto the intake
 manifold and tighten the two lock nuts.
 Torque: 0.81.2kg-m
 Install the air cleaner connector and tighten
 the band screw.




                                                  Throttle Valve
 THROTTLE VALVE ASSEMBLY
 Install the jet needle into the throttle valve
 and secure with the needle retainer.




                                                          Jet Needle     Needle Retainer

 Assemble the rubber cover, carburetor cap                         Carburetor Cap
 and throttle valve spring.
 Connect the throttle cable to the throttle
 valve.




                                                                                      4-8
