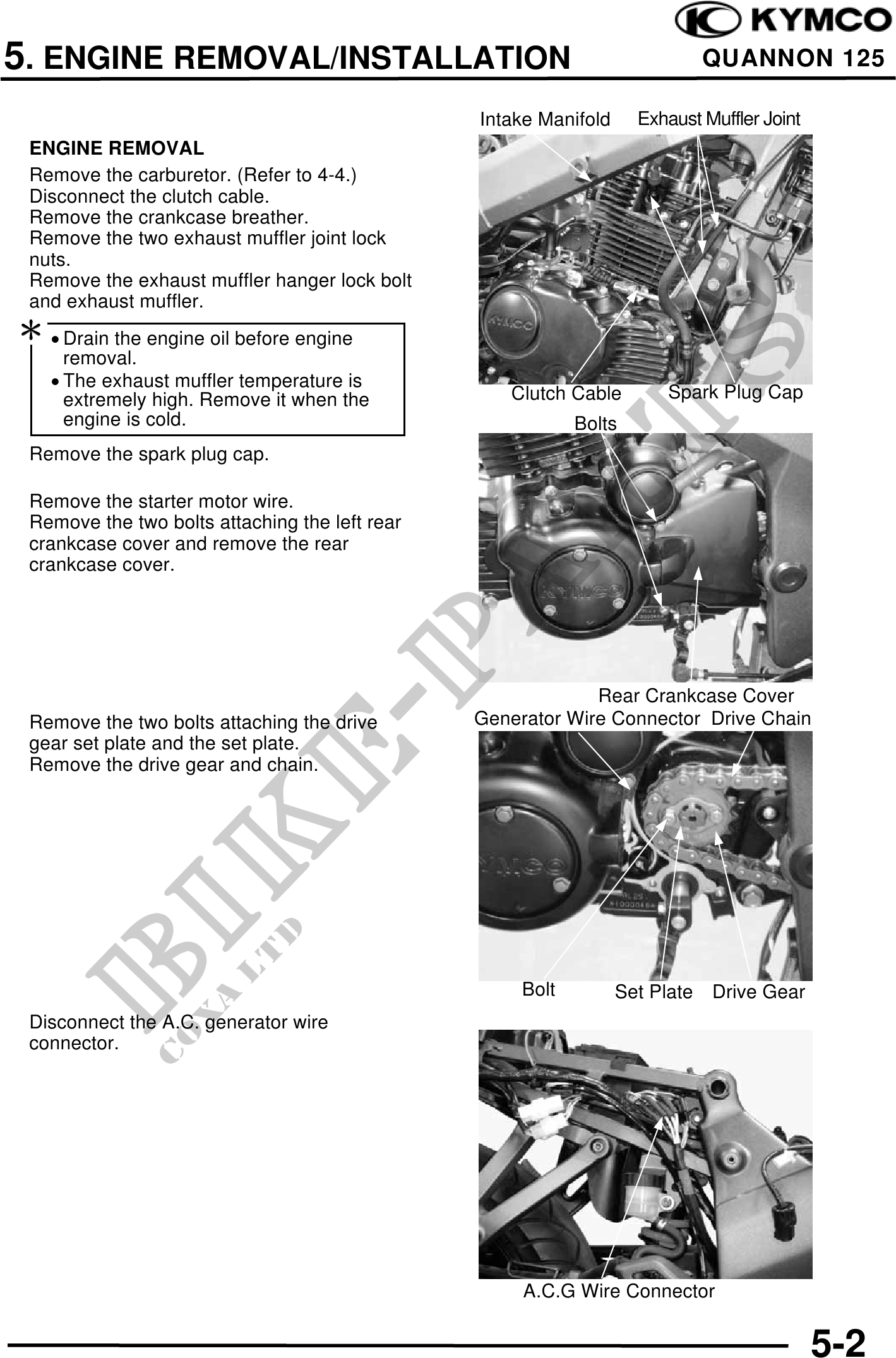

          5. ENGINE REMOVAL/INSTALLATION                                              QUANNON 125

                                                Intake Manifold     Exhaust Muffler Joint
 ENGINE REMOVAL
 Remove the carburetor. (Refer to 4-4.)
 Disconnect the clutch cable.
 Remove the crankcase breather.
 Remove the two exhaust muffler joint lock
 nuts.
 Remove the exhaust muffler hanger lock bolt
 and exhaust muffler.
 · Drain the engine oil before engine
     removal.
   · The exhaust muffler temperature is
     extremely high. Remove it when the            Clutch Cable        Spark Plug Cap
     engine is cold.                                        Bolts
 Remove the spark plug cap.

 Remove the starter motor wire.
 Remove the two bolts attaching the left rear
 crankcase cover and remove the rear
 crankcase cover.




                                                             Rear Crankcase Cover
 Remove the two bolts attaching the drive       Generator Wire Connector Drive Chain
 gear set plate and the set plate.
 Remove the drive gear and chain.




                                                     Bolt         Set Plate Drive Gear
 Disconnect the A.C. generator wire
 connector.




                                                     A.C.G Wire Connector


                                                                                            5-2
