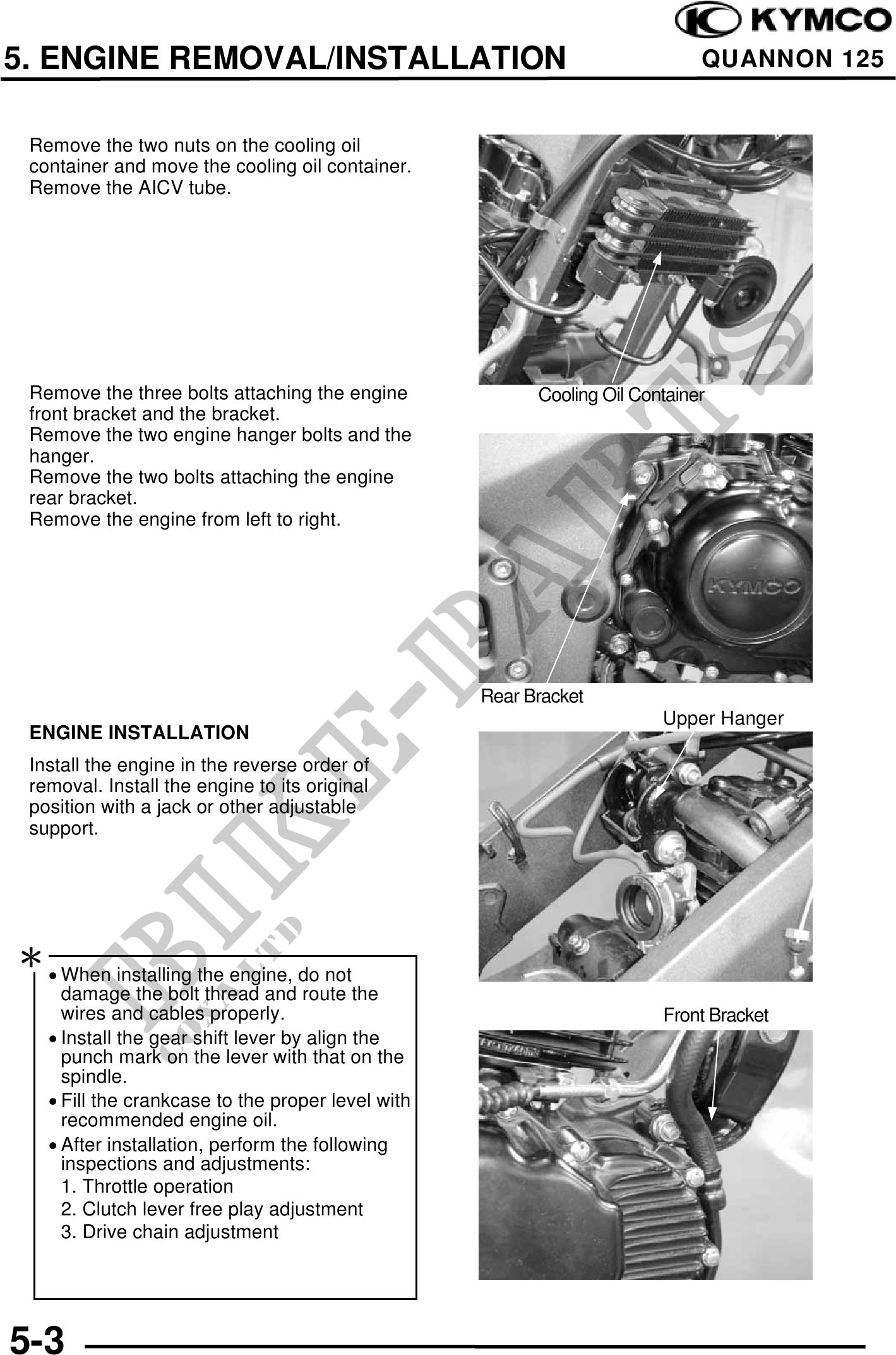

          5. ENGINE REMOVAL/INSTALLATION                                               QUANNON 125


 Remove the two nuts on the cooling oil
 container and move the cooling oil container.
 Remove the AICV tube.




 Remove the three bolts attaching the engine             Cooling Oil Container
 front bracket and the bracket.
 Remove the two engine hanger bolts and the
 hanger.
 Remove the two bolts attaching the engine
 rear bracket.
 Remove the engine from left to right.




                                                   Rear Bracket
                                                                        Upper Hanger
 ENGINE INSTALLATION
 Install the engine in the reverse order of
 removal. Install the engine to its original
 position with a jack or other adjustable
 support.




 · When installing the engine, do not
     damage the bolt thread and route the
     wires and cables properly.                                         Front Bracket
   · Install the gear shift lever by align the
     punch mark on the lever with that on the
     spindle.
   · Fill the crankcase to the proper level with
     recommended engine oil.
   · After installation, perform the following
     inspections and adjustments:
     1. Throttle operation
     2. Clutch lever free play adjustment
     3. Drive chain adjustment




5-3
