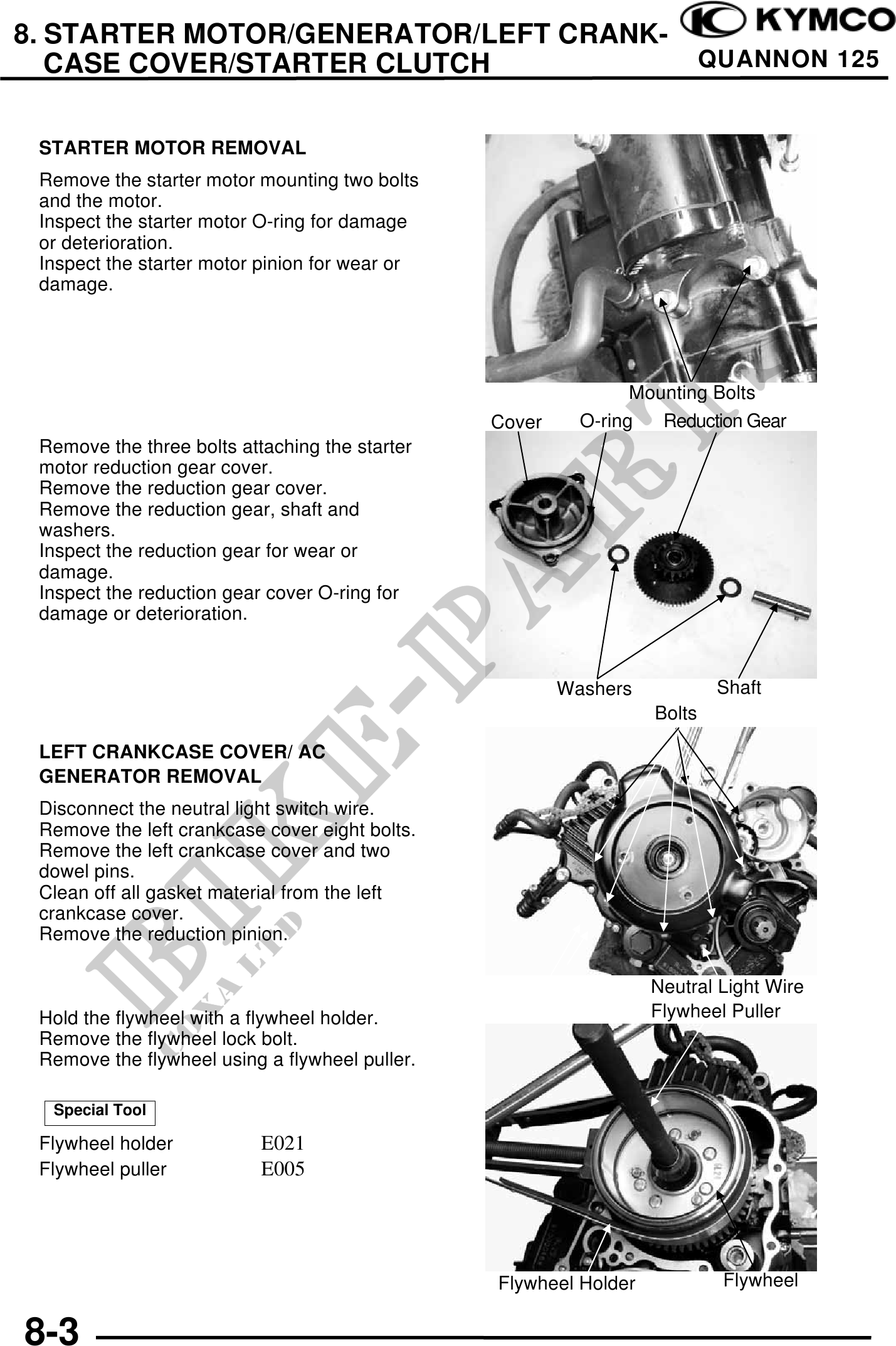

          8. STARTER MOTOR/GENERATOR/LEFT CRANK-
   CASE COVER/STARTER CLUTCH                                              QUANNON 125


 STARTER MOTOR REMOVAL
 Remove the starter motor mounting two bolts
 and the motor.
 Inspect the starter motor O-ring for damage
 or deterioration.
 Inspect the starter motor pinion for wear or
 damage.




                                                                Mounting Bolts
                                                Cover     O-ring   Reduction Gear
 Remove the three bolts attaching the starter
 motor reduction gear cover.
 Remove the reduction gear cover.
 Remove the reduction gear, shaft and
 washers.
 Inspect the reduction gear for wear or
 damage.
 Inspect the reduction gear cover O-ring for
 damage or deterioration.


                                                        Washers            Shaft
                                                                  Bolts

 LEFT CRANKCASE COVER/ AC
 GENERATOR REMOVAL
 Disconnect the neutral light switch wire.
 Remove the left crankcase cover eight bolts.
 Remove the left crankcase cover and two
 dowel pins.
 Clean off all gasket material from the left
 crankcase cover.
 Remove the reduction pinion.

                                                                  Neutral Light Wire
 Hold the flywheel with a flywheel holder.                        Flywheel Puller
 Remove the flywheel lock bolt.
 Remove the flywheel using a flywheel puller.

  Special Tool

 Flywheel holder           E021
 Flywheel puller           E005




                                                Flywheel Holder            Flywheel


8-3
