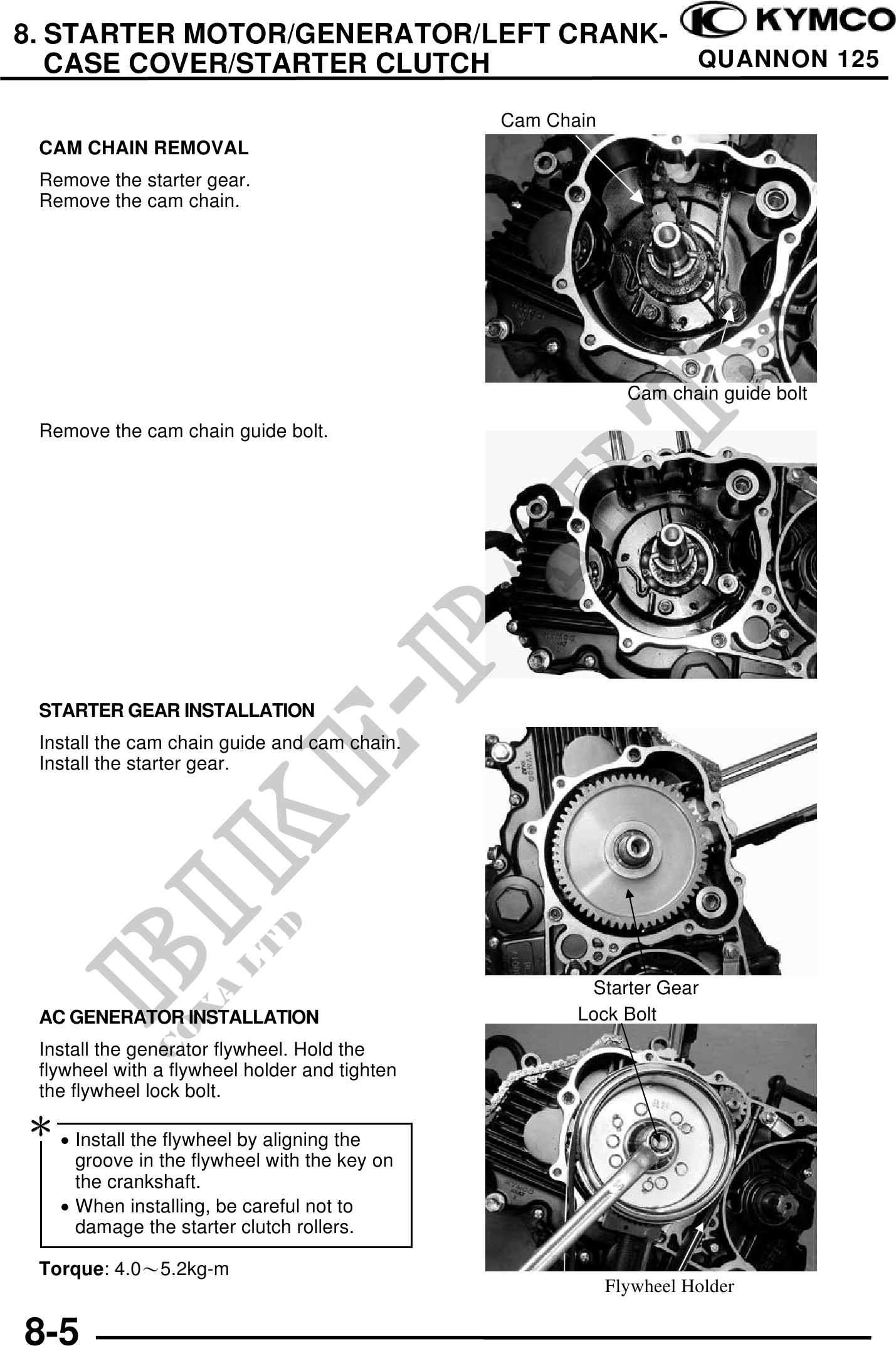

          8. STARTER MOTOR/GENERATOR/LEFT CRANK-
   CASE COVER/STARTER CLUTCH                                         QUANNON 125

                                               Cam Chain
 CAM CHAIN REMOVAL
 Remove the starter gear.
 Remove the cam chain.




                                                             Cam chain guide bolt
 Remove the cam chain guide bolt.




 STARTER GEAR INSTALLATION
 Install the cam chain guide and cam chain.
 Install the starter gear.




                                                       Starter Gear
 AC GENERATOR INSTALLATION                            Lock Bolt
 Install the generator flywheel. Hold the
 flywheel with a flywheel holder and tighten
 the flywheel lock bolt.
 · Install the flywheel by aligning the
      groove in the flywheel with the key on
      the crankshaft.
    · When installing, be careful not to
      damage the starter clutch rollers.

 Torque: 4.05.2kg-m
                                                           Flywheel Holder
