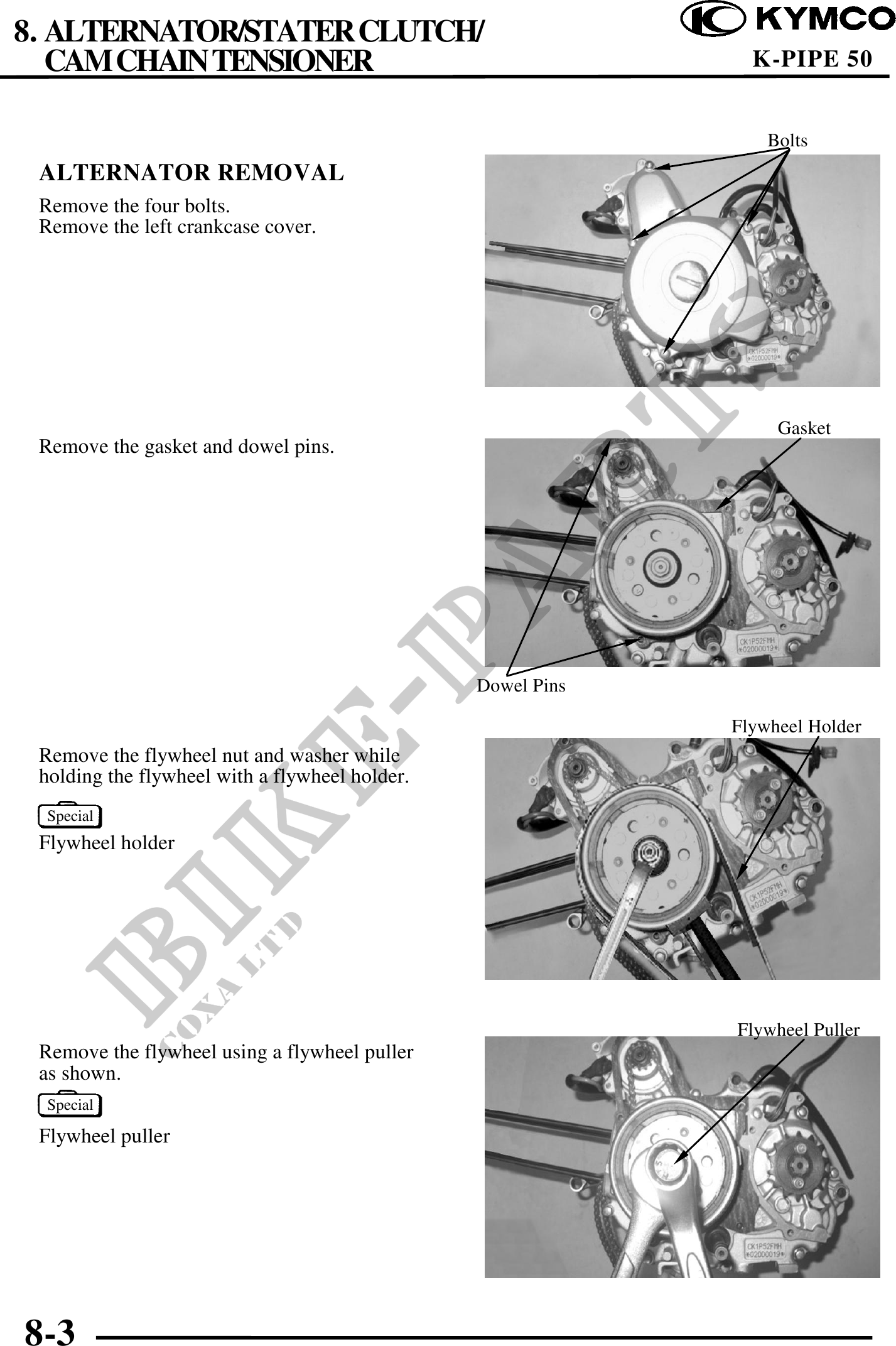

8. ALTERNATOR/STATER CLUTCH/
CAM CHAIN TENSIONER K-PIPE 50
Bolts
ALTERNATOR REMOVAL
Remove the four bolts.
Remove the left crankcase cover.
Gasket
Remove the gasket and dowel pins.
Dowel Pins
Flywheel Holder
Remove the flywheel nut and washer while
holding the flywheel with a flywheel holder.
Special
Flywheel holder
Flywheel Puller
Remove the flywheel using a flywheel puller
as shown.
Special
Flywheel puller
8-3
