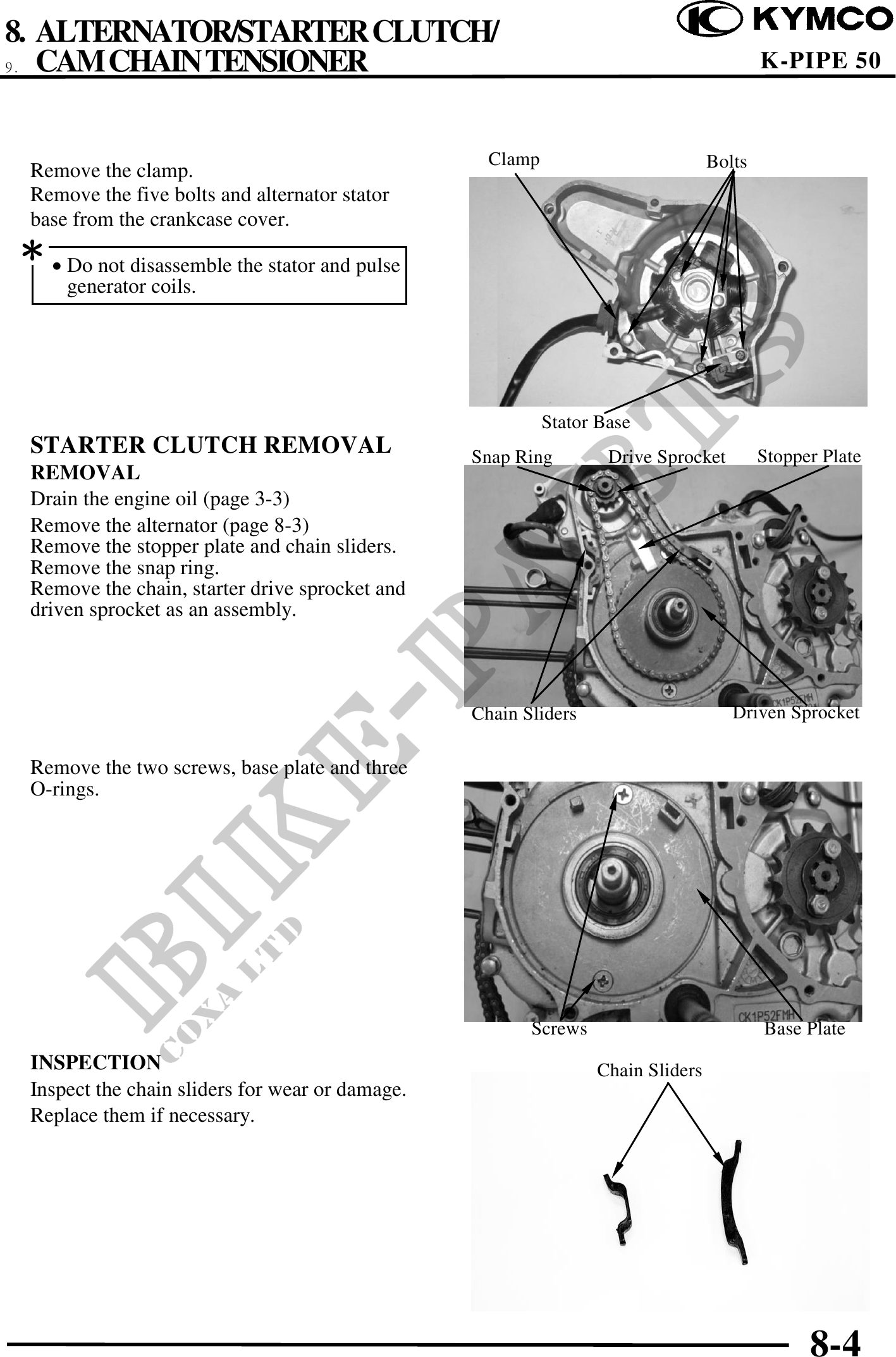

          8. ALTERNATOR/STARTER CLUTCH/
9. CAM CHAIN TENSIONER                                                                   K-PIPE 50


                                                   Clamp                         Bolts
 Remove the clamp.
 Remove the five bolts and alternator stator
 base from the crankcase cover.
  Do not disassemble the stator and pulse
     generator coils.




                                                           Stator Base
 STARTER CLUTCH REMOVAL                          Snap Ring         Drive Sprocket        Stopper Plate
 REMOVAL
 Drain the engine oil (page 3-3)
 Remove the alternator (page 8-3)
 Remove the stopper plate and chain sliders.
 Remove the snap ring.
 Remove the chain, starter drive sprocket and
 driven sprocket as an assembly.



                                                 Chain Sliders                      Driven Sprocket

 Remove the two screws, base plate and three
 O-rings.




                                                        Screws                           Base Plate
 INSPECTION                                                      Chain Sliders
 Inspect the chain sliders for wear or damage.
 Replace them if necessary.




                                                                                               8-4
