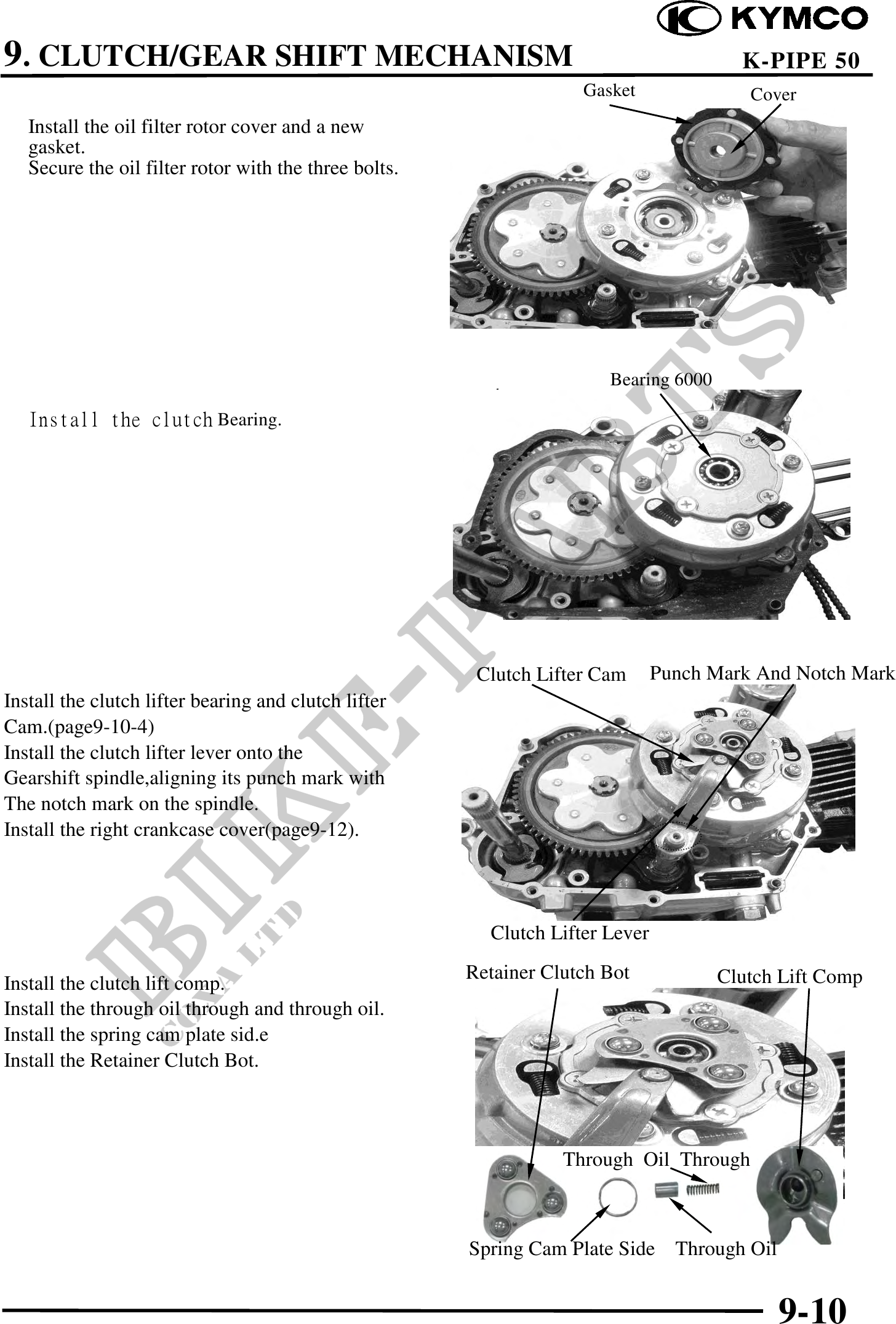

          9. CLUTCH/GEAR SHIFT MECHANISM                                                          K-PIPE 50
                                                                    Gasket               Cover
   Install the oil filter rotor cover and a new
   gasket.
   Secure the oil filter rotor with the three bolts.




                                                                       Bearing 6000

   Install the clutch Bearing.




                                                        Clutch Lifter Cam      Punch Mark And Notch Mark
Install the clutch lifter bearing and clutch lifter
Cam.(page9-10-4)
Install the clutch lifter lever onto the
Gearshift spindle,aligning its punch mark with
The notch mark on the spindle.
Install the right crankcase cover(page9-12).




                                                         Clutch Lifter Lever
                                                       Retainer Clutch Bot            Clutch Lift Comp
Install the clutch lift comp.
Install the through oil through and through oil.
Install the spring cam plate sid.e
Install the Retainer Clutch Bot.



                                                                  Through Oil Through



                                                       Spring Cam Plate Side Through Oil


                                                                                            9-10
