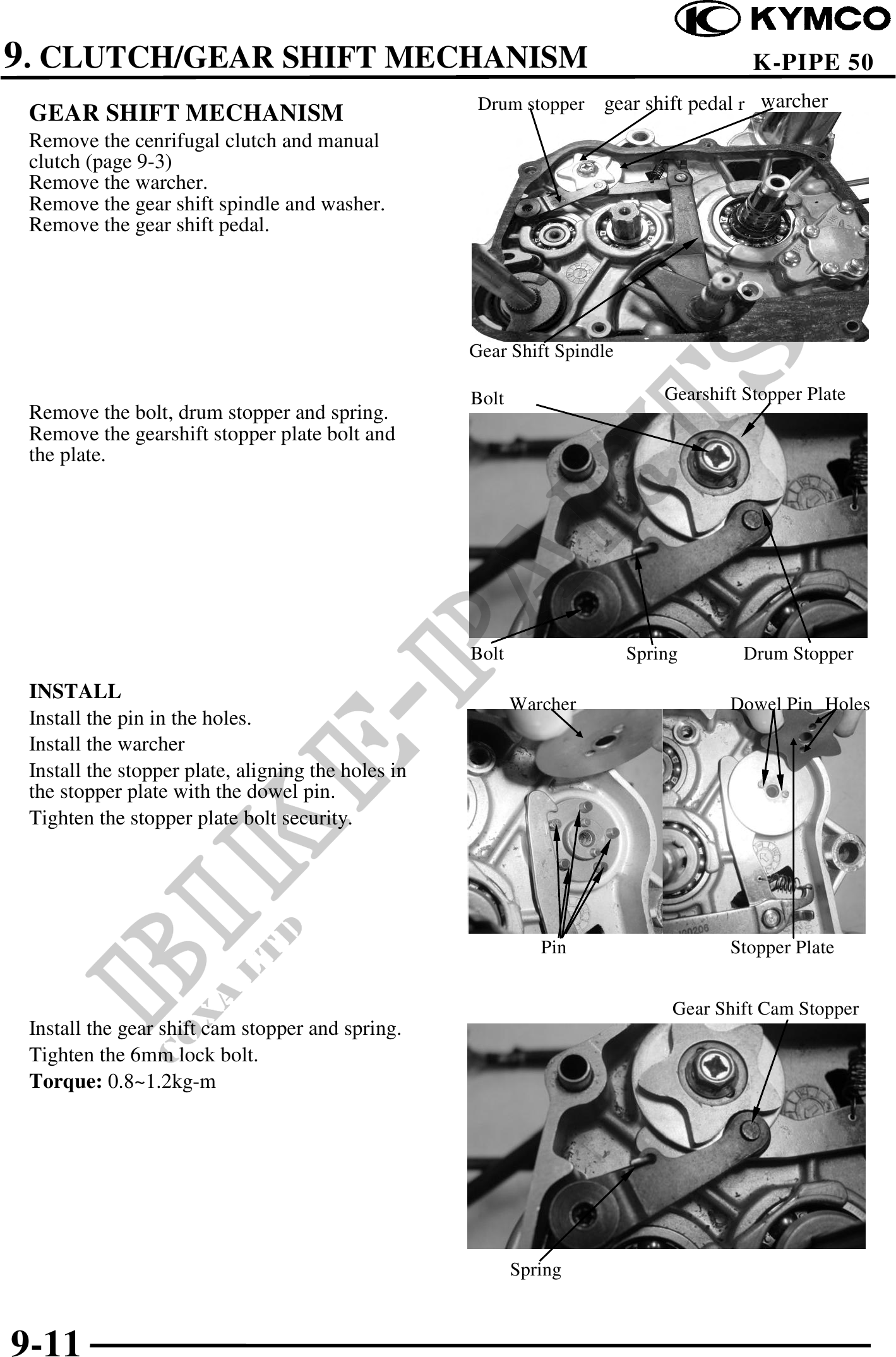

          9. CLUTCH/GEAR SHIFT MECHANISM                                                          K-PIPE 50
                                                     Drum stopper    gear shift pedal r warcher
 GEAR SHIFT MECHANISM
 Remove the cenrifugal clutch and manual
 clutch (page 9-3)
 Remove the warcher.
 Remove the gear shift spindle and washer.
 Remove the gear shift pedal.




                                                    Gear Shift Spindle

                                                    Bolt                     Gearshift Stopper Plate
 Remove the bolt, drum stopper and spring.
 Remove the gearshift stopper plate bolt and
 the plate.




                                                    Bolt                 Spring        Drum Stopper
 INSTALL
                                                           Warcher                   Dowel Pin Holes
 Install the pin in the holes.
 Install the warcher
 Install the stopper plate, aligning the holes in
 the stopper plate with the dowel pin.
 Tighten the stopper plate bolt security.




                                                              Pin                    Stopper Plate


                                                                              Gear Shift Cam Stopper
 Install the gear shift cam stopper and spring.
 Tighten the 6mm lock bolt.
 Torque: 0.8~1.2kg-m




                                                           Spring



9-11
