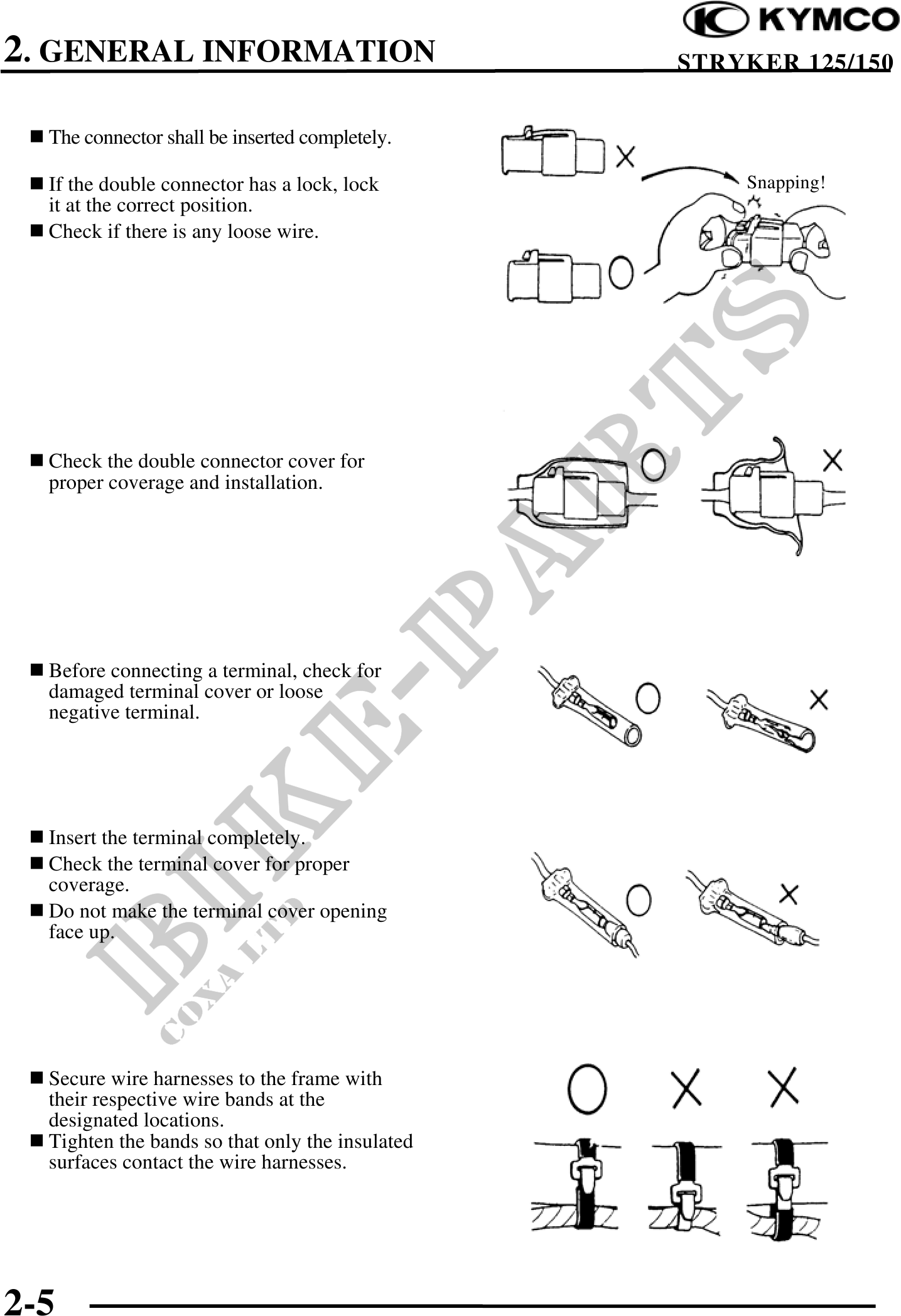

2. GENERAL INFORMATION STRYKER 125/150
The connector shall be inserted completely.
If the double connector has a lock, lock Snapping!
it at the correct position.
Check if there is any loose wire.
Check the double connector cover for
proper coverage and installation.
Before connecting a terminal, check for
damaged terminal cover or loose
negative terminal.
Insert the terminal completely.
Check the terminal cover for proper
coverage.
Do not make the terminal cover opening
face up.
Secure wire harnesses to the frame with
their respective wire bands at the
designated locations.
Tighten the bands so that only the insulated
surfaces contact the wire harnesses.
2-5
