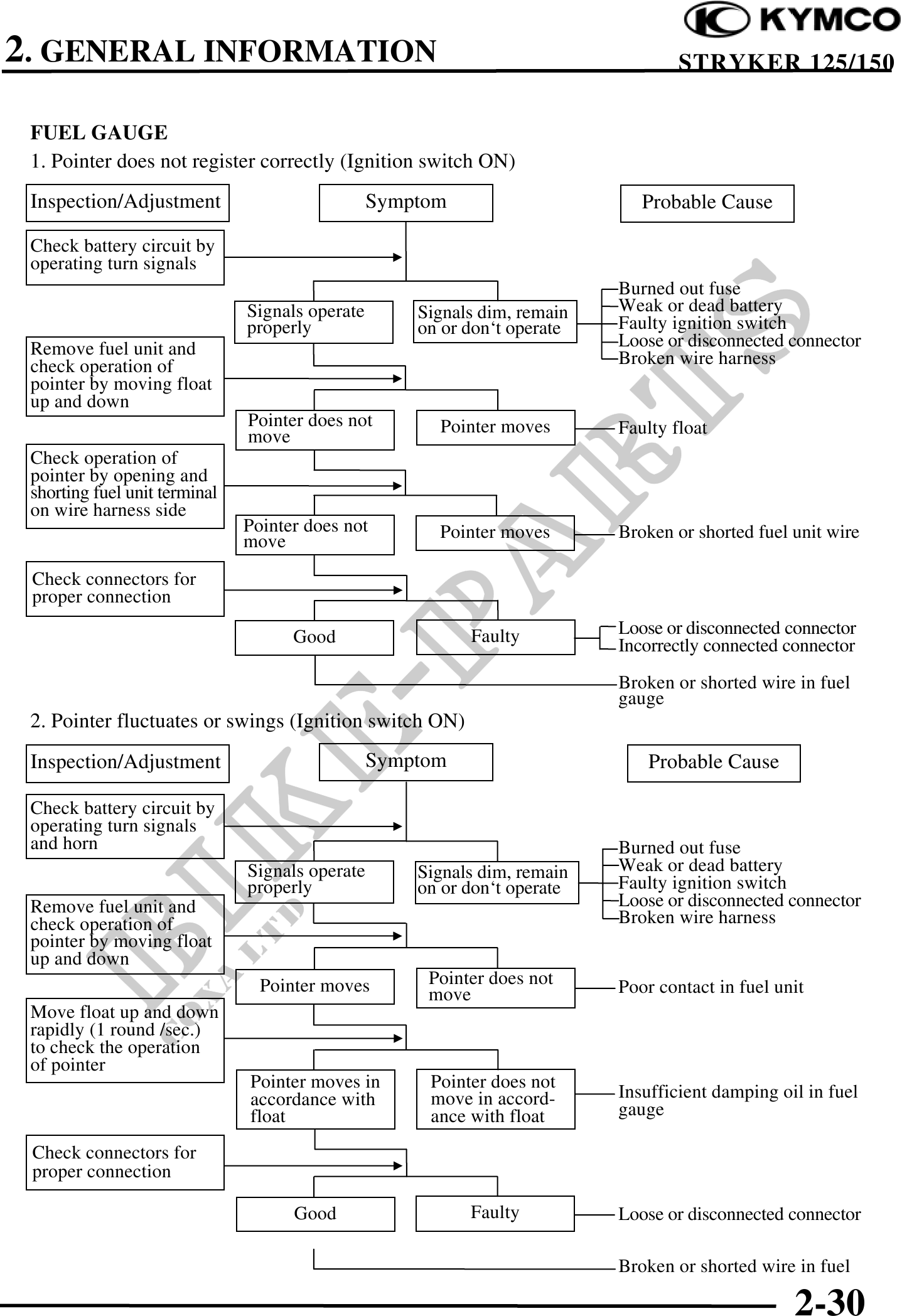

          2. GENERAL INFORMATION                                                             STRYKER 125/150

 FUEL GAUGE
 1. Pointer does not register correctly (Ignition switch ON)
 Inspection/Adjustment                           Symptom                      Probable Cause

 Check battery circuit by
 operating turn signals
                                                                           Burned out fuse
                               Signals operate       Signals dim, remain   Weak or dead battery
                               properly              on or don`t operate   Faulty ignition switch
 Remove fuel unit and                                                      Loose or disconnected connector
 check operation of                                                        Broken wire harness
 pointer by moving float
 up and down
                               Pointer does not        Pointer moves       Faulty float
                               move
 Check operation of
 pointer by opening and
 shorting fuel unit terminal
 on wire harness side
                               Pointer does not        Pointer moves       Broken or shorted fuel unit wire
                               move
 Check connectors for
 proper connection

                                     Good                  Faulty          Loose or disconnected connector
                                                                           Incorrectly connected connector
                                                                           Broken or shorted wire in fuel
                                                                           gauge
 2. Pointer fluctuates or swings (Ignition switch ON)
 Inspection/Adjustment                           Symptom                       Probable Cause

 Check battery circuit by
 operating turn signals
 and horn                                                                  Burned out fuse
                               Signals operate       Signals dim, remain   Weak or dead battery
                               properly              on or don`t operate   Faulty ignition switch
 Remove fuel unit and                                                      Loose or disconnected connector
 check operation of                                                        Broken wire harness
 pointer by moving float
 up and down
                                 Pointer moves        Pointer does not     Poor contact in fuel unit
                                                      move
 Move float up and down
 rapidly (1 round /sec.)
 to check the operation
 of pointer
                               Pointer moves in       Pointer does not
                               accordance with        move in accord-      Insufficient damping oil in fuel
                               float                  ance with float      gauge

 Check connectors for
 proper connection

                                     Good                  Faulty          Loose or disconnected connector

                                                                           Broken or shorted wire in fuel
