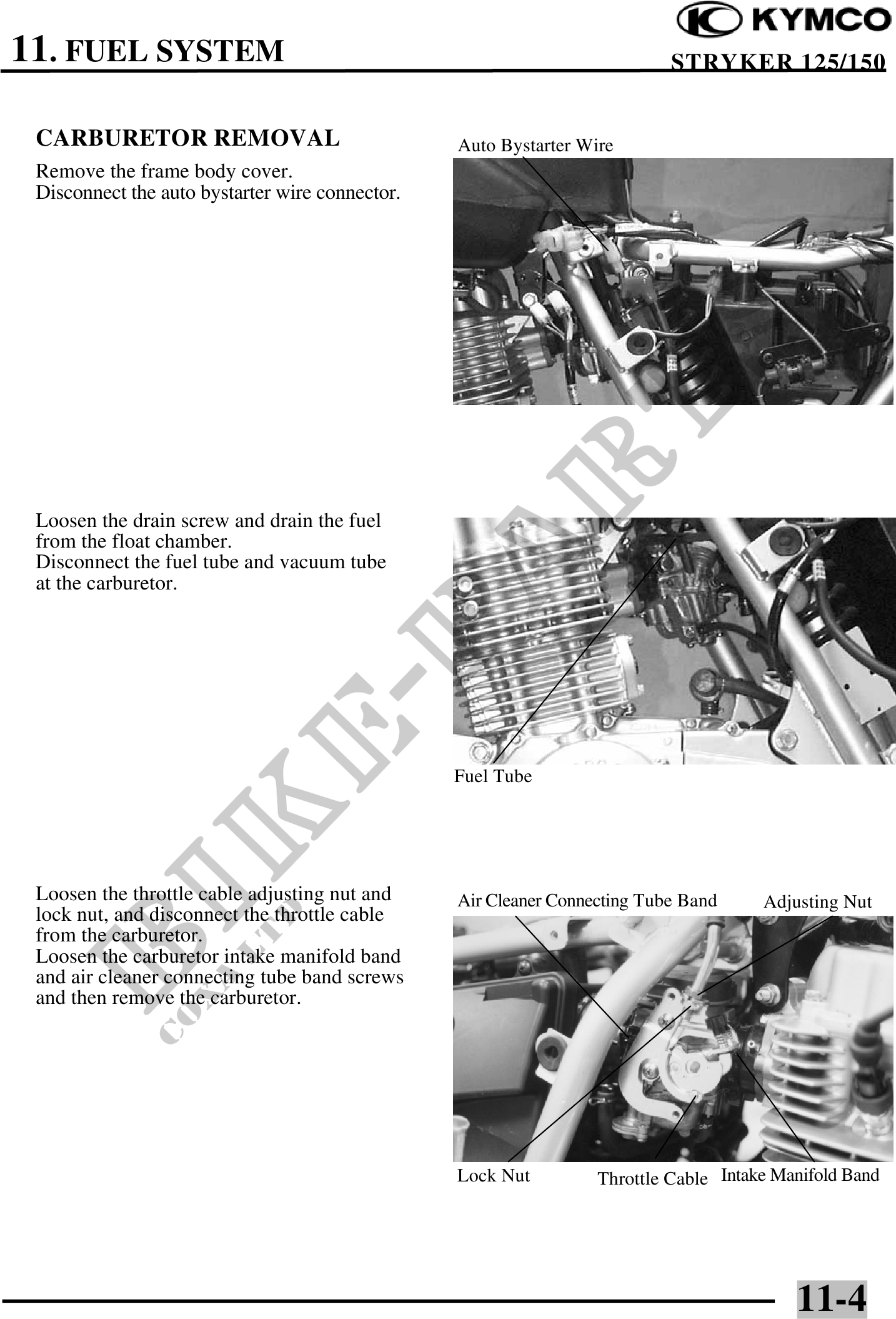

11. FUEL SYSTEM STRYKER 125/150
CARBURETOR REMOVAL Auto Bystarter Wire
Remove the frame body cover.
Disconnect the auto bystarter wire connector.
Loosen the drain screw and drain the fuel
from the float chamber.
Disconnect the fuel tube and vacuum tube
at the carburetor.
Fuel Tube
Loosen the throttle cable adjusting nut and Air Cleaner Connecting Tube Band Adjusting Nut
lock nut, and disconnect the throttle cable
from the carburetor.
Loosen the carburetor intake manifold band
and air cleaner connecting tube band screws
and then remove the carburetor.
Lock Nut Throttle Cable Intake Manifold Band
11-4
