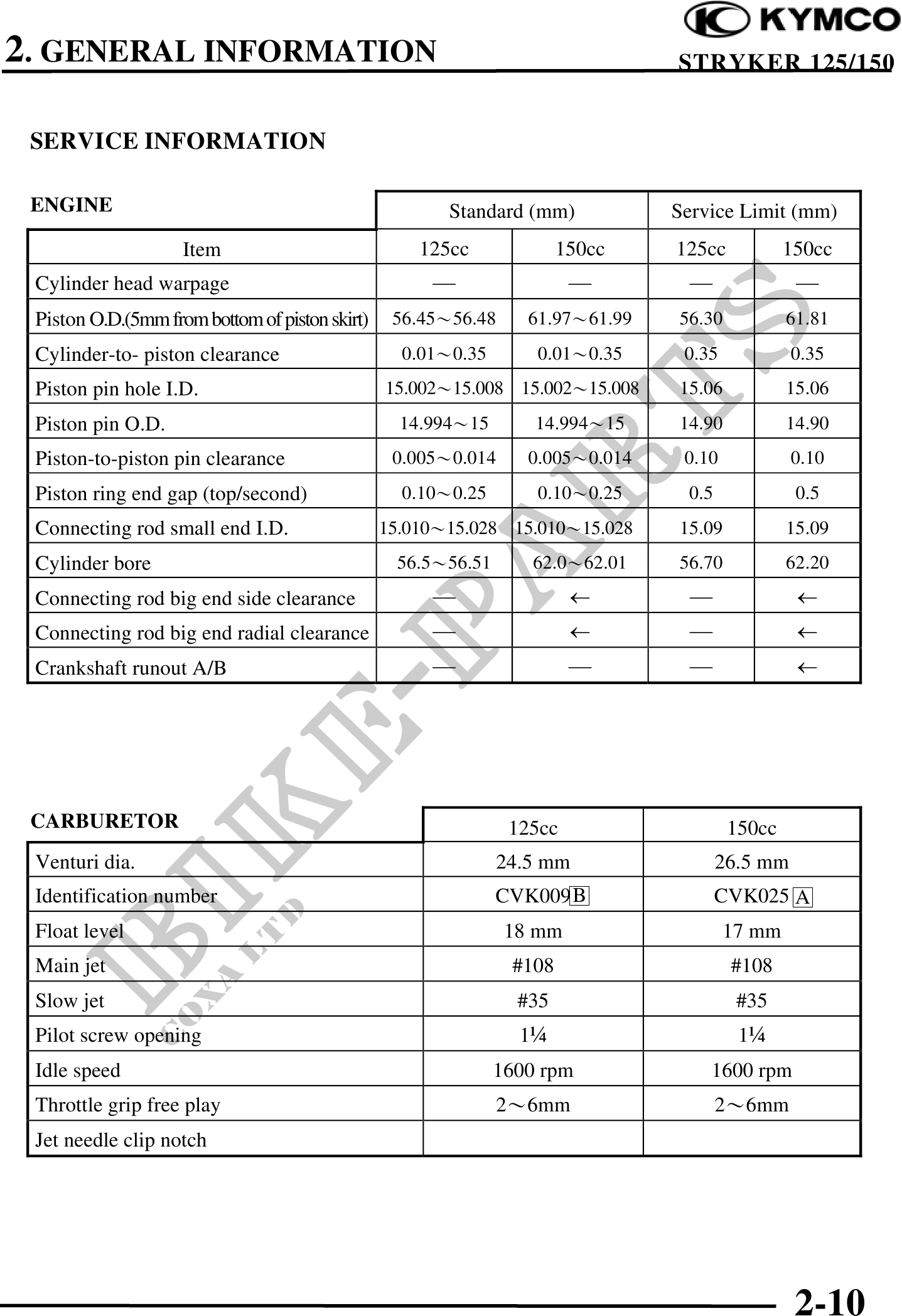

2. GENERAL INFORMATION STRYKER 125/150
SERVICE INFORMATION
ENGINE Standard (mm) Service Limit (mm)
Item 125cc 150cc 125cc 150cc
Cylinder head warpage
Piston O.D.(5mm from bottom of piston skirt) 56.4556.48 61.9761.99 56.30 61.81
Cylinder-to- piston clearance 0.010.35 0.010.35 0.35 0.35
Piston pin hole I.D. 15.00215.008 15.00215.008 15.06 15.06
Piston pin O.D. 14.99415 14.99415 14.90 14.90
Piston-to-piston pin clearance 0.0050.014 0.0050.014 0.10 0.10
Piston ring end gap (top/second) 0.100.25 0.100.25 0.5 0.5
Connecting rod small end I.D. 15.01015.028 15.01015.028 15.09 15.09
Cylinder bore 56.556.51 62.062.01 56.70 62.20
Connecting rod big end side clearance
Connecting rod big end radial clearance
Crankshaft runout A/B
CARBURETOR 125cc 150cc
Venturi dia. 24.5 mm 26.5 mm
Identification number CVK009 B CVK025 A
Float level 18 mm 17 mm
Main jet #108 #108
Slow jet #35 #35
Pilot screw opening 1 1
Idle speed 1600 rpm 1600 rpm
Throttle grip free play 26mm 26mm
Jet needle clip notch
2-10
