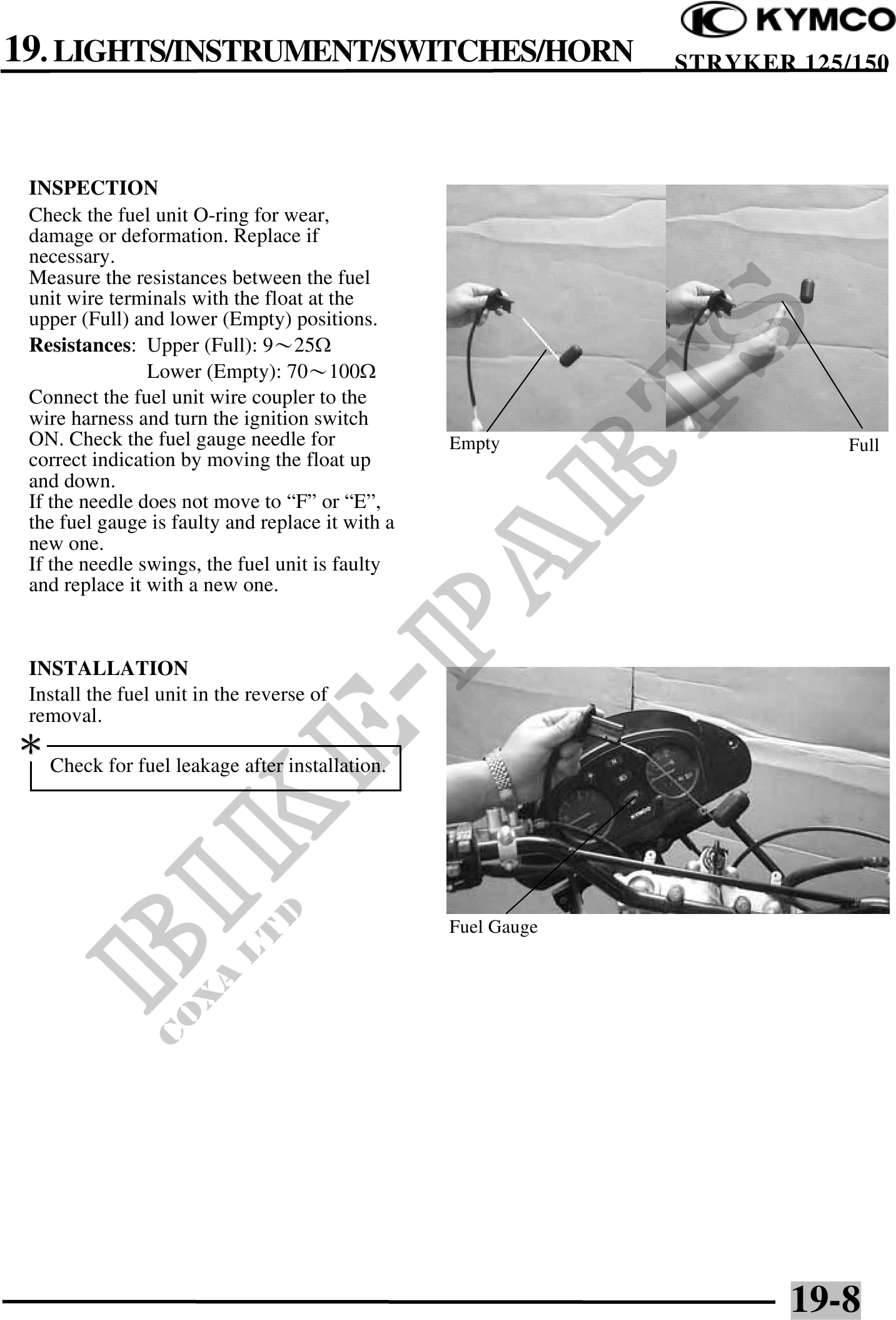

19. LIGHTS/INSTRUMENT/SWITCHES/HORN STRYKER 125/150
INSPECTION
Check the fuel unit O-ring for wear,
damage or deformation. Replace if
necessary.
Measure the resistances between the fuel
unit wire terminals with the float at the
upper (Full) and lower (Empty) positions.
Resistances: Upper (Full): 925
Lower (Empty): 70100
Connect the fuel unit wire coupler to the
wire harness and turn the ignition switch
ON. Check the fuel gauge needle for Empty Full
correct indication by moving the float up
and down.
If the needle does not move to "F" or "E",
the fuel gauge is faulty and replace it with a
new one.
If the needle swings, the fuel unit is faulty
and replace it with a new one.
INSTALLATION
Install the fuel unit in the reverse of
removal.
Check for fuel leakage after installation.
Fuel Gauge
19-8
