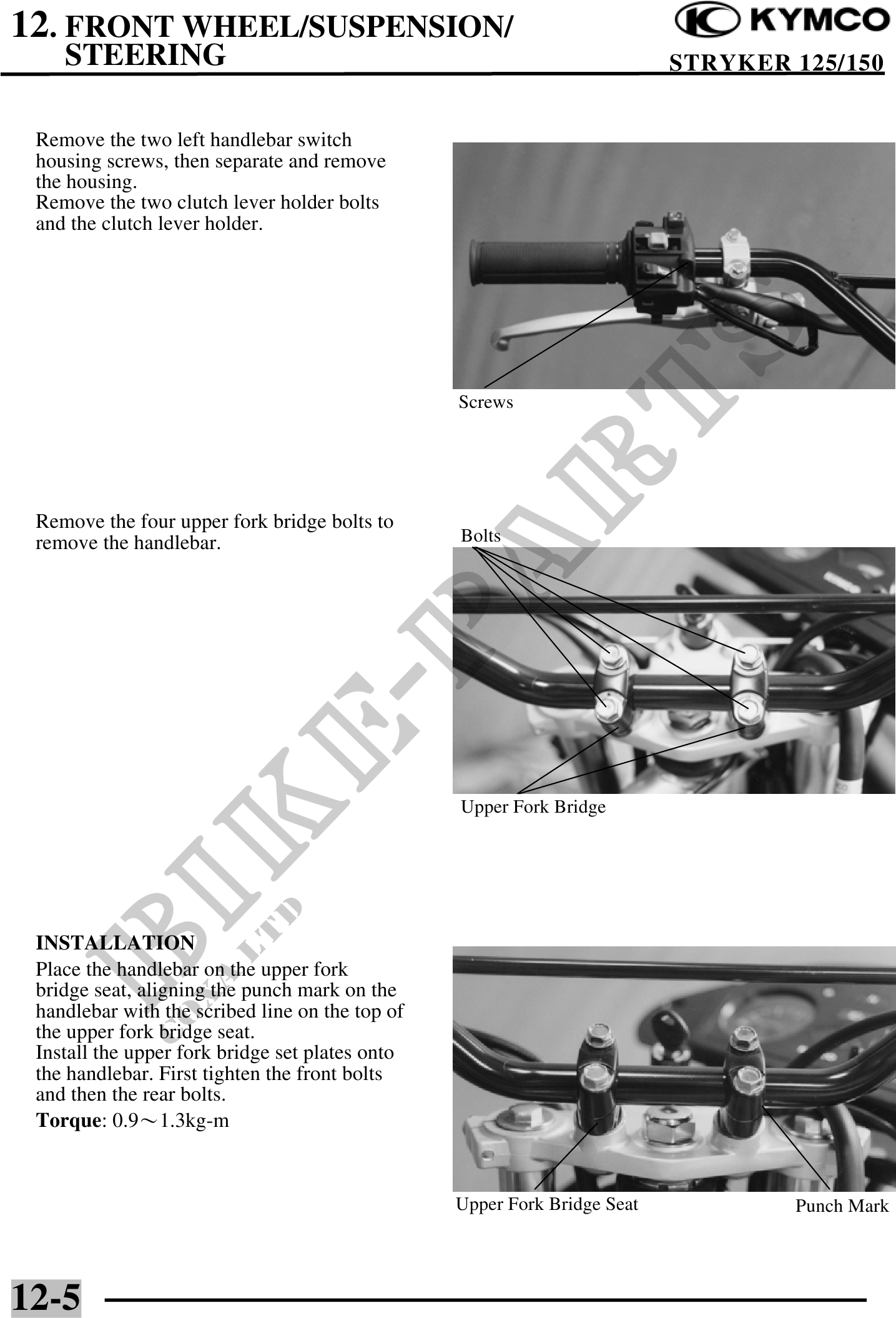

12. FRONT WHEEL/SUSPENSION/
STEERING STRYKER 125/150
Remove the two left handlebar switch
housing screws, then separate and remove
the housing.
Remove the two clutch lever holder bolts
and the clutch lever holder.
Screws
Remove the four upper fork bridge bolts to
remove the handlebar. Bolts
Upper Fork Bridge
INSTALLATION
Place the handlebar on the upper fork
bridge seat, aligning the punch mark on the
handlebar with the scribed line on the top of
the upper fork bridge seat.
Install the upper fork bridge set plates onto
the handlebar. First tighten the front bolts
and then the rear bolts.
Torque: 0.91.3kg-m
Upper Fork Bridge Seat Punch Mark
12-5
