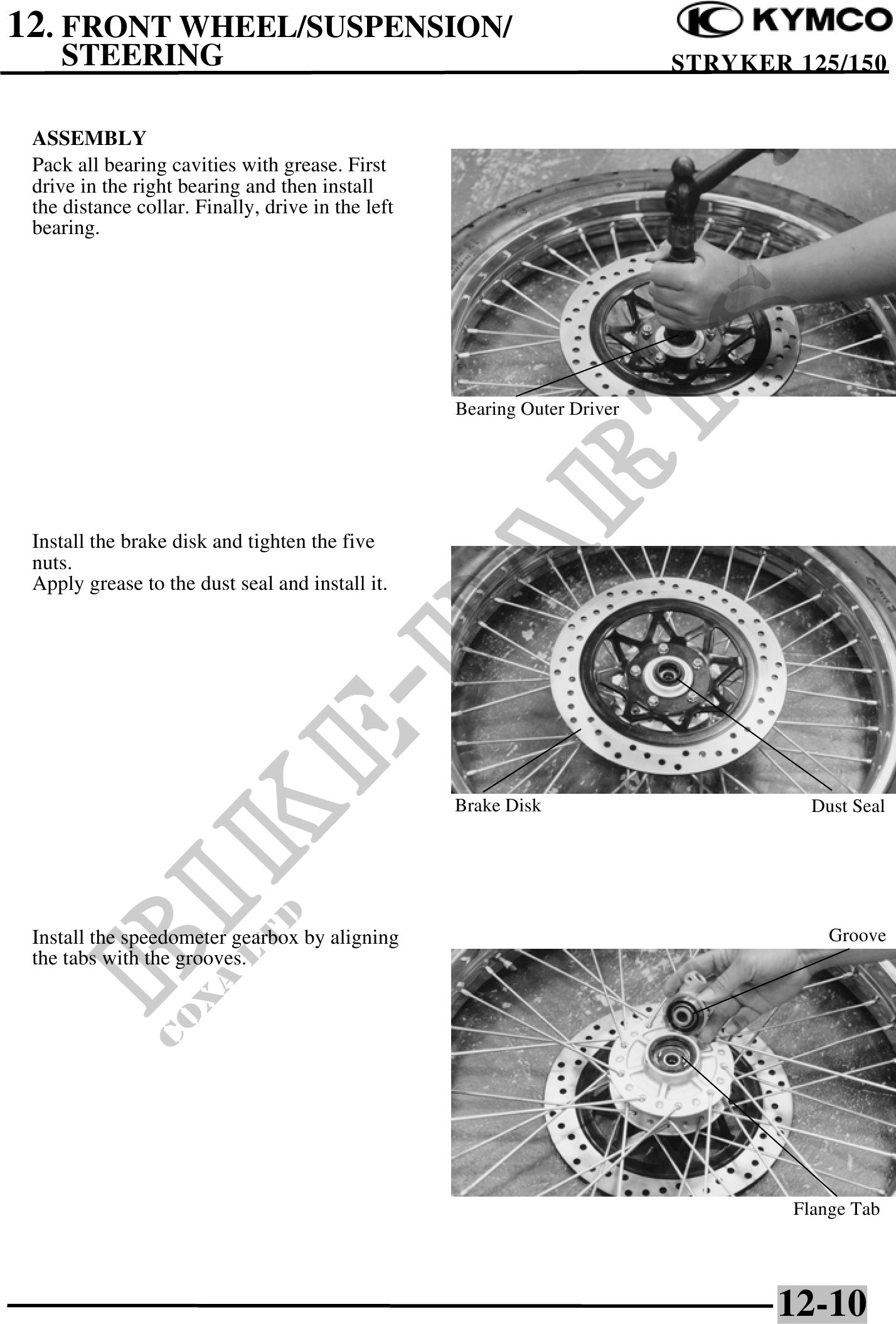

12. FRONT WHEEL/SUSPENSION/
STEERING STRYKER 125/150
ASSEMBLY
Pack all bearing cavities with grease. First
drive in the right bearing and then install
the distance collar. Finally, drive in the left
bearing.
Bearing Outer Driver
Install the brake disk and tighten the five
nuts.
Apply grease to the dust seal and install it.
Brake Disk Dust Seal
Install the speedometer gearbox by aligning Groove
the tabs with the grooves.
Flange Tab
12-10
