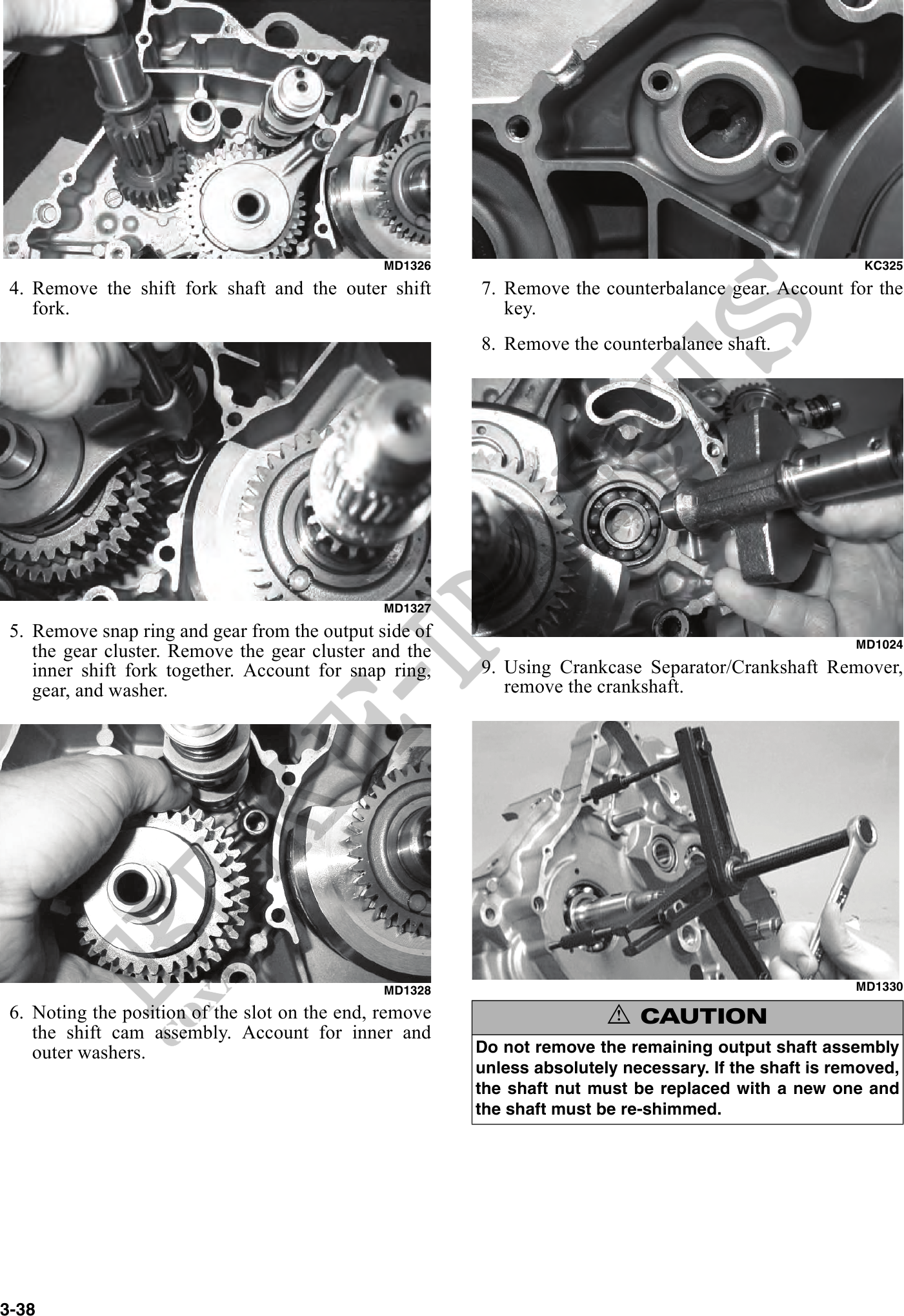

MD1326 KC325
4. Remove the shift fork shaft and the outer shift 7. Remove the counterbalance gear. Account for the
fork. key.
8. Remove the counterbalance shaft.
MD1327
5. Remove snap ring and gear from the output side of
the gear cluster. Remove the gear cluster and the MD1024
inner shift fork together. Account for snap ring, 9. Using Crankcase Separator/Crankshaft Remover,
gear, and washer. remove the crankshaft.
MD1328 MD1330
6. Noting the position of the slot on the end, remove ! CAUTION
the shift cam assembly. Account for inner and
outer washers. Do not remove the remaining output shaft assembly
unless absolutely necessary. If the shaft is removed,
the shaft nut must be replaced with a new one and
the shaft must be re-shimmed.
3-38
