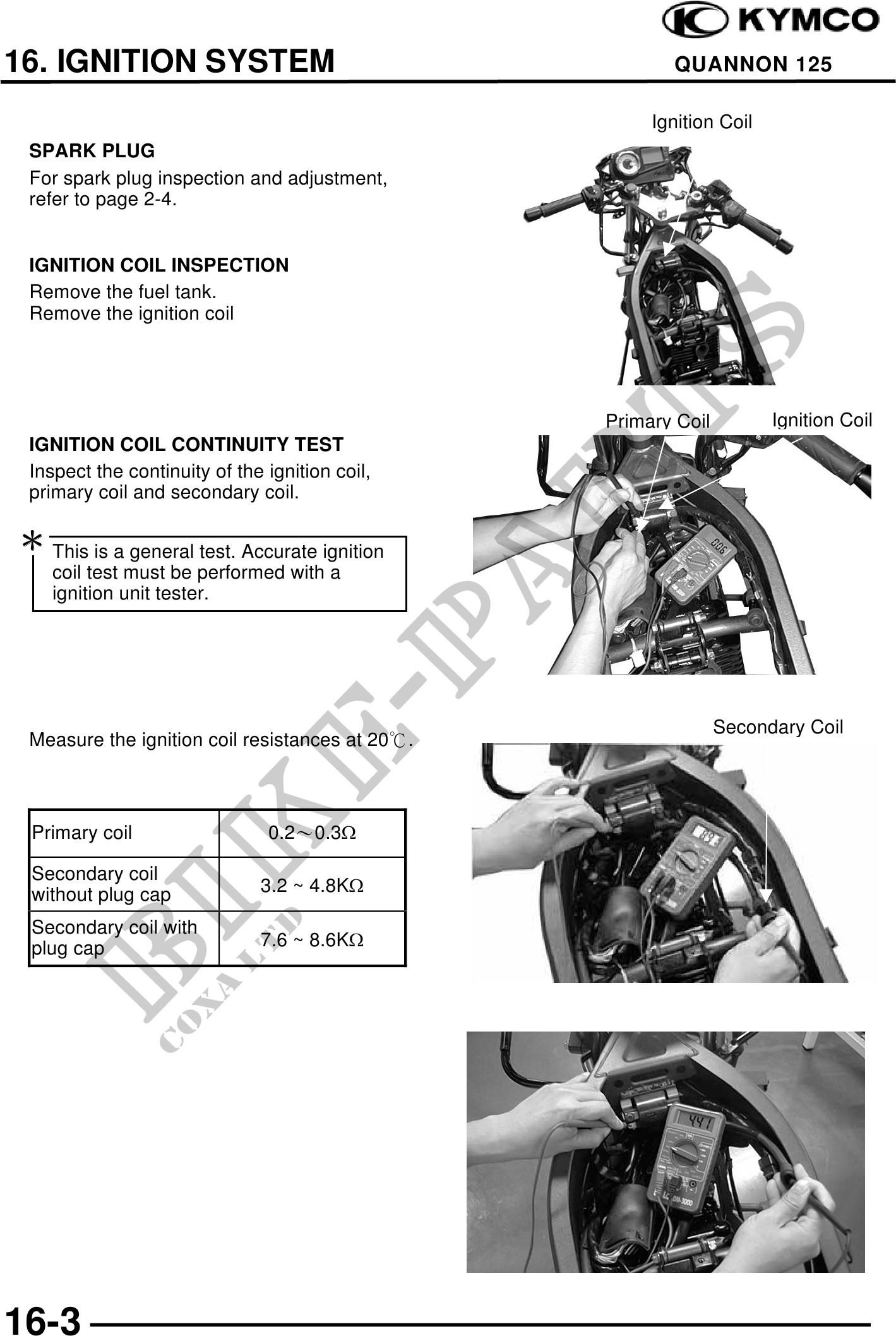

16. IGNITION SYSTEM QUANNON 125
Ignition Coil
SPARK PLUG
For spark plug inspection and adjustment,
refer to page 2-4.
IGNITION COIL INSPECTION
Remove the fuel tank.
Remove the ignition coil
Primary Coil Ignition Coil
IGNITION COIL CONTINUITY TEST
Inspect the continuity of the ignition coil,
primary coil and secondary coil.
This is a general test. Accurate ignition
coil test must be performed with a
ignition unit tester.
Secondary Coil
Measure the ignition coil resistances at 20.
Primary coil 0.20.3
Secondary coil
without plug cap 3.2 ~ 4.8K
Secondary coil with
plug cap 7.6 ~ 8.6K
16-3
