          16. IGNITION SYSTEM                                                             QUANNON 125



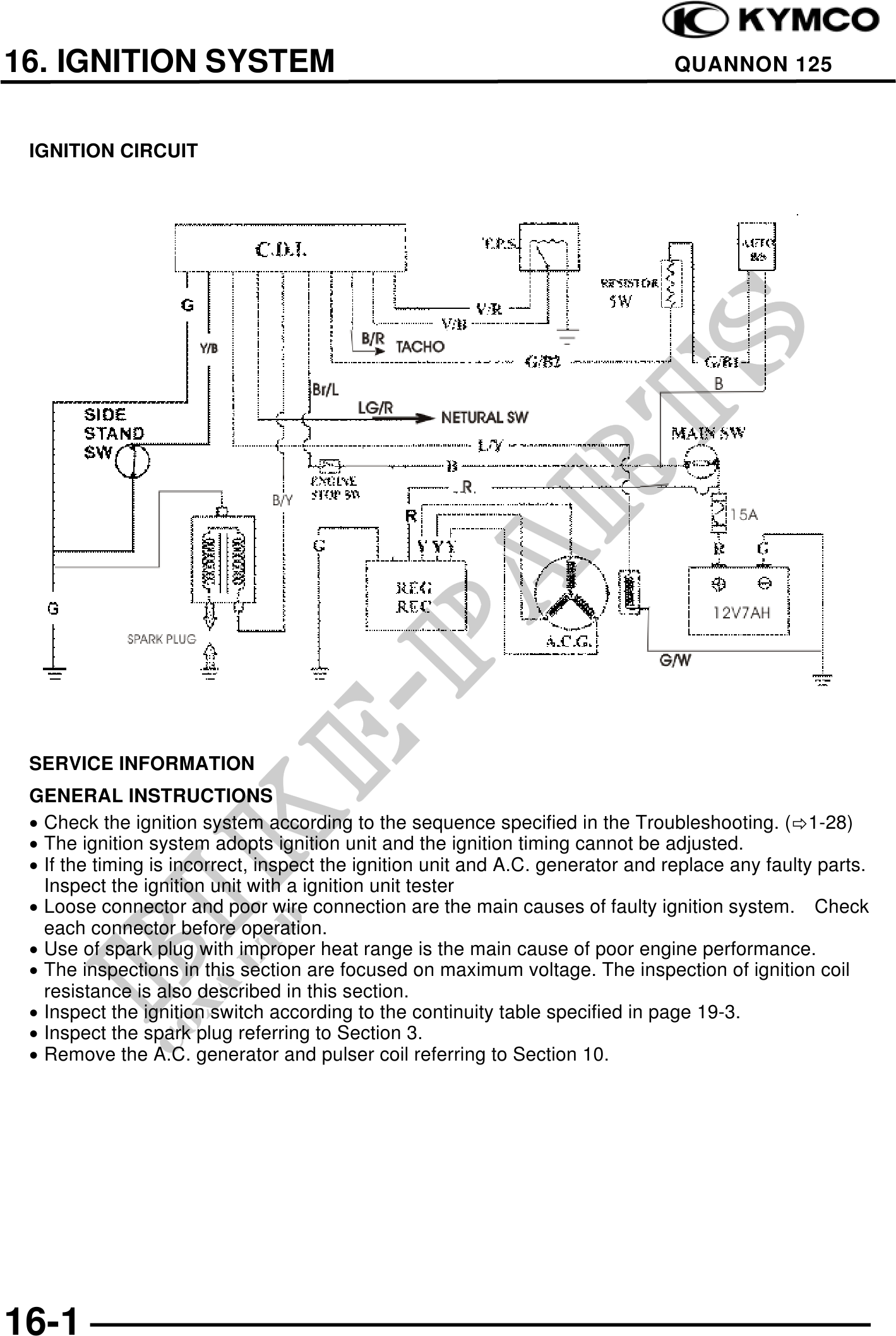

 IGNITION CIRCUIT




 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · Check the ignition system according to the sequence specified in the Troubleshooting. ( 1-28)
 · The ignition system adopts ignition unit and the ignition timing cannot be adjusted.
 · If the timing is incorrect, inspect the ignition unit and A.C. generator and replace any faulty parts.
   Inspect the ignition unit with a ignition unit tester
 · Loose connector and poor wire connection are the main causes of faulty ignition system. Check
   each connector before operation.
 · Use of spark plug with improper heat range is the main cause of poor engine performance.
 · The inspections in this section are focused on maximum voltage. The inspection of ignition coil
   resistance is also described in this section.
 · Inspect the ignition switch according to the continuity table specified in page 19-3.
 · Inspect the spark plug referring to Section 3.
 · Remove the A.C. generator and pulser coil referring to Section 10.




16-1
