          17. STARTING SYSTEM                                                           QUANNON 125

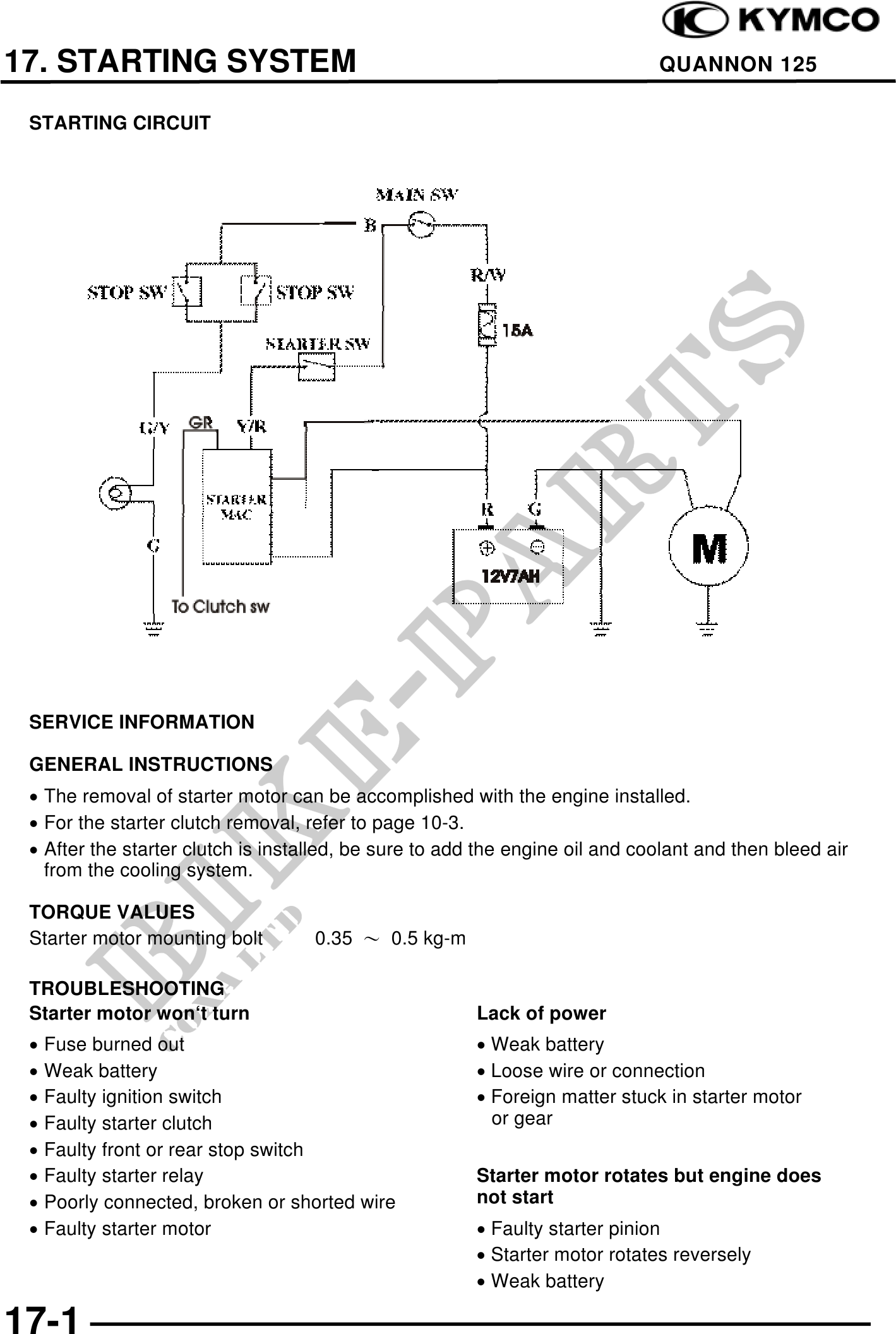

 STARTING CIRCUIT




 SERVICE INFORMATION

 GENERAL INSTRUCTIONS
 · The removal of starter motor can be accomplished with the engine installed.
 · For the starter clutch removal, refer to page 10-3.
 · After the starter clutch is installed, be sure to add the engine oil and coolant and then bleed air
   from the cooling system.

 TORQUE VALUES
 Starter motor mounting bolt        0.35  0.5 kg-m

 TROUBLESHOOTING
 Starter motor won`t turn                               Lack of power
 ·   Fuse burned out                                    · Weak battery
 ·   Weak battery                                       · Loose wire or connection
 ·   Faulty ignition switch                             · Foreign matter stuck in starter motor
 ·   Faulty starter clutch                                or gear
 ·   Faulty front or rear stop switch
 ·   Faulty starter relay                               Starter motor rotates but engine does
 ·   Poorly connected, broken or shorted wire           not start
 ·   Faulty starter motor                               · Faulty starter pinion
                                                        · Starter motor rotates reversely
                                                        · Weak battery

17-1
