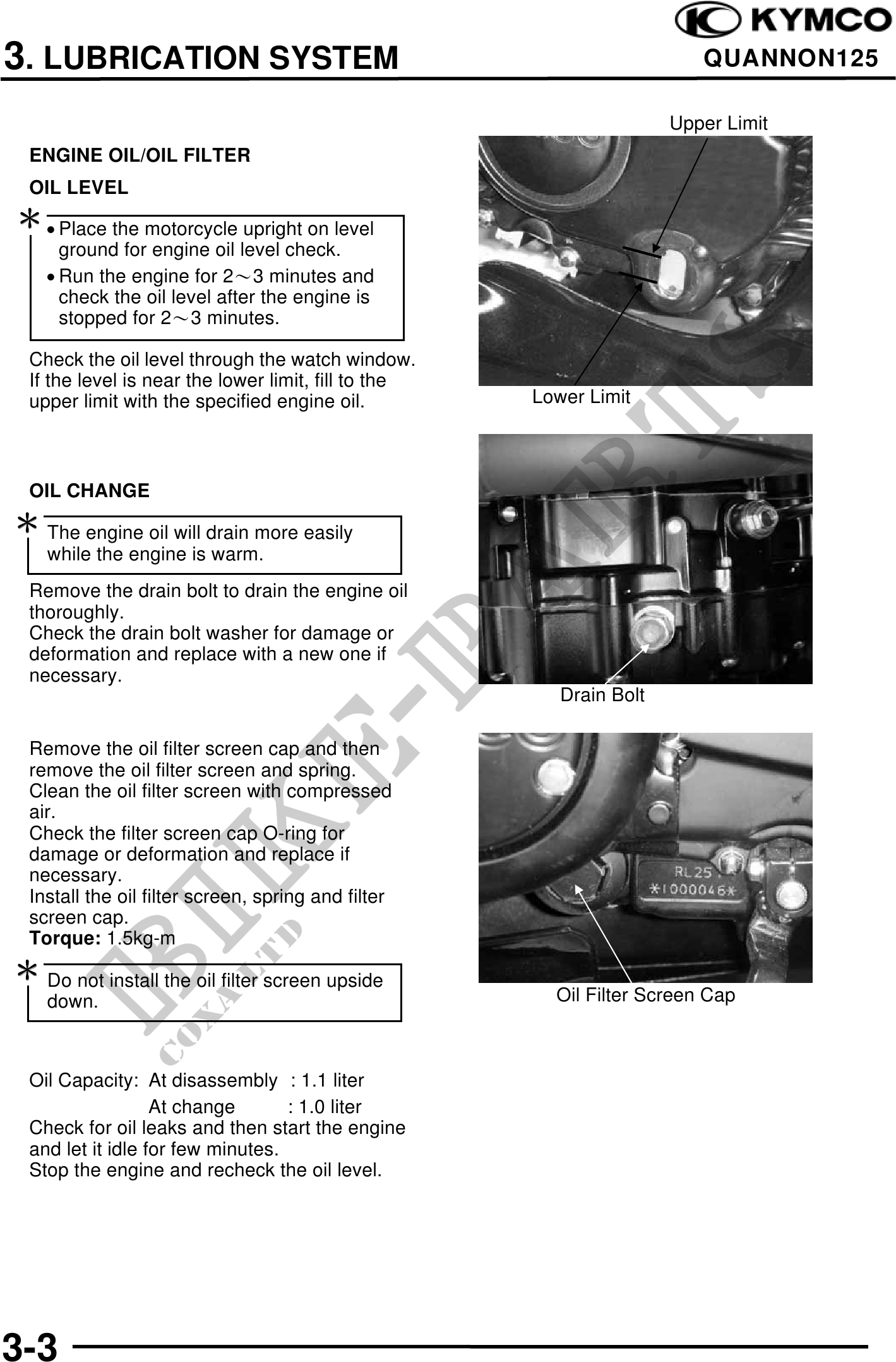

          3. LUBRICATION SYSTEM                                                    QUANNON125

                                                                      Upper Limit
  ENGINE OIL/OIL FILTER
  OIL LEVEL
· Place the motorcycle upright on level
      ground for engine oil level check.
    · Run the engine for 23 minutes and
      check the oil level after the engine is
      stopped for 23 minutes.

  Check the oil level through the watch window.
  If the level is near the lower limit, fill to the
  upper limit with the specified engine oil.          Lower Limit



  OIL CHANGE
 The engine oil will drain more easily
    while the engine is warm.
  Remove the drain bolt to drain the engine oil
  thoroughly.
  Check the drain bolt washer for damage or
  deformation and replace with a new one if
  necessary.
                                                         Drain Bolt

  Remove the oil filter screen cap and then
  remove the oil filter screen and spring.
  Clean the oil filter screen with compressed
  air.
  Check the filter screen cap O-ring for
  damage or deformation and replace if
  necessary.
  Install the oil filter screen, spring and filter
  screen cap.
  Torque: 1.5kg-m
 Do not install the oil filter screen upside
    down.                                               Oil Filter Screen Cap



  Oil Capacity: At disassembly : 1.1 liter
                   At change       : 1.0 liter
  Check for oil leaks and then start the engine
  and let it idle for few minutes.
  Stop the engine and recheck the oil level.




3-3
