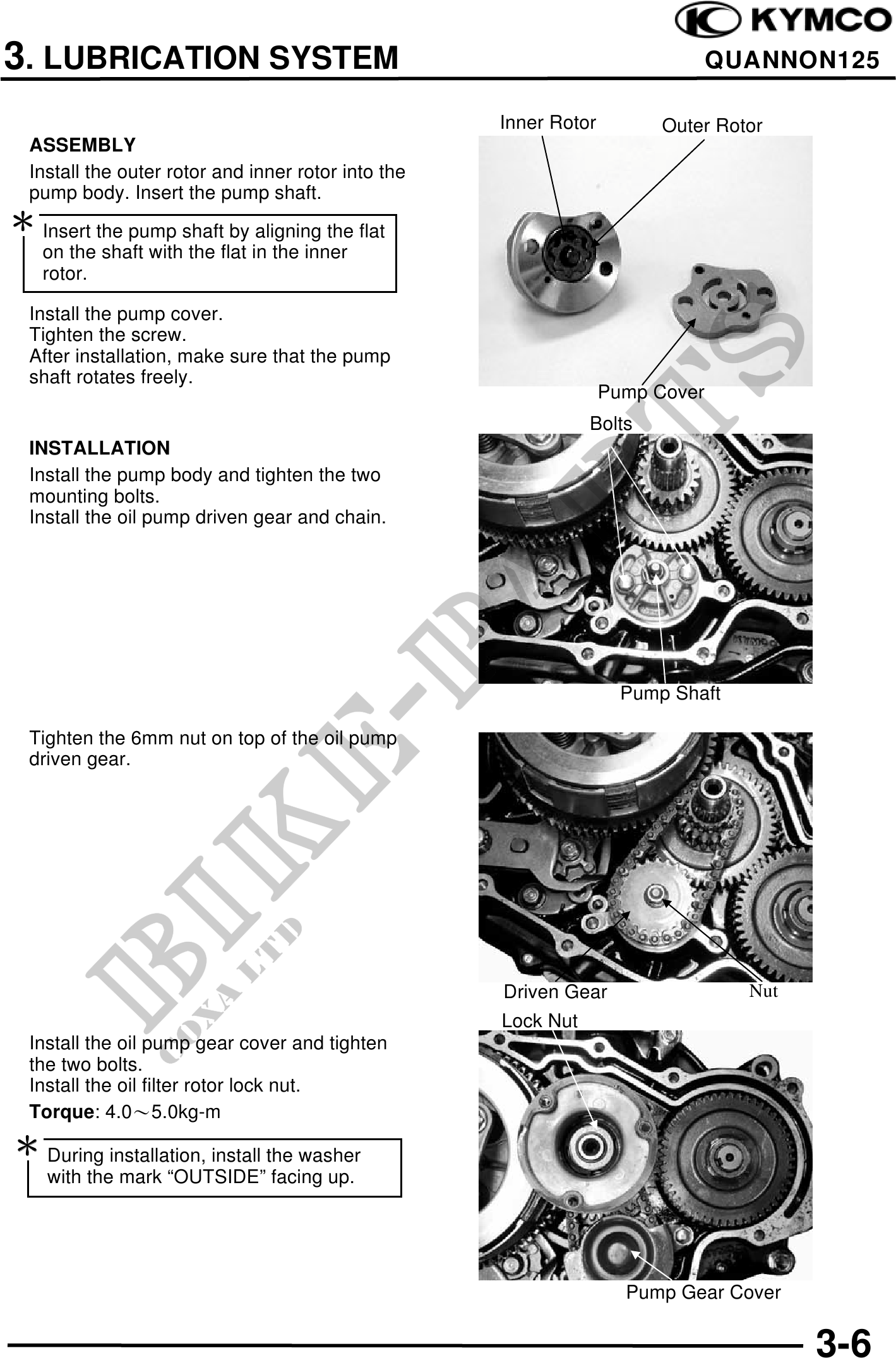

          3. LUBRICATION SYSTEM                                                           QUANNON125

                                                     Inner Rotor         Outer Rotor
  ASSEMBLY
  Install the outer rotor and inner rotor into the
  pump body. Insert the pump shaft.
 Insert the pump shaft by aligning the flat
    on the shaft with the flat in the inner
    rotor.

  Install the pump cover.
  Tighten the screw.
  After installation, make sure that the pump
  shaft rotates freely.
                                                                   Pump Cover
                                                                Bolts
  INSTALLATION
  Install the pump body and tighten the two
  mounting bolts.
  Install the oil pump driven gear and chain.




                                                                     Pump Shaft

  Tighten the 6mm nut on top of the oil pump
  driven gear.




                                                     Driven Gear                  Nut
                                                     Lock Nut
  Install the oil pump gear cover and tighten
  the two bolts.
  Install the oil filter rotor lock nut.
  Torque: 4.05.0kg-m
 During installation, install the washer
    with the mark "OUTSIDE" facing up.




                                                                     Pump Gear Cover


                                                                                        3-6
