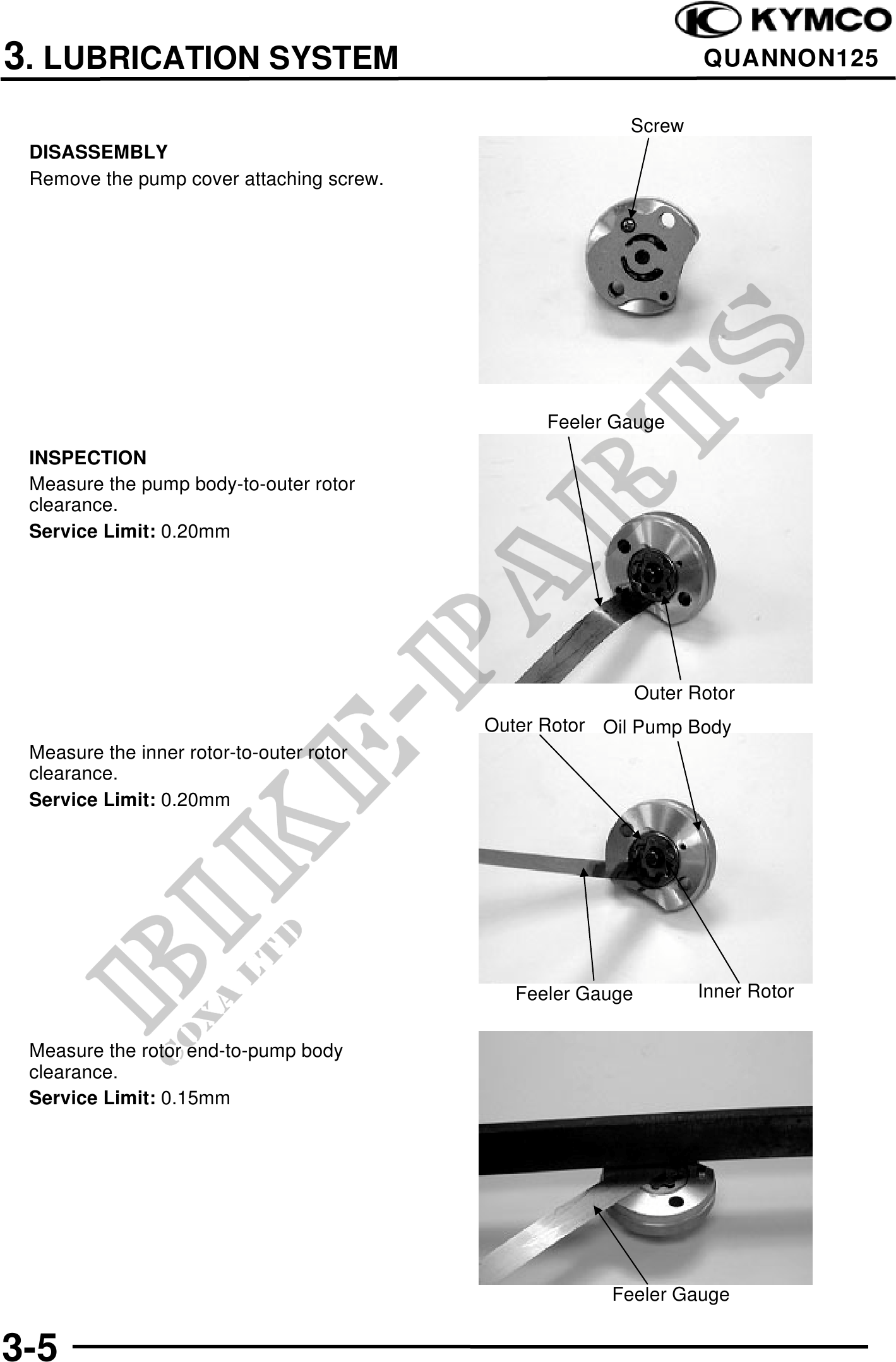

          3. LUBRICATION SYSTEM                                              QUANNON125

                                                        Screw
 DISASSEMBLY
 Remove the pump cover attaching screw.




                                                Feeler Gauge
 INSPECTION
 Measure the pump body-to-outer rotor
 clearance.
 Service Limit: 0.20mm




                                                            Outer Rotor
                                          Outer Rotor Oil Pump Body
 Measure the inner rotor-to-outer rotor
 clearance.
 Service Limit: 0.20mm




                                             Feeler Gauge         Inner Rotor


 Measure the rotor end-to-pump body
 clearance.
 Service Limit: 0.15mm




                                                      Feeler Gauge


3-5
