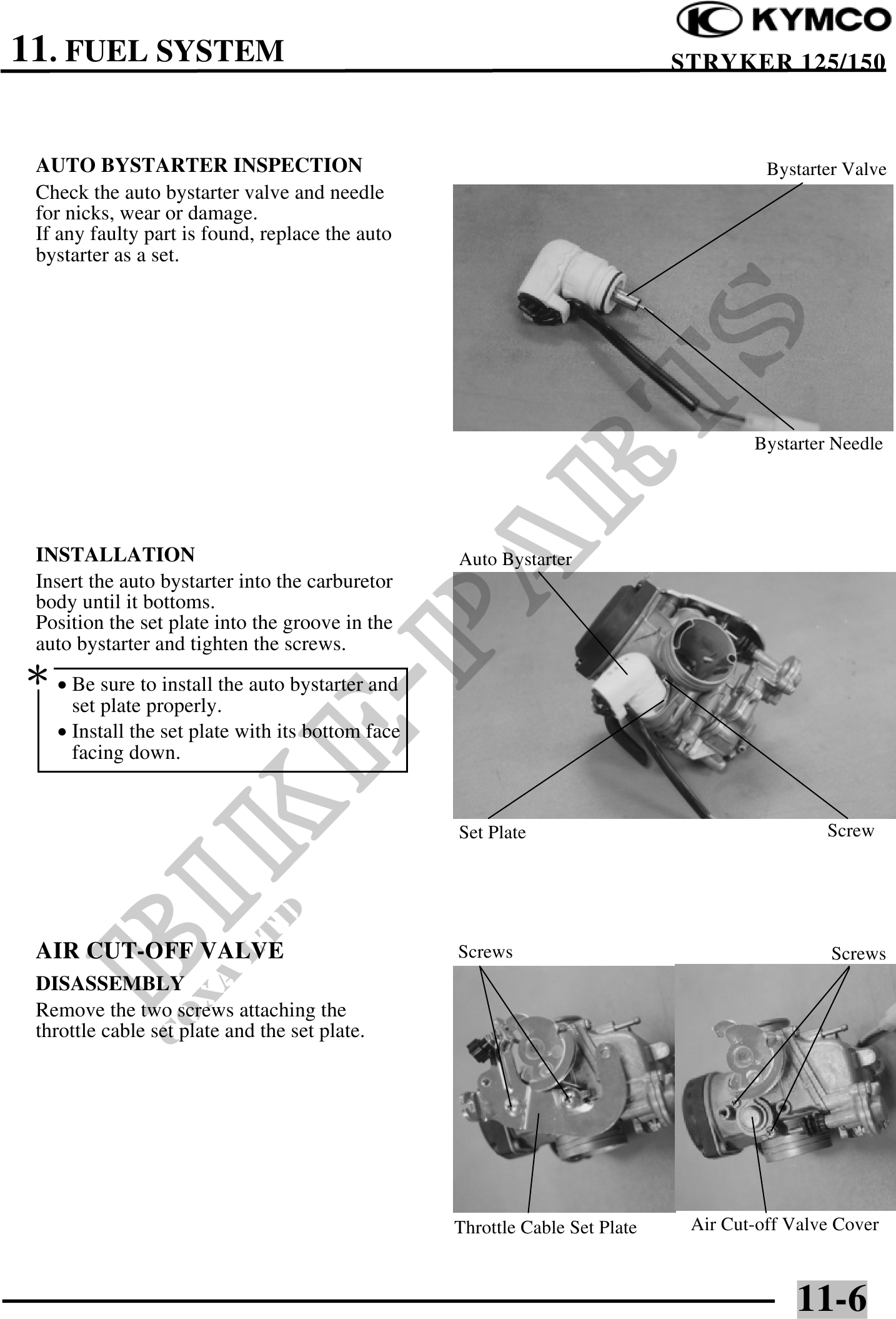

11. FUEL SYSTEM STRYKER 125/150
AUTO BYSTARTER INSPECTION Bystarter Valve
Check the auto bystarter valve and needle
for nicks, wear or damage.
If any faulty part is found, replace the auto
bystarter as a set.
Bystarter Needle
INSTALLATION Auto Bystarter
Insert the auto bystarter into the carburetor
body until it bottoms.
Position the set plate into the groove in the
auto bystarter and tighten the screws.
· Be sure to install the auto bystarter and
set plate properly.
· Install the set plate with its bottom face
facing down.
Set Plate Screw
AIR CUT-OFF VALVE Screws Screws
DISASSEMBLY
Remove the two screws attaching the
throttle cable set plate and the set plate.
Throttle Cable Set Plate Air Cut-off Valve Cover
11-6
