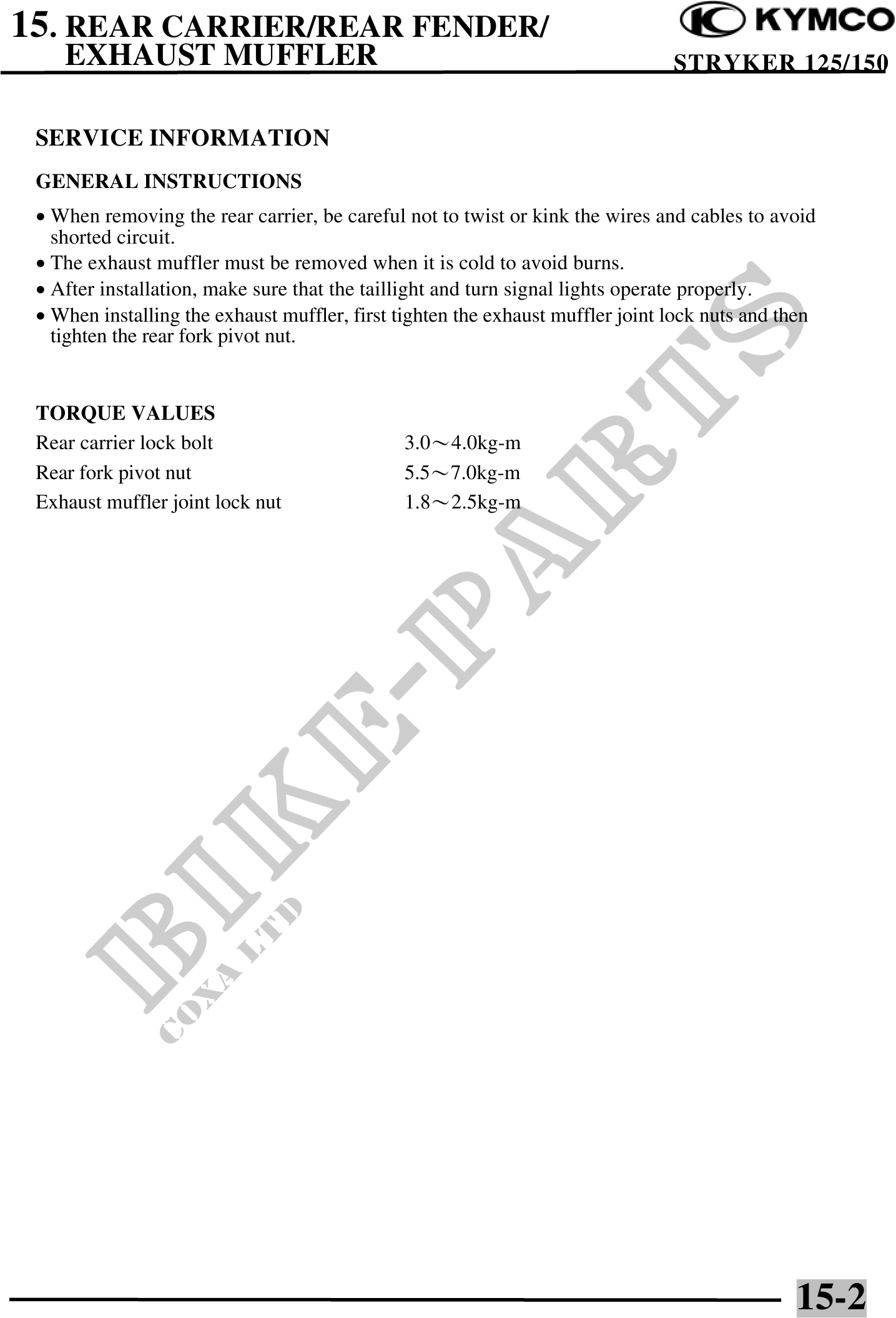

15. REAR CARRIER/REAR FENDER/
EXHAUST MUFFLER STRYKER 125/150
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· When removing the rear carrier, be careful not to twist or kink the wires and cables to avoid
shorted circuit.
· The exhaust muffler must be removed when it is cold to avoid burns.
· After installation, make sure that the taillight and turn signal lights operate properly.
· When installing the exhaust muffler, first tighten the exhaust muffler joint lock nuts and then
tighten the rear fork pivot nut.
TORQUE VALUES
Rear carrier lock bolt 3.04.0kg-m
Rear fork pivot nut 5.57.0kg-m
Exhaust muffler joint lock nut 1.82.5kg-m
15-2
