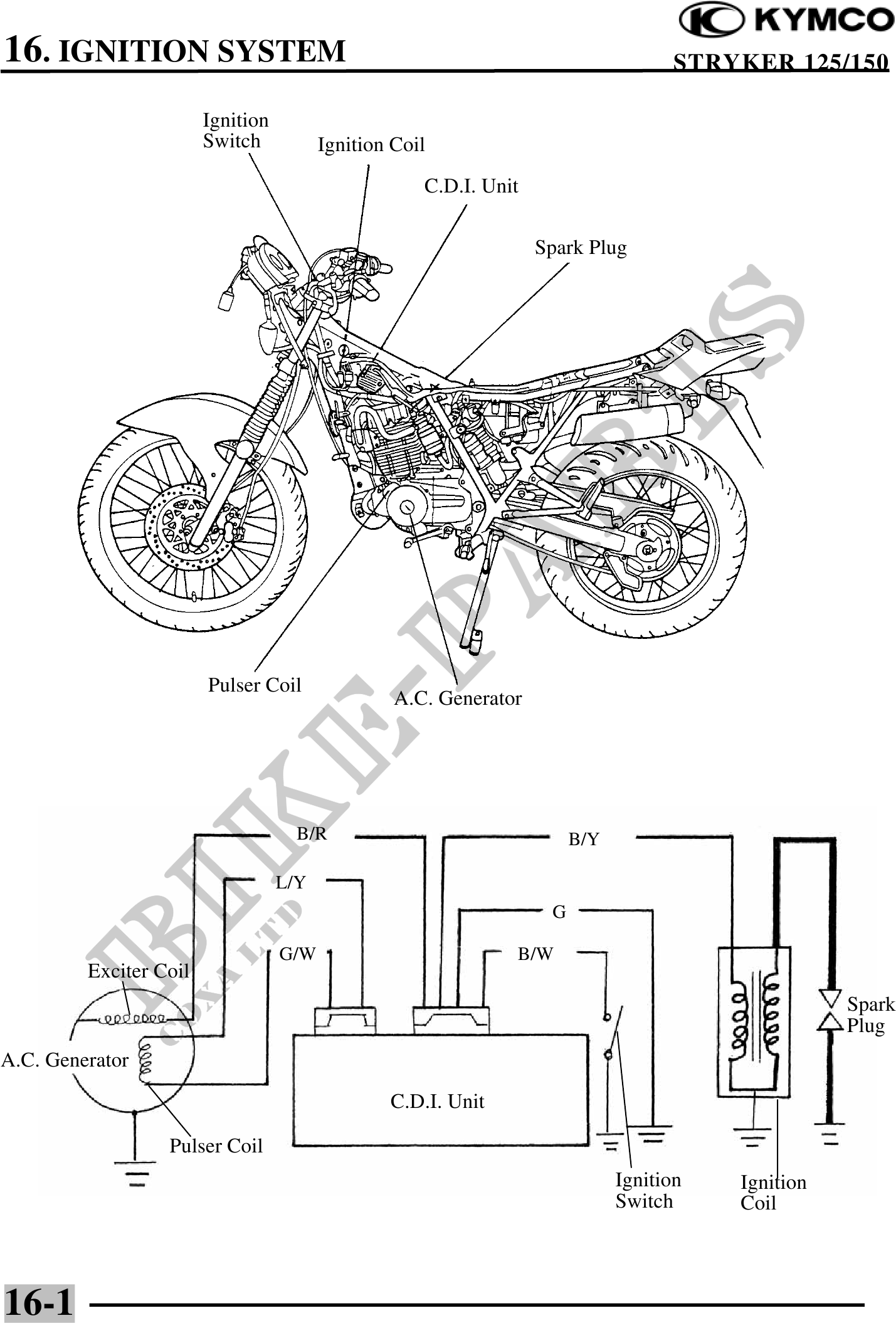

          16. IGNITION SYSTEM                                                                  STRYKER 125/150

                        Ignition
                        Switch           Ignition Coil
                                                     C.D.I. Unit

                                                                   Spark Plug




                        Pulser Coil
                                                  A.C. Generator




                                     B/R                                B/Y

                                   L/Y
                                                                    G

                                   G/W                         B/W
         Exciter Coil
                                                                                                    Spark
                                                                                                    Plug
A.C. Generator

                                                 C.D.I. Unit

                  Pulser Coil
                                                                              Ignition   Ignition
                                                                              Switch     Coil
