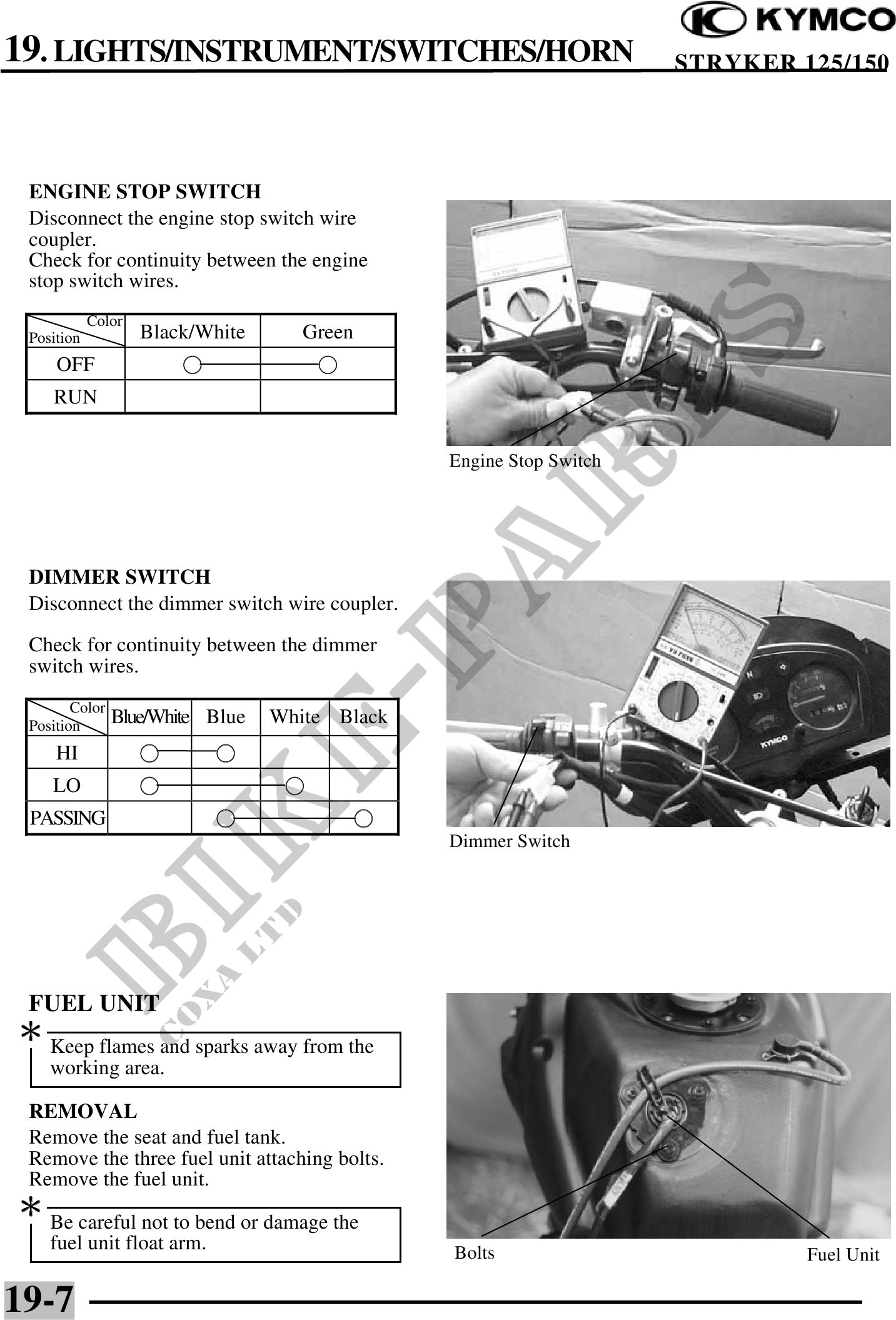

19. LIGHTS/INSTRUMENT/SWITCHES/HORN STRYKER 125/150
ENGINE STOP SWITCH
Disconnect the engine stop switch wire
coupler.
Check for continuity between the engine
stop switch wires.
Color
Position Black/White Green
OFF
RUN
Engine Stop Switch
DIMMER SWITCH
Disconnect the dimmer switch wire coupler.
Check for continuity between the dimmer
switch wires.
Color
Position Blue/White Blue White Black
HI
LO
PASSING
Dimmer Switch
FUEL UNIT
Keep flames and sparks away from the
working area.
REMOVAL
Remove the seat and fuel tank.
Remove the three fuel unit attaching bolts.
Remove the fuel unit.
Be careful not to bend or damage the
fuel unit float arm. Bolts Fuel Unit
19-7
