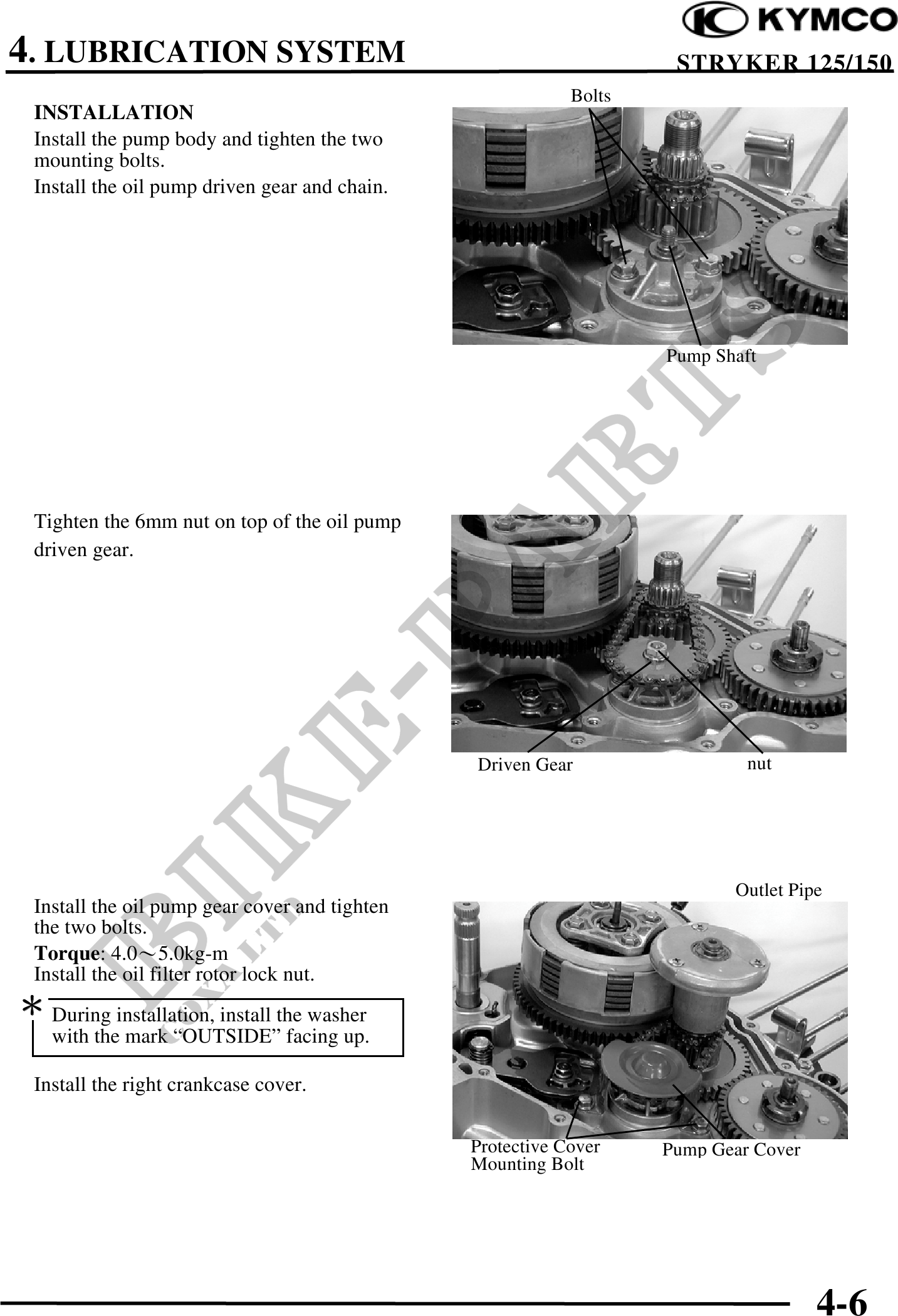

4. LUBRICATION SYSTEM STRYKER 125/150
Bolts
INSTALLATION
Install the pump body and tighten the two
mounting bolts.
Install the oil pump driven gear and chain.
Pump Shaft
Tighten the 6mm nut on top of the oil pump
driven gear.
Driven Gear nut
Outlet Pipe
Install the oil pump gear cover and tighten
the two bolts.
Torque: 4.05.0kg-m
Install the oil filter rotor lock nut.
During installation, install the washer
with the mark "OUTSIDE" facing up.
Install the right crankcase cover.
Protective Cover Pump Gear Cover
Mounting Bolt
4-6
