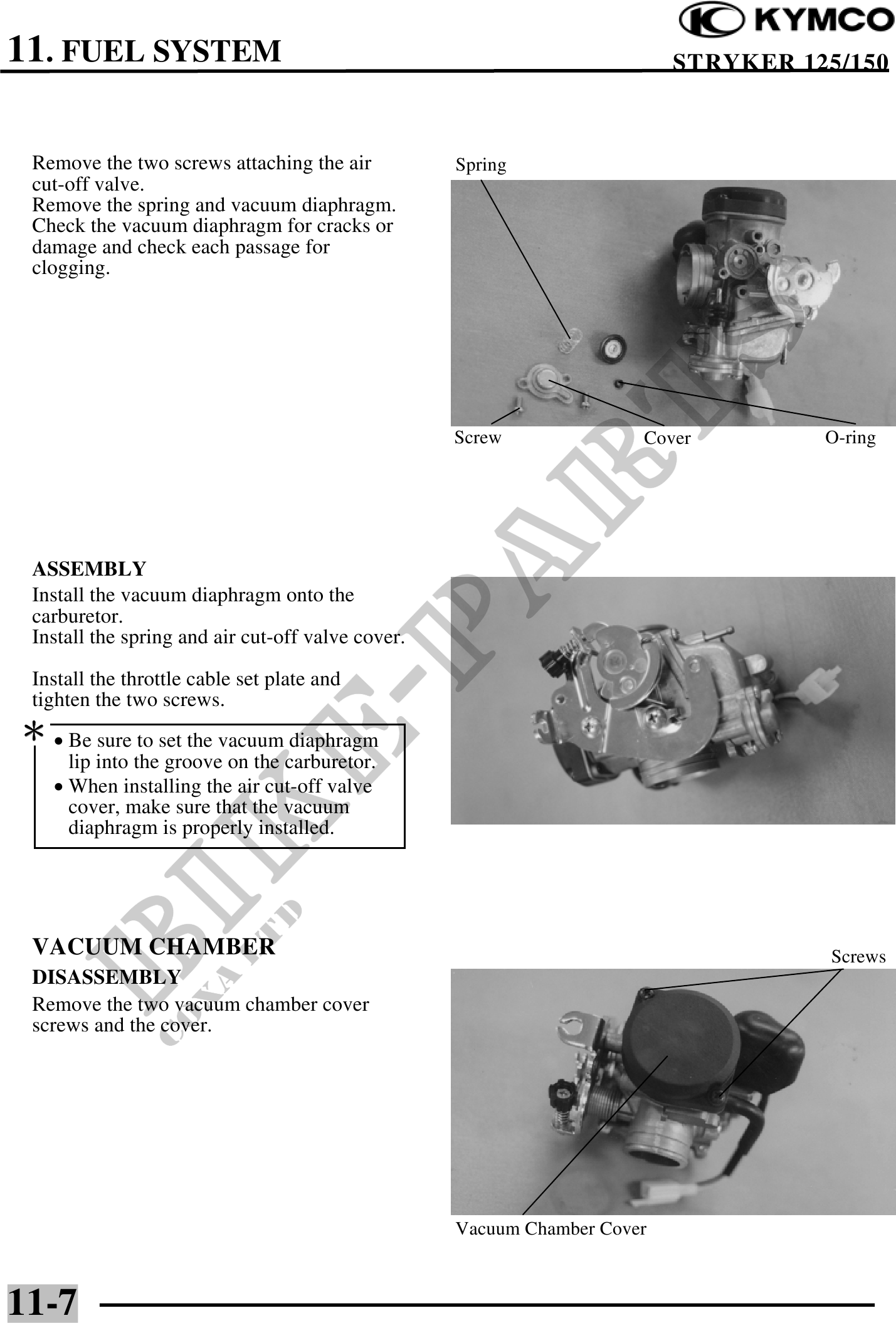

11. FUEL SYSTEM STRYKER 125/150
Remove the two screws attaching the air Spring
cut-off valve.
Remove the spring and vacuum diaphragm.
Check the vacuum diaphragm for cracks or
damage and check each passage for
clogging.
Screw Cover O-ring
ASSEMBLY
Install the vacuum diaphragm onto the
carburetor.
Install the spring and air cut-off valve cover.
Install the throttle cable set plate and
tighten the two screws.
· Be sure to set the vacuum diaphragm
lip into the groove on the carburetor.
· When installing the air cut-off valve
cover, make sure that the vacuum
diaphragm is properly installed.
VACUUM CHAMBER Screws
DISASSEMBLY
Remove the two vacuum chamber cover
screws and the cover.
Vacuum Chamber Cover
11-7
